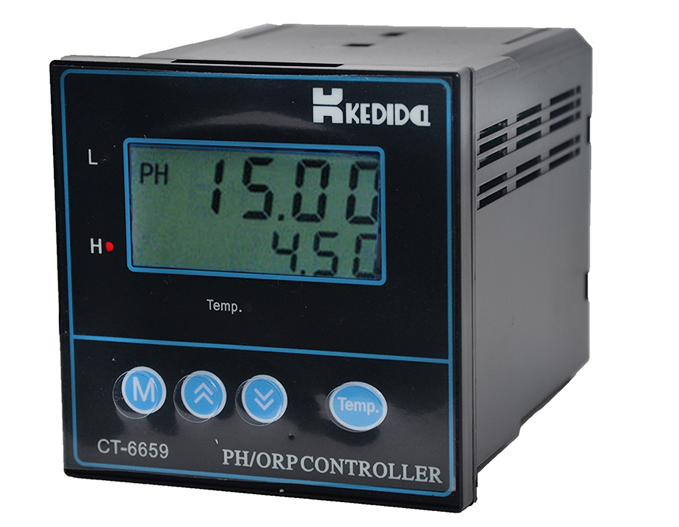

KODIDA CT-6659 Industrial pH meter with electrode CT-1001C
Kodida CT-6659 industrial pH meter has pH and oxidation reduction functions, suitable for Eletroplating plants, circuit board plants, fermentation, Food processing, etc. CT-6659 industrial pH meter measuring range 0.00~14.00pH, potential value ± 2000mV.
kedida-
PHSCAN10S-K pen pHmeter for liquid measurement
$ 130.00 -
HANNA HI981034 acidity pH Tester, milk pH Tester, open liquid conical glass
$ 262.00 -
LEICI E-201-CF pH composite electrode
$ 89.00 -
FANGZHOU FZ-223 PH electrode with temperature probe, low ion and tack sample testing
$ 347.00 -
BANTE P21 pH electrode for measurement of colloids
$ 318.00
product description
Kodida CT-6659 industrial pH meter is a multifunctional and intelligent instrument integrating pH measurement and control and redox measurement and control. It has complete functions and stable performance. Easy to operate and so on. It is the most cost-effective instrument in this type of instrument. Widely used in electroplating factories, circuit board factories, fermentation, food processing and other sewage treatment occasions.

Features
1. American Microchip company chip, 96×96 international standard shell.
2. High-quality components with LCD display.
3. Isolated 4-20mA current output, controlled by two groups of relays.
4. High-low point alarm indication, power-off memory.
5. There is no need for a backup battery, and the data can be stored for more than ten years.

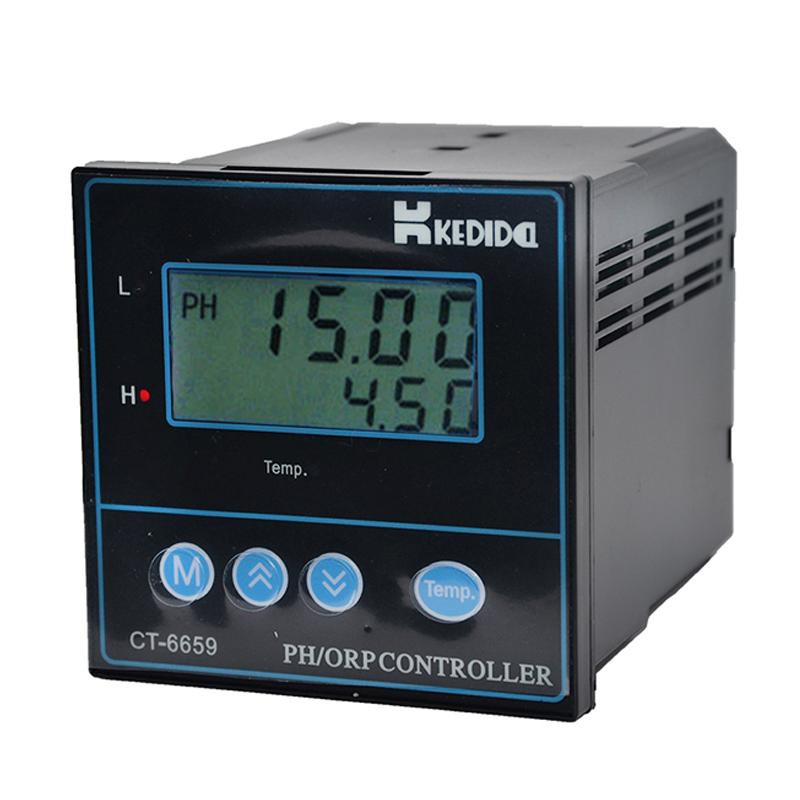

kedida CT-6659 PH/ORP ControllerSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameters | pH、mV |
| PH range | 0.00~14.00pH |
| PH measurement Accuracy | ±0.01pH |
| Temperature Measurement range | 0~100℃ |
| Power supply | AC 220V(160—250V)50Hz |
| Dimensions | 96*96*125mm |
| Complete-built unit power consumption | <5W |
| set point | 2 |
| Environment temperature | 0~50℃ |
| Display | Dual four-digit LCD display, high and low control LED indication |
| Allowable Relative Humidity | 35~85%RH |
| Parameter save | ≥ 10 years |
| output mode | ON/OFF 4~20mA |
| output Capacity | AC 250v/3A DC30V/3A |
| input impedance | ≥ 10 ^ 12O |
| Insulation R | ≥ 10MZ |
| mV measurement Accuracy | ±1mV |
| mV range | ±2000mV |
| Temperature compensation method | automatic |
kedida CT-6659 PH/ORP Controller Packing list
One pH controller X1, pH electrode (CT-1001C) X1, pH (4.01; 6.86; 9.18) Standard buffer X3 (package), certificate of conformity X1, warranty card X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
