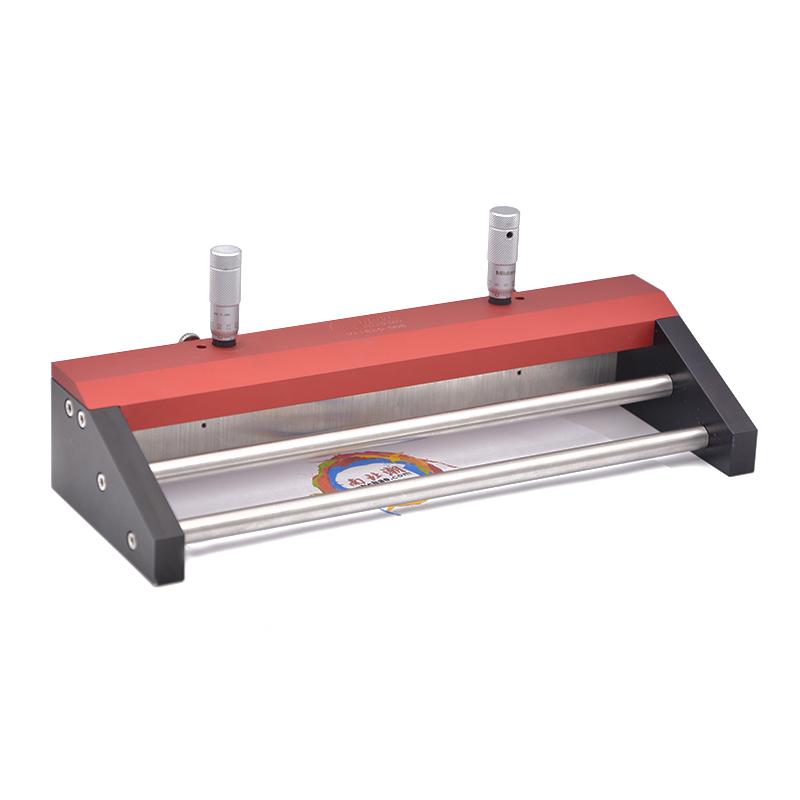

TQC SH1140 (VF1822) Micrometer Film Applicator 150mm
TQC SH1140 Micrometer Film Applicator is a 150mm application width, VF1822 can be freely adjusted 0-8mm range variable Film Applicator. Accuracy +/- 10μm, material anodic oxidation aluminum, hardened stainless steel, standard ASTM D823
TQC sheen
VF1822
VF1820
This is an adjustable micron film coater, which can freely adjust the wet film thickness of the coater from 2μm and in 10μm increments, and the film thickness range is 0~8mm. The TQC adjustable Film Applicator provides the user with the flexibility to adjust the precise gap size for the sample application. Ideal for projects that require accurate evaluation of changes in film thickness.
Product Features
1. Precision wear-resistant stainless steel blades
2. The thickness of the wet film is up to 8mm
3. The accuracy of the side head is 10μm
3. Black anodized aluminum frame
Criteria met:ASTM D823
Dimensional weight
SH0335（VF1820） |
|
Dimensions DxHxWDxHxW | 105 x 100 x 100 mm / 4.1 x 3.9 x 3.9 inch |
Weight Mass | 670 g / 23.6 oz |
Maximum film widthMax. Filmwidth | 75mm/ 2.95 inch |
SH0336（VF1821） Sheen equivalent model SH1117/100 |
|
Dimensions DxHxW | 105 x 100 x 125 mm / 4.1 x 3.9 x 4.9 inch |
Weight Mass | 770 g / 27.2 oz |
Maximum coating width Max. Filmwidth | 100 mm/ 3.9 inch |
SH1140（VF1822） Sheen equivalent model SH1117/150 |
|
Dimensions DxHxW | 105 x 100 x mm / 4.1 x 3.9 x inch |
Weight Mass | 980 g / 34.5 oz |
Maximum coating width Max. Filmwidth | 150 mm/ 5.9 inch |
SH0340（VF1823） Sheen equivalent model SH1117/200 |
|
Dimensions DxHxW | 105 x 100 x mm / 4.1 x 3.9 x inch |
Weight Mass | 1180 g / 41.6 oz |
Maximum coating width Max. Filmwidth | 200 mm/ 7.8 inch |
SH1142（VF1824） |
|
Dimensions DxHxW | 105 x 100 x mm / 4.1 x 3.9 x inch |
Mass | 1395 g / 49.2 oz |
Maximum coating width Max. Filmwidth | 250 mm/ 9.8 inch |
SH3042（VF1825） |
|
Dimensions DxHxW | 105 x 100 x mm / 4.1 x 3.9 x inch |
Weight Mass | 1600 g / 56.4 oz |
Maximum coating width Max. Filmwidth | 300 mm/ 11.8 inch |
TQC sheen VF1822 Micrometer Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| type | Adjustable |
| WFT | 0~8000μm |
| Application width | 150mm |
| Accuracy | ±10μm |
| material | Anodic oxidation of aluminum, hardened stainless steel |
| standard | ASTM D823 |
| size | 105*100mm |
| Net Weight | 980g |
TQC sheen VF1822 Micrometer Film Applicator Packing list
Micrometer Film Applicator × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
