Manual horizontal test stand HM-1K Hypertherm Force Gauge test stand, manual operation
Manual loading mode, load up to 1000N/100Kg, Test space 200mm, suitable for tensile force, insertion force, horizontal disbonding, damage and other tests.
HBO
HM-1K
product description

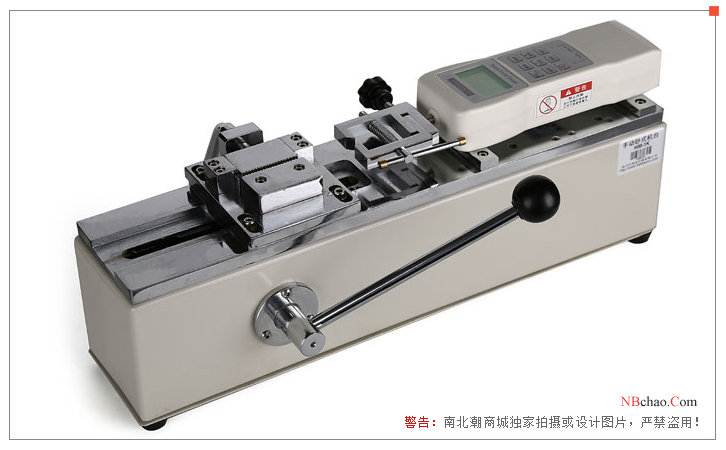

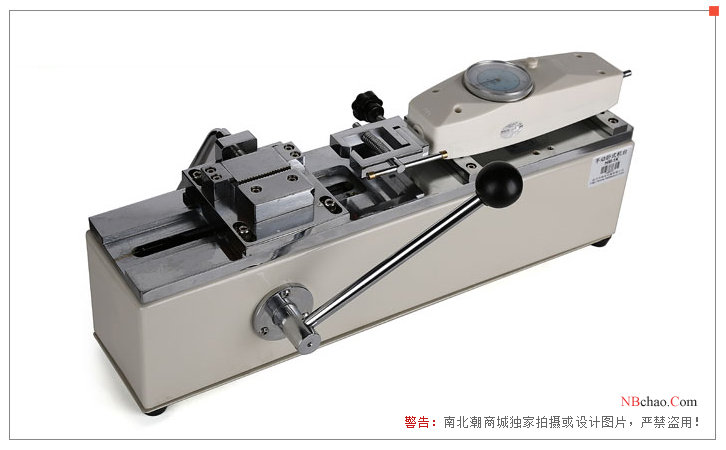

Haibao Instruments HM-1K manual horizontal test bench has a rated load of 1000N, which can be adapted to various domestic (CN) and imported pointer push-pull gauges and digital display push-pull gauges, and is suitable for tension and compression load and insertion force testing. The HM-1K manual horizontal test bench has a stroke of 100mm and is manually operated. It can be installed on the table for use and the test is stable.
The HM-1K manual horizontal test bench is equipped with fixtures, which are suitable for various industries and scientific research institutions to test tensile and compressive loads, insertion and withdrawal forces, and horizontal peeling.
Features
1. Horizontal installation.
2. The HM-1K manual horizontal test bench is manually operated, and the operation is simple and stable.
3. It can be installed on the desktop to make the rack more stable.
Product Structure
Pictures
HBO HM-1K Manual horizontal test benchSpecifications
| LIST | VALUE |
|---|---|
| Maximum load | 1000N / 100Kg |
| Test space | Maximum 200mm (excluding fixture) |
| itinerary | 100mm |
| Machine end clamping | ≤10mm |
| loading method | manual |
| size | 450×100×160mm |
| Weight | 9kg |
HBO HM-1K Manual horizontal test bench Packing list
host x1, power cord x1, manual x1, certificate of conformity (warranty card) x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
