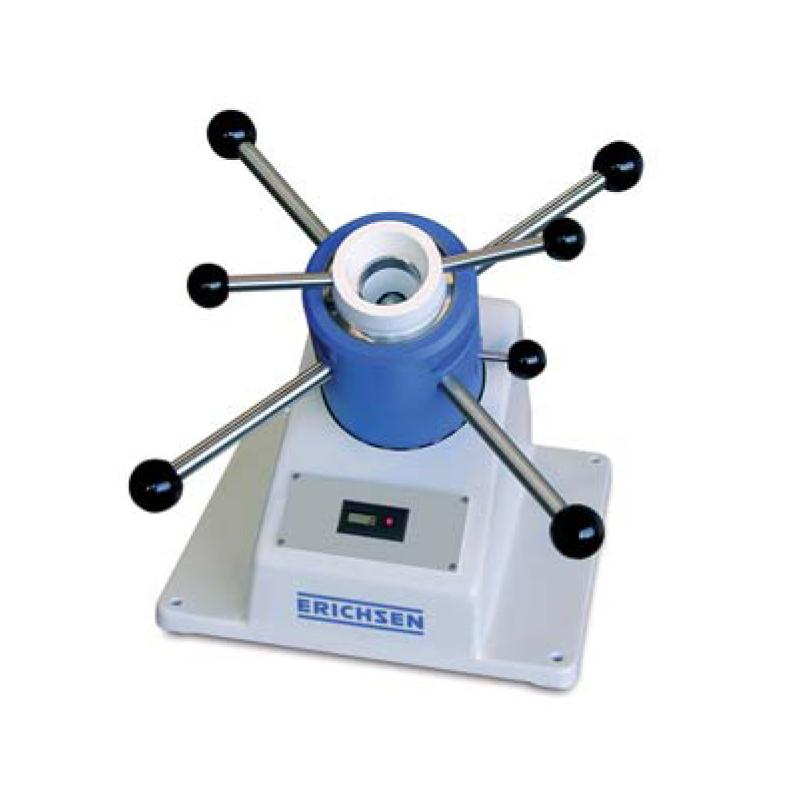

Erichsen 200 Manual Cupping test machine

ERICHSEN 200 MANUAL CUPPING TESTER IS A DESKTOP EQUIPMENT, ITS BASIC COMPOSITION IS A CAST IRON BODY PLUS A CYLINDRICAL PUNCH BASE, AND EQUIPPED WITH A NO.27 SEMI-CIRCULAR PUNCH, MANUAL OPERATION, DIGITAL DISPLAY TEST RESULTS, MAINLY USED TO TEST THE ABILITY OF THE COATING ON THE METAL SHEET TO RESIST PUNCHING AND SPALLING (I.E. ADHESION), THAT IS, ERICHSEN CUPPING TEST, THE TEST RESULTS ARE EXPRESSED BY "ERIKSSON CUP BURST VALUE".

The ERICHSEN-Model 200 cupping Tester is a benchtop unit with a cast iron body and test cylinder.In order to carry out the punch test, it is sufficient to place the test surface of the test piece upwards in the groove of the test cylinder.Turn the bracket one turn to the right and tighten the specimen. The test is started by removing the connecting rod from its bearing and turning it to the right side of the test cylinder.When signs of deterioration appear, the test ends.

The obtained ERICHSEN marked values can be read directly on the digital counter.During the top test, the monitoring of cracks on the deformed film is easily observed by pressing the frame.In order to accurately show damage during testing, we recommend using a special microscope with rechargeable battery illumination.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
