Digital hand-pressed tensile and compressive test stand HST-S HBO tensile gauge test stand, digital explicit
Measured value 500N, Test space 190mm, using hand pressure loading, with the fixture can do tension and compression load, insertion force, damage and other tests.
HBO
HST-S
HST-J
-
SUNDOO SN-100 Pointer Tensile Pressure Dynamometer, Range 100N
$ 169.00 -
LANDTEK FM-207-2K Digital Display Force Gauge Measurement Range +/- 2kgf
$ 332.00 -
Haibao HJJ-08 fixture
$ 89.00 -
Santo SHB-500 Electronic Digital Force Gauge Range 500N Graduation 0.1N
$ 284.00 -
SUNDOO SJ-016 Spring Clamp 5kN
$ 133.00
Introduction

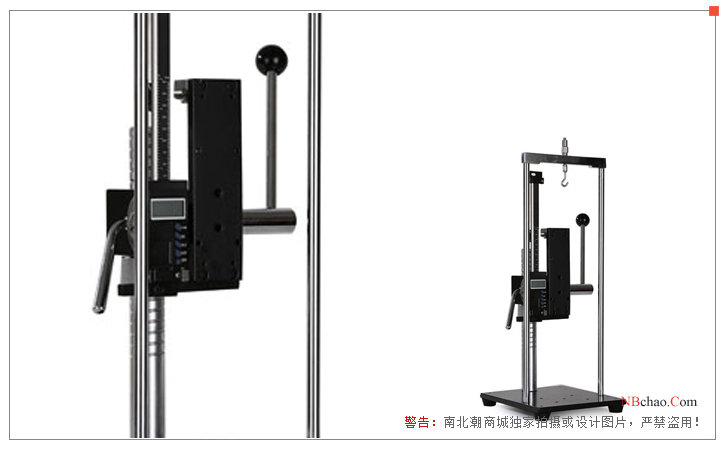

Haibao Instruments HST series push-pull test stand is a hand-pressed tension test stand , which is divided into HST-J and HST-S types. The digital display hand-pressed tension and compression test stand is HST-S model, with a digital display scale, not only can display the measured force value through the push-pull force gauge, but also the digital display scale equipped with the test stand can also display the displacement of the test. Able to lock the stroke and compare the tensile values of different test pieces under the same displacement.
The test load of the HST-S digital display hand-pressed tension and compression test stand is 500N, and the measurement stroke is 200mm.
Features
1. Simple operation - manual operation
2. Stable operation - rack and pinion type rotation
3. Display ruler - digital display
4. The installation is stable - the base, the machine feet are large, and the body is heavy
How to use

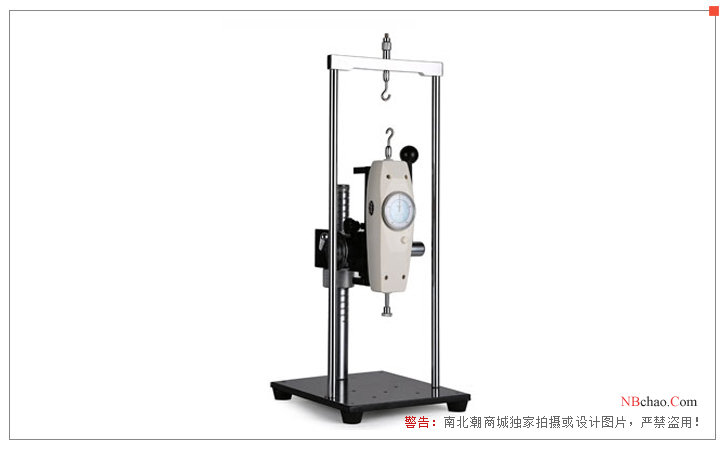

1. During the test, install the push-pull force gauge on the HST-S digital display hand-pressed tension-compression test stand , and select the appropriate fixture to install it on the push-pull force gauge.
2. Rotate the HST-S digital display manual tension and compression test stand to adjust the nut up and down , so that the fixture is in contact with the object to be tested, and then reset the digital display scale to zero to start the test.
2. The value displayed on the push-pull force gauge is the measured force value.
3. Displacement: Subtract the displacement of the thrust gauge itself from the value displayed on the scale to get the displacement of the measured object (the displacement calculation method of the push-pull force gauge: the measured force value is divided by the range of the push-pull force gauge and multiplied by 10mm). The formula is as follows: displacement (mm) = scale reading (mm) - {measured force value (N) / push-pull force gauge range (N)} × 10 (mm)

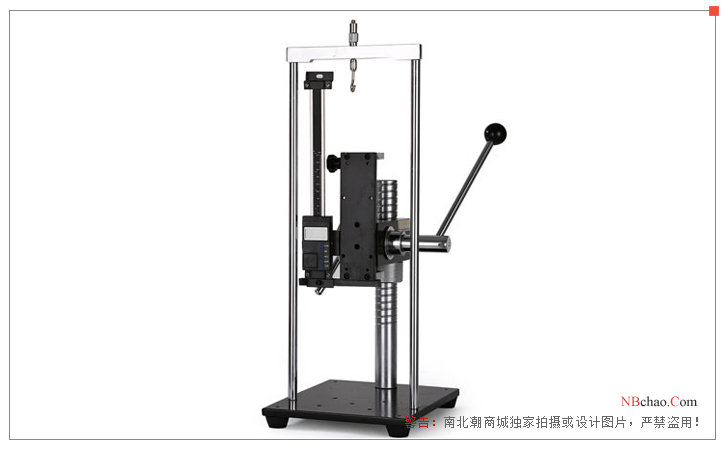

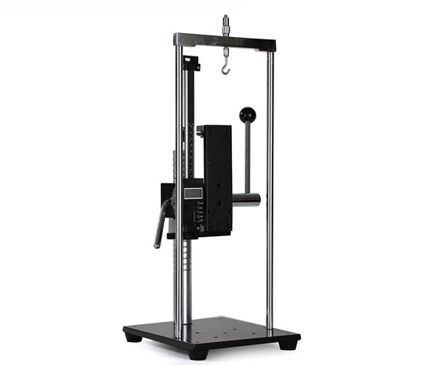

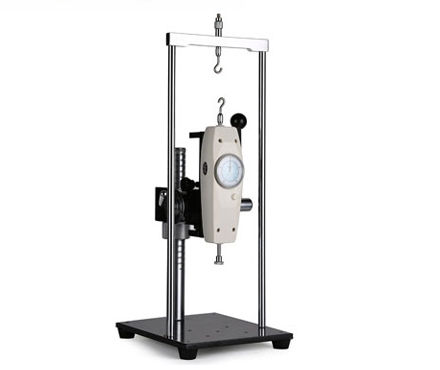

Pictures
HBO HST-S Hand-pressed tensile and compressive test rackSpecifications
| LIST | VALUE |
|---|---|
| Maximum load | 500N / 50Kg |
| Digital ruler | 150Mm (resolution 0.01mm) |
| Test space | 190Mm (excluding fixture) |
| itinerary | 75mm |
| loading method | Hand pressure |
| size | 255×240×503mm |
| Weight | About 12kg |
HBO HST-S Hand-pressed tensile and compressive test rack Packing list
host x1, power cord x1, manual x1, certificate of conformity (warranty card) x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
