Coating Thickness Gauge HC-200 HBO magnetic eddy current double function Thickness Gauge

Overview

The Hypertherm HC-200 Coating Thickness Gauge is a dual-functional, dual-functional, portable magnetic eddy current coating Thickness Gauge in the Hypertherm HC series coating Thickness Gauge, with a split structure design, equipped with two types of F probes and N probes, which can quickly and nondestructively test the thickness of non-magnetic coatings on magnetic metal substrates and the thickness of non-conductive coatings on non-magnetic metal substrates, and can be measured quickly and easily. HC-200 coating Thickness Gauge adopts full Chinese operation interface, which is easy to operate. In addition, the HC-200 Coating Thickness Gauge is a powerful tool for easy data management, with five statistics, the ability to store 500 readings, and the ability to delete data freely.

Product Structure

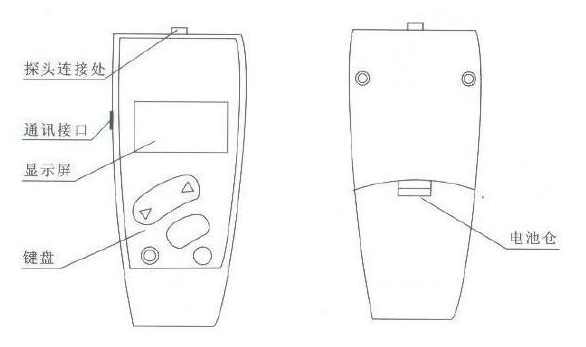

The functional structure of HC-200 dual-function coating Thickness Gauge includes: keyboard, display, communication interface, probe connection, and battery compartment, as shown in the following figure:

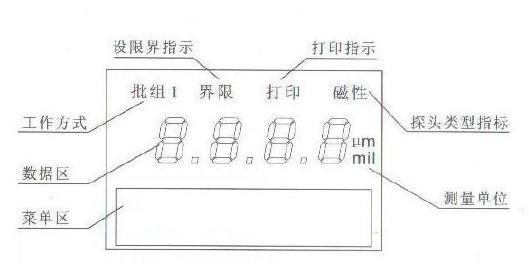

Parameter descriptions are displayed

Features

1、The HC-200 Coating Thickness Gauge uses both magnetic and eddy current measurement methods to measure the thickness and measure it immediatelyThe thickness of the non-magnetic coating on a magnetic metal substrate and the thickness of the non-conductive coating on a non-magnetic metal substrate.

2. It has two Operating Modes: direct mode and group mode;

3. There are two measurement methods: continuous measurement mode and single measurement mode;

4. It has the function of storage: it can store 500 measured values;

5. There are five statistics: average, maximum, minimum, number of tests, standard deviation;

6. Two methods are used to calibrate together, and the systematic error of the probe can be corrected by the basic calibration method;

7. HC-200 eddy current coating Thickness Gauge has the function of power supply underVoltage indication;

8. It has the function of deleting: delete the single suspicious data that appears in the measurement, and delete all the data in the storage area in order to carry out new measurements;

9. The limit can be set: the measured value outside the limit can be automatically alarmed; and a histogram can be used to perform Fenix on a batch of measurements;

10. With printing function: it can print measured values, statistical values, limits, and histograms;

11. It has the function of communicating with the PC: the measured value and statistical value can be transmitted to the PC for further processing of the data;

12. There is a buzzer prompt during the operation;

13. It has the function of error prompt, and the error prompt is carried out through the screen display or buzzer;

14. There are two shutdown modes: manual shutdown mode and automatic shutdown mode.

Instructions

1. Connect wellHC-200 Coating Thickness Gaugeprobes;

2. Place the probe in an open space, press the power button, and turn it on;

3. InspectionHC-200 Coating Thickness Gaugebattery Voltage;

4. Under normal conditions when the machine is turned on, the measured value before the last shutdown will be displayed after the power on;

5. Determine whether calibration is requiredHC-200 Coating Thickness GaugeIf necessary, professional calibration is required;

6. Measurement: quickly contact the probe perpendicular to the test surface and gently press the probe positioning sleeve, with a sound, the screen displays the measured value, and the probe can be pulled out for the next measurement;

7. Shutdown: without any operation, after about 2~5min,HC-200 Coating Thickness GaugeIt will automatically power off, press the power button once, and it will power off immediately.

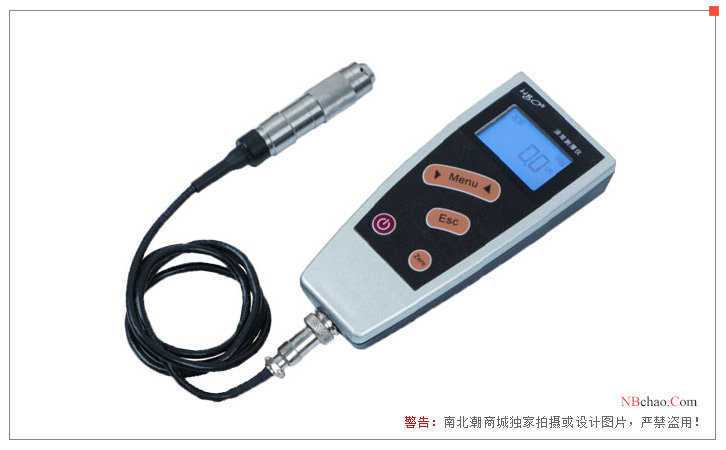

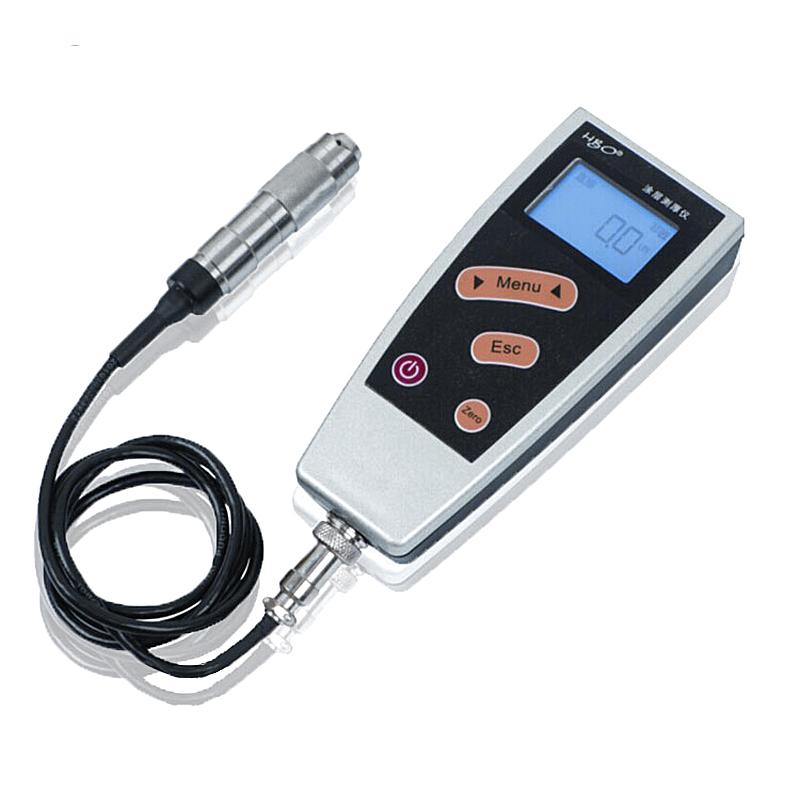

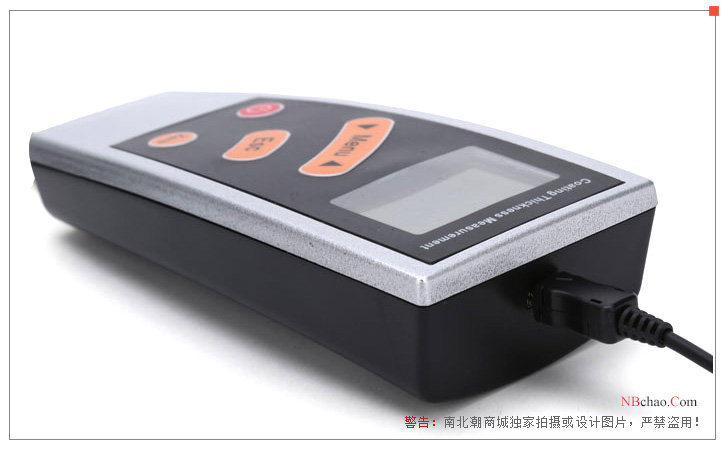

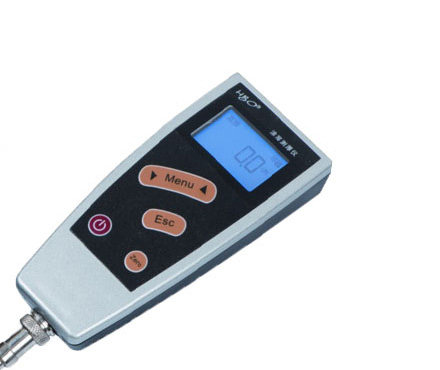

Actual picture of the product

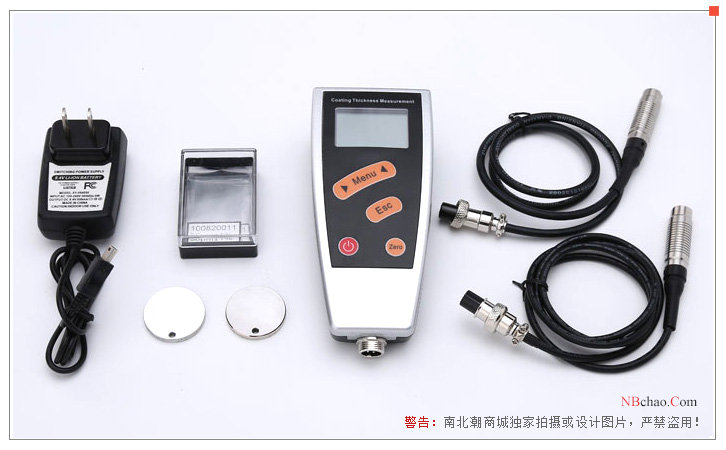

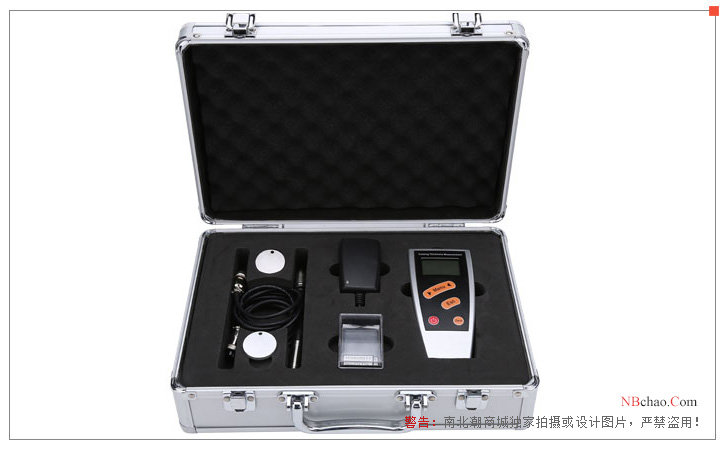

host x1, probe x2, standard piece x5, substrate x1, alkaline battery x2, certificate x1, warranty card x1, manual x1, instrument case x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
