Portable Shore Durometer LX-AO Hypertherm Type AO Portable Shore Durometer Hard Rubber, Hard Resin, etc

product description

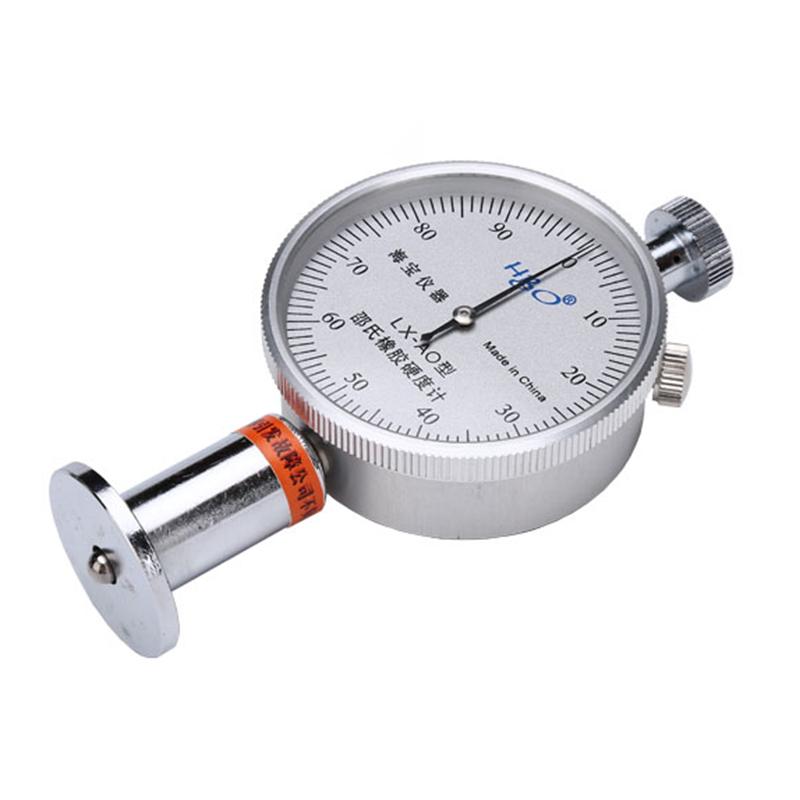

Haibao Instruments Dial-Type portable Shore Hardness Tester has three types of Shore Hardness Tester: A type, D type and AO type. For the above, the microporous material for shoes made of rubber and plastic, and the plastic contains a foaming agent is used for hardness testing. The test result value of the LX-AO portable Shore Hardness Tester is directly indicated by the pointer on the dial of the Hardness Tester, which is clear and intuitive.

Applications

LX-AO Portable Shore Hardness Tester is suitable for hardness testing of general hard rubber, hard resin, acrylic, glass, thermoplastic, printing plate, fiber, etc.

Standards

LX-AO Portable Shore Hardness Tester complies with the standards DiN53505, ASTMD2240, 1S0/R868, JISR7215, and strictly implements the relevant regulations of GB/T531-99, GB2411-80, HG/T2489-93, and JJG304-2003.

Pictures

Product operation method

1. Place the sample on a solid surface, hold the LX-AO Portable Shore Hardness Tester , and keep the indenter at least 12mm from the edge of the sample.

2. Press the presser foot firmly on the sample, make the presser needle vertically press into the sample, until the presser foot is in full contact with the sample, take a reading within 1s.

3. Measure the hardness value 5 times at different positions with a distance of at least 6 mm between the measuring points, and take the average value (the distance between the measuring points for microporous materials is at least 1 5 mm).

4. If it is to stabilize the test conditions and improve the test accuracy, the LX-AO portable Shore Hardness Tester can be tested on the same type of test fixture produced by the supporting production.

Hardness gauge x1, certificate x1, warranty card x1, manual x1, instrument case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
