Sponge Shore Durometer LX-C-2 Hypertherm Shore C Hardness Gauge Low Hardness Material Test, Double Pointer

Introduction

Haibao Instruments Shore Hardness Tester LX-C-2 is a sponge Shore Hardness Tester with two pointers, a tracking pointer and a peak pointer, and the peak pointer is used as the measured hardness value. LX-C-2 Sponge Shore Hardness Tester is a hardness testing instrument for low-hardness materials, which can be used to measure foam, sponge, rubber microporous materials, etc., especially suitable for shoes with a pressure above 0.049MPa when the compression rate is 50%. Using the hardness test of rubber microporous materials, the stroke range of the indenter is 0-2.5mm, and the measurement range is 10-90Hc.

Features

1. LX-C-2 Sponge Shore Hardness Tester is a double-pointer Shore Hardness Tester.

2. It is suitable for testing the hardness value of materials with low hardness.

3. You can purchase a test stand separately for matching use, which makes the measurement easier and more stable.

4. Comply with HG/T2489-2007 standard.

Testing requirements

1. The thickness of the sample should be (10±0.5) mm, the width not less than 30 mm, and the length not less than 60 mm. If the sample thickness is less than 10 mm, two pieces are allowed to be stacked, but the contact surface must be smooth and flat, and the total thickness should still meet the thickness regulations. .

2. The surface of test samples such as rubber and plastic products should be flat and smooth, without mechanical damage, scratches and impurities, so as not to affect the accuracy of the test.

3. LX-C-2 Sponge Shore Hardness Tester should be submitted for inspection regularly, usually one year.

4. After using the LX-C-2 Sponge Shore Hardness Tester, put it into the instrument box and put it in a dry place to prevent it from getting damp.

5. When using this Hardness Tester, the recommended measuring range is 10Hc-90Hc. If it exceeds this range, other testing methods should be used.

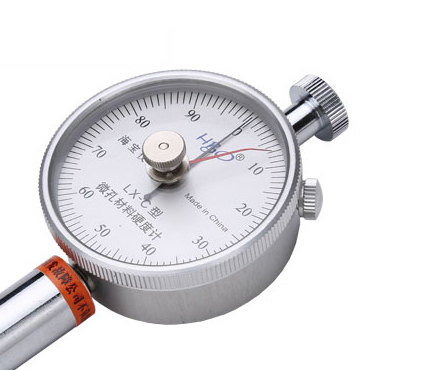

Pictures

Hardness gauge x1, certificate x1, warranty card x1, manual x1, instrument case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
