Shore rubber Hardness Gauge HS-D Haibao D Shore rubber Hardness Gauge High Hardness Material Test

product description

Haibao Instruments HS-D Shore Rubber Hardness Tester is a professional integrated digital display hardness testing instrument produced by Haibao Instruments. It belongs to the D-type Shore Hardness Tester and is suitable for testing the hardness of materials with high hardness values. The HS-D Shore Rubber Hardness Tester is developed according to various national and international standards. Different from the pointer Shore Hardness Tester, this Shore Rubber Hardness Tester uses sensors to measure the displacement of the indenter and then further calculates the hardness. value. HS-D Shore Rubber Hardness Tester has a hardness measurement range of 0-100HA, and can be used with a Hardness Tester (purchased separately).

Standards

HS-D Shore Rubber Hardness Tester complies with national standards "Rubber Pocket Hardness Test Method for Indentation Hardness" GB/T 531-1999, "Plastic Shore Hardness Test Method" GB/T 2411-80 and ISO7619, ISO868, D2240- 02, JISK6253 and other international standards.

Features

1. HS-D Shore rubber Hardness Tester integrates measuring device and data processing, and is a digital display Hardness Tester.

2. It has the advantages of accurate measurement value, convenient carrying, compact structure, beautiful appearance, light weight and easy operation.

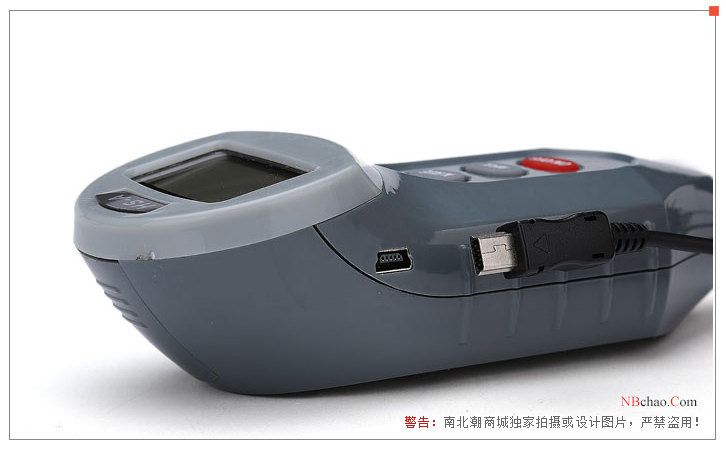

3. It can communicate with the computer through the RS232 communication cable.

4. HS-D Shore Rubber Hardness Tester has the functions of peak value latch, average value calculation and underVoltage alarm.

5. With automatic shutdown function.

Applications

HS-D Shore Rubber Hardness Tester is suitable for hardness testing of hard plastics (such as thermoplastics, hard resins, nylon and plexiglass, etc.), hard rubber and other related chemical products (such as anti-corrosion materials, flame-retardant materials, paint coatings, etc.) .

Product Structure

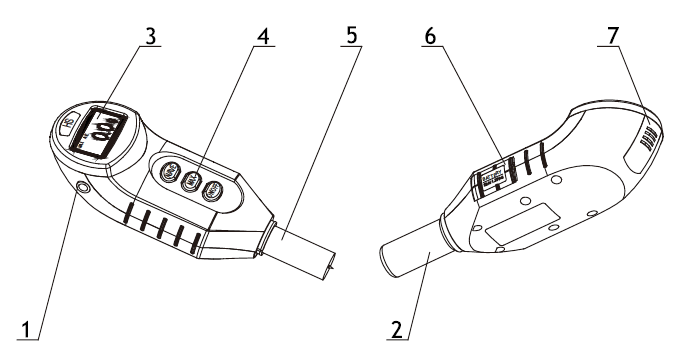

The functional structure diagram of HS-D Shore Rubber Hardness Tester is as follows:

1. Communication interface; 2. Protective cover; 3. Display; 4. Buttons; 5. Measuring device; 6. Battery compartment; 7. Mounting hole cover

Pictures

Hardness gauge x1, certificate x1, warranty card x1, manual x1, instrument case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
