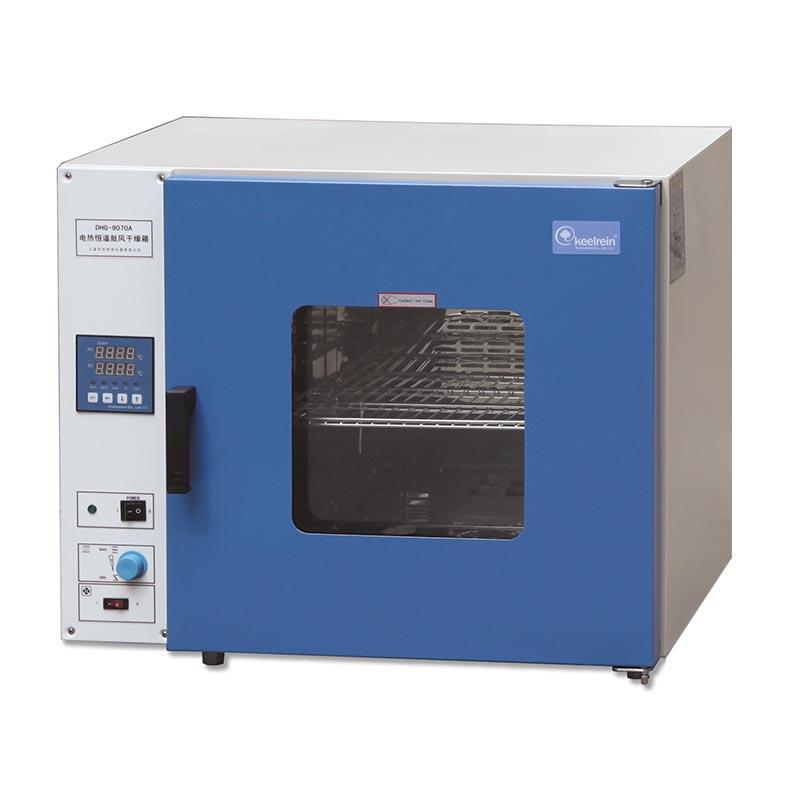

KEELREIN DHG-9070A (101-1A) desktop Forced Air Drying Oven Temperature range: + 10~250 ℃
KEELREIN DHG-9070A Drying Oven is a Temperature range of + 10~250 ℃ desktop Forced Air Drying Oven, thermostatic fluctuation is +/- 1 ℃, Temperature resolution is 0.1 ℃, DHG-9070A Forced Air Drying Oven for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing effect.
Keelrein-
BENTING CBGL-65B vertical standard Forced Air Drying Oven 300 ℃/65L
Login -
Kenton DHG-9130 Precision LCD screen thermostatic drying oven
$ 707.00 -
MODERNER GFX-9123A Forced Air Drying Oven 136L
Login -
BOZHEN DHG-9055A Desktop Forced Air Drying Oven
$ 471.00 -
CHINA DHG-9053A Desktop Forced Air Drying Oven 850W/50L
$ 348.00
Introduction
Shanghai Qixin DHG-9070A (101-1A) desktop Forced Air Drying Oven is used for drying, baking, wax melting and sterilization for industrial and mining enterprises, laboratories and scientific research units.
Features
1. The LED digital high-highlight microcomputer temperature controller with temperature control protection and timing function is used to control the temperature accurately and reliably.
2. The box is made of mirror stainless steel or argon arc welding of wire drawing plate material, and the box is made of good steel plate material, which is beautiful and novel.
3. The hot air circulation system is composed of a fan that can run continuously at high temperature and a suitable air duct. The temperature in the studio is uniform.
4. Imported fan and imported thyristor are adopted, which have a long service life and can avoid frequent replacement.
5. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)
6. It can be equipped with a printer or 485 interface, which is used to connect to a printer or computer to record the temperature parameter changes in real time. (Optional)
7. With "D" series, it is an intelligent ten-segment programmable LCD controller.

Keelrein DHG-9070A(101-1A) Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Volume | 81L |
| Interior size | 450*400*450mm |
| Chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
| Power supply Voltage | 220V 50Hz |
| Input Power | 1570W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 740*580*630mm |
| Imported motor | Yes. |
| imported thyristor | Yes. |
| Independent temperature limiting Controller | optional |
| LCD Independent Overtemperature Protectioning Controller | optional |
| printer | optional |
| Communication interface | RS-485 interface and communication software (optional) |
Keelrein DHG-9070A(101-1A) Desktop Forced Air Drying Oven Packing list
Shelf X2, host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
