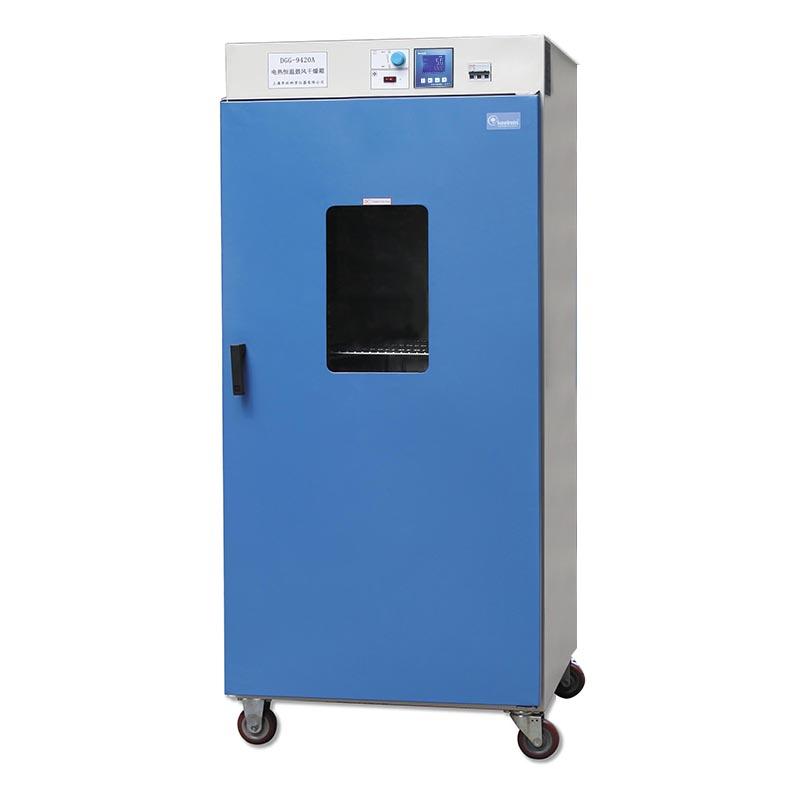

KEELREIN DGG-9420AD Vertical electric thermostatic Drying Oven 200 ℃/429L
KEELREIN DGG-9420AD Drying Oven is a Temperature range: + 10~200 ℃, Temperature Fluctuation of +/- 1 ℃ vertical electric thermostatic Drying Oven, DGG-9420AD electric thermostatic Drying Oven for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing effect
Keelrein-
Guohua DGX-20 electric heating constant temperature Forced Air Drying Oven
$ 413.00 -
YIHENG BPG-9760BH High temperature Forced Air Drying Oven Volume 760L Temperature control up to 400 ℃
$ 7685.00 -
HZAOC DZF-6090 vacuum Drying Oven, digital display/two-layer baffle
$ 3242.00 -
HUITAI DZF-6210 Benchtop Vacuum oven with vacuum pump with inert gas intake valve
$ 3676.00 -
Kenton DZF-3050S constant temperature vacuum Drying Oven, independent temperature control for each layer
$ 1695.00
Introduction
Shanghai Qixin DGG-9030A vertical electric constant temperature Forced Air Drying Oven is used for drying, baking, wax melting and sterilization for industrial and mining enterprises, laboratories and scientific research units.
Features
1. The LED digital high-highlight microcomputer temperature controller with temperature control protection and timing function is used to control the temperature accurately and reliably.
2. The box is made of mirror stainless steel argon arc welding, and the box is made of good steel plate material, which is beautiful and novel.
3. Vertical, vertical forced convection, imported original fan, imported thyristor, uniform temperature in the studio.
4. Imported fan and imported thyristor are adopted, which have a long service life and can avoid frequent replacement.
5. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)
6. It can be equipped with a printer or 485 interface, which is used to connect to a printer or computer to record the temperature parameter changes in real time. (Optional)
7. With "D" series, it is an intelligent ten-segment programmable LCD controller.

Keelrein DGG-9420AD Vertical electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Volume | 429L |
| Interior size | 600*550*1300mm |
| Chamber material | stainless steel |
| Shelf (std.) | 4pcs |
| Timer | 1~9999min |
| Power supply Voltage | 380V 50Hz |
| Input Power | 3200W |
| Environmental temperature | RT+5~40℃ |
| Environmental humidity | 50%RH |
| Dimensions | 780*760*1800mm |
| Imported motor | Yes. |
| imported thyristor | Yes. |
| Smart 10-segment programmable liquid crystal Controller | Yes. |
| Independent temperature limiting Controller | optional |
| LCD Independent Overtemperature Protectioning Controller | optional |
| printer | optional |
| Communication interface | RS-485 interface and communication software (optional) |
Keelrein DGG-9420AD Vertical electric thermostatic Drying Oven Packing list
Shelf X3, host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
