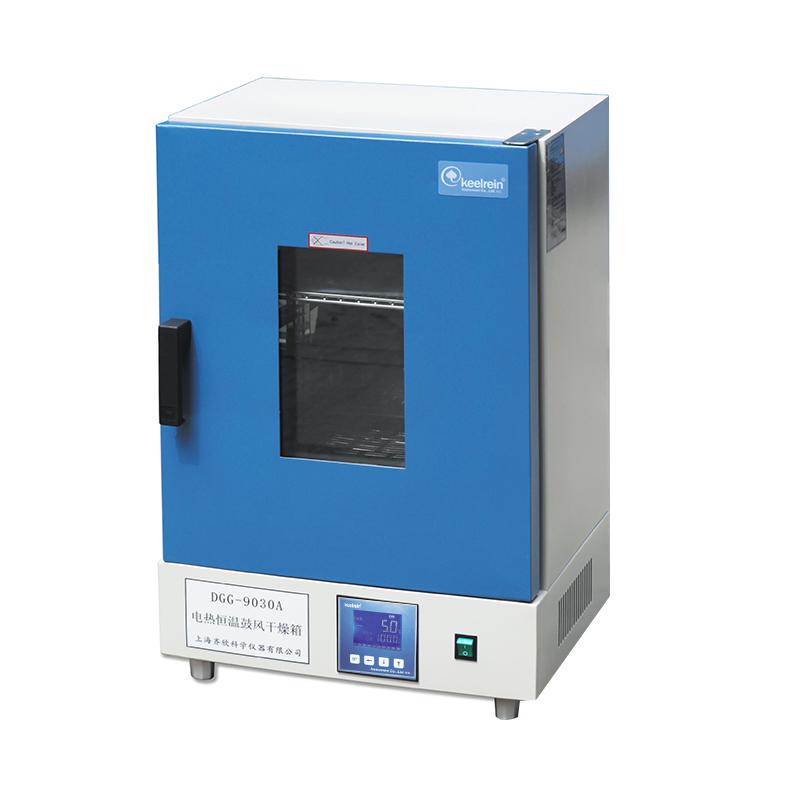

KEELREIN DGG-9036AD Vertical electric thermostatic Drying Oven 300 ℃/31L
KEELREIN DGG-9036AD Drying Oven is a Temperature range: + 10~300 ℃, working volume 31L vertical electric thermostatic Forced Air Drying Oven, DGG-9036AD electric thermostatic Forced Air Drying Oven for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing
Keelrein-
BOZHEN DHG-9053A Desktop Forced Air Drying Oven
$ 427.00 -
Kenton KH-55T digital electric air blowing dryer 250 ℃/136L with independent temperature limiter
$ 945.00 -
HUITAI PH-030A dry culture dual-use box, volume 30L
Login -
HUITAI DZF-6500 Laboratory vacuum oven volume 500L with inert gas intake valve
$ 6715.00 -
YIHENG PH-070A drying/fostering dual-use box, input power 1550W
$ 688.00
Introduction
Shanghai Qixin DGG-9036AD vertical electric heating constant temperature Forced Air Drying Oven is used for drying, baking, wax melting and sterilization for industrial and mining enterprises, laboratories and scientific research units.
Features
1. The LED digital high-highlight microcomputer temperature controller with temperature control protection and timing function is used to control the temperature accurately and reliably.
2. The box is made of mirror stainless steel argon arc welding, and the box is made of good steel plate material, which is beautiful and novel.
3. Vertical, vertical forced convection, imported original fan, imported thyristor, uniform temperature in the studio.
4. Imported fan and imported thyristor are adopted, which have a long service life and can avoid frequent replacement.
5. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)
6. It can be equipped with a printer or 485 interface, which is used to connect to a printer or computer to record the temperature parameter changes in real time. (Optional)
7. With "D" series, it is an intelligent ten-segment programmable LCD controller.

Keelrein DGG-9036AD Vertical electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Volume | 31L |
| Interior size | 300*300*350mm |
| Chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
| Power supply Voltage | 380V 50Hz |
| Input Power | 970W |
| Environmental temperature | RT+5~40℃ |
| Environmental humidity | 50%RH |
| Dimensions | 455*470*705mm |
| Imported motor | Yes. |
| imported thyristor | Yes. |
| Smart 10-segment programmable liquid crystal Controller | Yes. |
| Independent temperature limiting Controller | optional |
| LCD Independent Overtemperature Protectioning Controller | optional |
| printer | optional |
| Communication interface | RS-485 interface and communication software (optional) |
Keelrein DGG-9036AD Vertical electric thermostatic Drying Oven Packing list
Shelf X2, host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
