TROPHY /OTZ 25x150x0.28mm test tinplate, thickness 0.28mm rounded corners without punching
TROPHY 25x150x0.28mm test tinplate is a laboratory test grade tinplate with a size of 25x150mm and a thickness of 0.28mm. TROPHY test tinplate is rounded without punching holes, and it starts at 500 pieces.
OTZ
25X120x0.28 (rounded corners without punching) (500 pieces)
-
Test-grade tinplate sheet 100 * 200 * 0.28 rounded corners, experimental special tinplate sheet
$ 223.00 -
Test-grade tinplate sheet 100 * 200 * 0.4 rounded corners, experimental special tinplate sheet
$ 240.00 -
Test grade tinplate sheet 200 * 300 * 0.4 right angle, experimental special tinplate sheet
$ 164.00 -
XINHEFENG 150 * 100 * 0.8 mirror stainless steel test plate, right angle non-porous 100 pieces
$ 169.00 -
XINHEFENG 150 * 100 * 0.8 Paint Test steel plate Right angle non-porous 100 pieces
$ 148.00
Introduction
Twards25x120x0.28 test tinplate sheetIt is used for proofing coating, there are two kinds of punching and non-punching, and the coating film is required to be prepared on the tinplate during the performance testing (adhesion, hardness, impact, flexibility, bending, drying time) of industrial coatings. The amount of tinplate, hardness and surface treatment on the surface of tinplate are the most important factors affecting the test results.25x120x0.28 test tinplate sheetThe size is 25x150mm, the thickness is 0.28mm, in line with GB2520 standard.
Raw material: 0.28mmPacific tinplate(Made in Japan, better quality)
Applicable industries
25x150x0.28 tinplateIt is suitable for coatings, inks, automobiles and other industries.

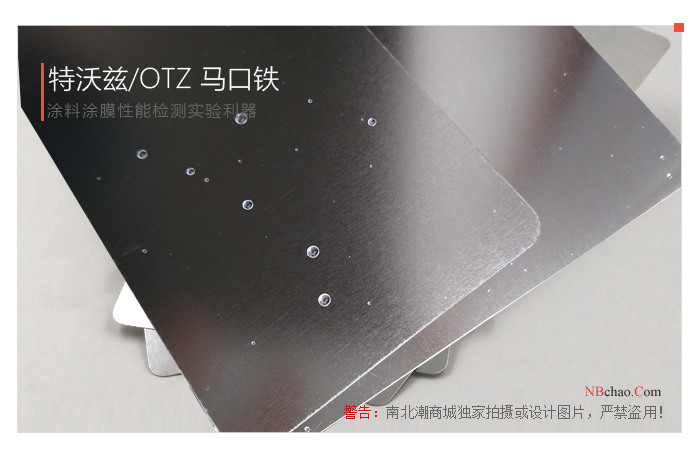

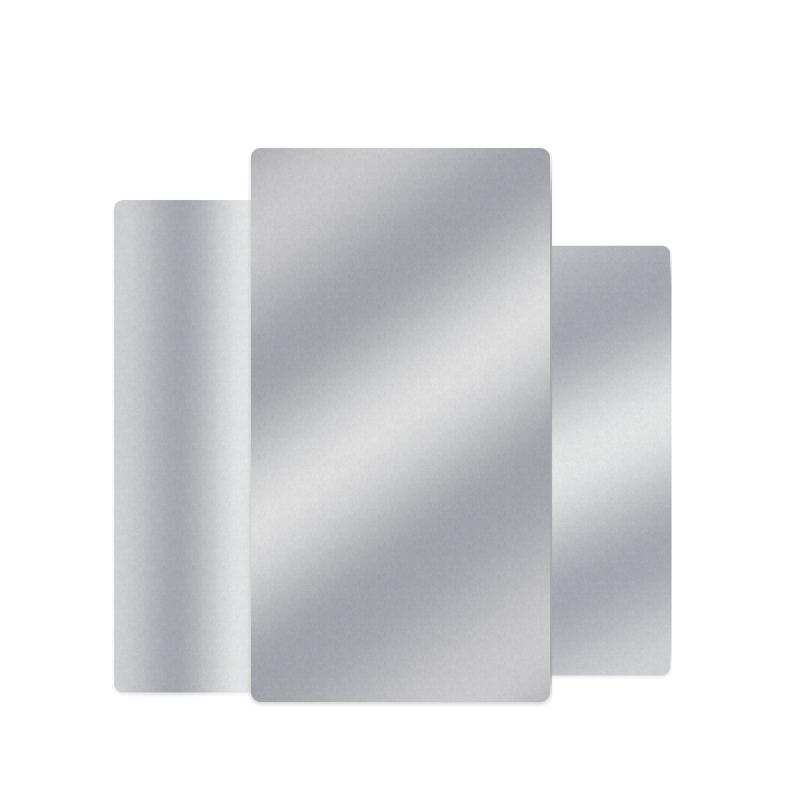

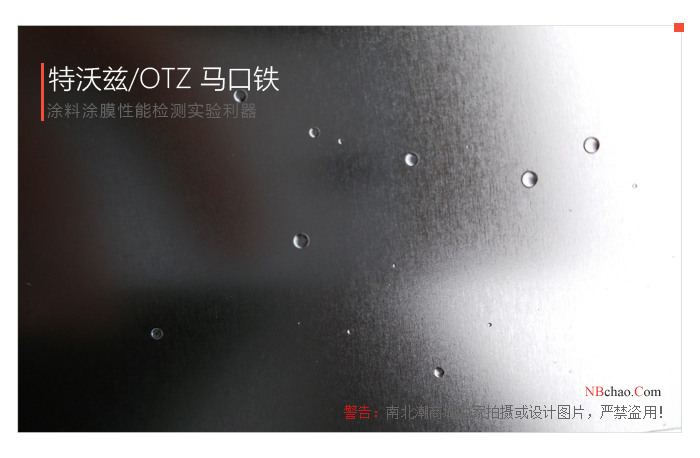

Actual picture of the product
OTZ 25X120x0.28 (rounded corners without punching) (500 pieces) tinplateSpecifications
| LIST | VALUE |
|---|---|
| Length (mm) | 120 |
| Width (mm) | 25 |
| Thickness (mm) | 0.28 |
| corner shape | rounded corners |
| Whether to punch holes | No |
| raw material | Baosteel |
| Tin plating amount | E4 |
| Hardness | T52/T54 (random with factory batch) |
| Encasement | 500 pieces/pack |
OTZ 25X120x0.28 (rounded corners without punching) (500 pieces) tinplate Packing list
Tackle iron plate x1 (1 pack of 500 pieces)
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
