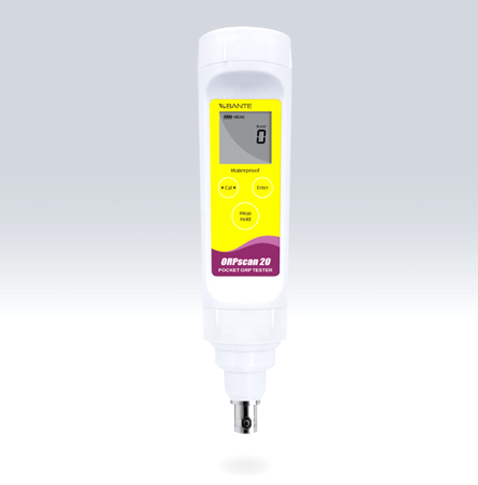

Ordinary ORPscan20 pen ORP meter with BNC connector, can be connected to standard ORP electrode
Multipurpose pen ORP meter, equipped with standard BNC connector, can connect all kinds of oxidation reduction electrode, the instrument is widely used in the environment and industrial fields, measurement accuracy: 2mV.
Bante
ORPscan20
ORPscan10
-
LEICI bromine ion electrode calibrated solution, suitable for bromine ion composite electrode
$ 106.00 -
JINGQI WD8205 Hexavalent Chromium Tester
$ 481.00 -
JINGQI COD-5 COD Tester
$ 1073.00 -
HANNA HI93721-01 Photometer Iron reagent 100 times
$ 145.00 -
DDKSIC DO01-2M-H Polarographic dissolved Oxygen electrode for environmental protection, water treatment, aquaculture, monitoring oxygen content in water
$ 164.00
Introduction
Multi-purpose pen-type ORP meter, equipped with BNC connectors, can be connected to a variety of ORP electrodes, the meter is widely used in environmental and industrial fields to measure the oxidation-reduction potential value of liquids.
Features
• Multipurpose pen-style ORP meter with BNC connector.
• Relative and absolute mV measurement function, providing accurate measurement value.
• 1-point offset calibration, allowing adjustment of the displayed value to a known standard.
• Automatic end point locking, retaining stable measurement values for viewing or recording.
• Automatic power off, effectively saving battery power consumption.
• Built-in system menu, user-defined manual or automatic data lock function, automatic or timer shutdown function.
• One key reset (Reset), automatically restore the meter to the factory default settings.
• Full waterproof performance to ensure the complete protection of the instrument in harsh environments.
Applications
• Chromate reduction
• Cyanide oxidation
• swimming pool
• Pulp bleaching and aquaculture
• Drinking water and other industrial applications

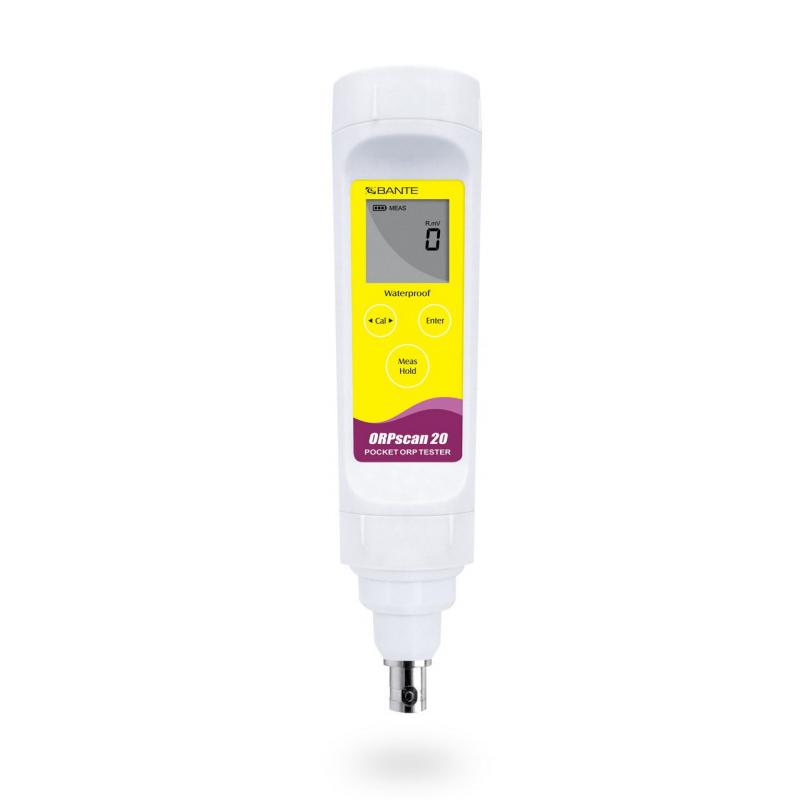

Bante ORPscan20 Pen ORP meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | ORP |
| Measurement range | -999~999mV |
| Measurement Accuracy | ±2mV |
| resolution | 1mV |
| Power Supply | 2 AAA batteries |
| Dimension | 175 * 40 (diameter) mm |
| Weight | 100g |
| Measurement mode | mV or relative mV (R.mV) |
| Calibrated point | 1 point (only for R.mV mode) |
| shutdown mode | Manual or automatic (after 8 minutes of no-button operation) |
| Sensor type | Standard ORP electrode, BNC Connector |
| Battery life | About 200 hours |
| Display | Customized LCD screen |
| Optional Accessories | E-ORPSCAN-S type ORP electrode |
| Packaging Dimensions | 280(L)×230(W)×80(H)mm |
| Encasement Weight | 1.5kg |
| Optional Accessories | Type 501 ORP electrode, Type 502 ORP electrode, Type 504 ORP electrode |
Bante ORPscan20 Pen ORP meter Packing list
Host X1, 501 type ORP electrode X1, AAA type battery X1, plastic carrying case X1, solution storage bottle X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
