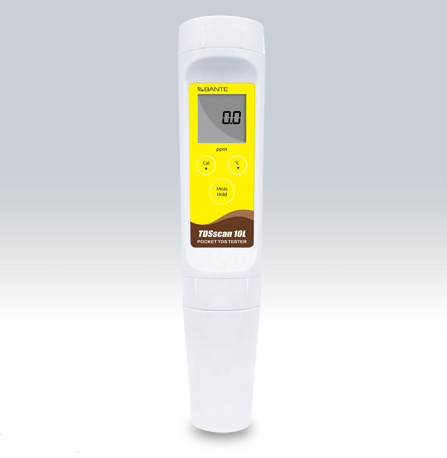

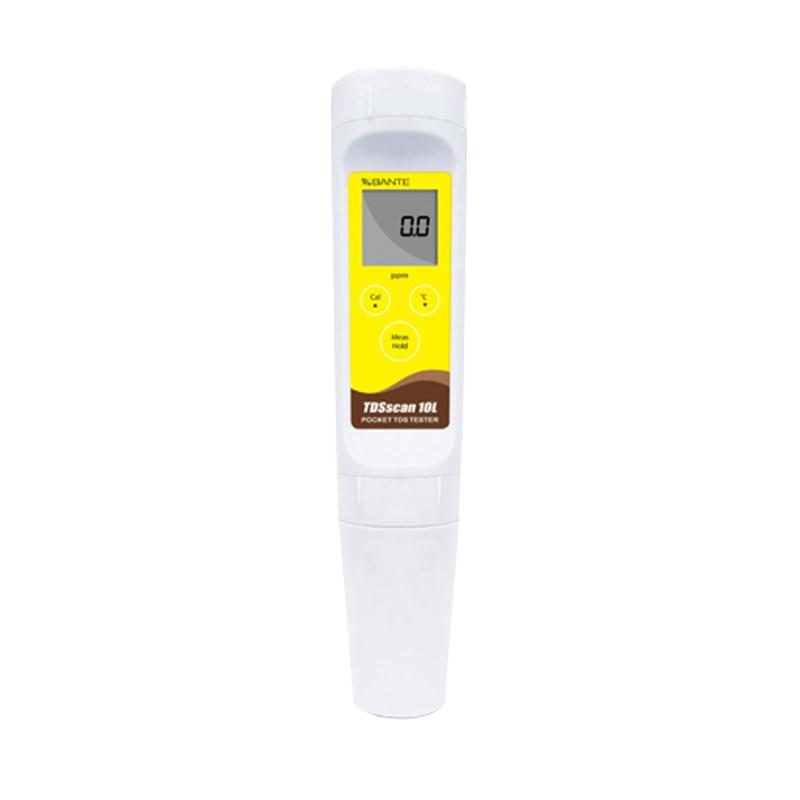

General TDSscan10L-K Pen TDS Meter
Single range pen TDS meter, Platinum Sensors, 1-point button calibrated, optional TDS conversion factor, Accuracy: ± 1% F.S
Bante
TDSscan10L-K
-
LEICI 780200N03 Ammonia Nitrogen Working Reagent Kit 0.000~4.000mg/L
$ 158.00 -
TONGAO TR 6900NHPN Water Quality Analyzer Detection of ammonia nitrogen/Total phosphorus/Total nitrogen/turbidity/suspended solids
$ 3304.00 -
TONGAO TR-106H residual chlorine total chlorine Tester
$ 786.00 -
JINGQI COD-5B Practical COD Speed Tester
$ 1316.00 -
LEICI DGB-402A Portable residual chlorine total chlorine Tester
$ 371.00
Introduction
TDSscan10L pen-type TDS meter is a low-range pen-type TDS meter, which is suitable for measuring the total dissolved solids (TDS) value of low-concentration liquids such as pure water and distilled water. Measurement accuracy: 1% FS.
Features
• Low range pen TDS meter with platinum electrode sensor.
• 1-point key calibration, user-defined calibration solution can be used.
• Adjustable TDS conversion factor to ensure accurate measurement of different water qualities.
• Automatic temperature compensation to ensure accurate measurement over the full range.
• Key data lock, immediately retain the current display value.
• Automatic power off, effectively saving battery power consumption.
• Replaceable electrodes reduce instrument use and maintenance costs.
• Fully waterproof features, to ensure the complete protection of the instrument in harsh environments.
Application
• Measurement of purified water and drinking water
• Educational and other industrial applications
Bante TDSscan10L-K Pen TDS meterSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | 0.5~100.0ppm |
| Accuracy | ±1%FS |
| resolution | 0.1ppm |
| Calibrated point | 1 point |
| Calibrating fluid | 71.8ppm |
| Temperature compensation range | 0~50 ℃, automatic |
| TDS conversion factor | 0.4~ 1.0 (default 0.5) |
| Standardized temperature | 25℃ |
| shutdown mode | Manual or automatic (after 8 minutes of no button operation) |
| Sensors Type | ECSCAN-C1-100K型 |
| Connector | 6-Pin |
| Environment temperature | 0~60℃,32~140°F |
| Power | G13A button battery 3 pcs |
| Battery life | About 150 hours |
| Dimensions | 185 * F40mm |
| Instrument Weight | 100g |
| Optional accessories | TDS standard solution, ECscan-C1-100K type Conductivity Detector electrode |
| Packaging Dimensions | 280*230*80mm |
| Encasement Weight | 1.5kg |
Bante TDSscan10L-K Pen TDS meter Packing list
Host X1, TDS standard liquid (71.8ppm) X1, G13A button battery X1, plastic carrying case X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
