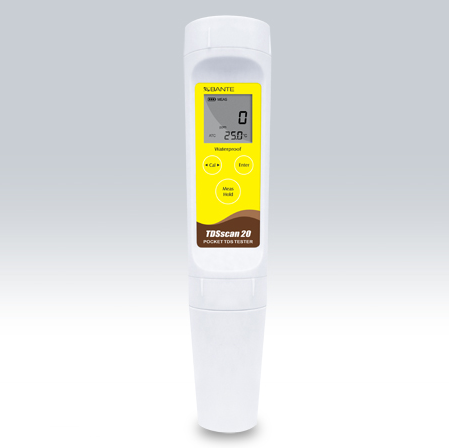

General TDSscan20 pen TDS meter, multi-range pen TDS meter
Multi-range pen TDS meter, 1 to 3 point calibrate, 5 function parameters can be customized in the setting menu, the meter is suitable for measurement of total dissolved solids of liquids, measurement accuracy: 1% F.S.
Bante
TDSscan20
-
BANTE S60 wireless bluetooth Dissolved Oxygen Meter dissolved oxygen concentration BOD OUR SOUR
$ 357.00 -
LEICI CO-572 Chemical Oxygen Demand Tester
$ 1535.00 -
KeDiDa CT-6321 pH meter/Conductivity Detector Range: 0.0~14.0PH/0.0~199.9US
$ 127.00 -
YUEFENG SZ8115 Ammonia nitrogen analyzer, ammonia nitrogen content analyzer 0~ 10mg/L
$ 343.00 -
YUEFENG SZ81111 Chlorine dioxide analyzer, chlorine dioxide concentration analysis 0~ 5.0mg/L
$ 343.00
Introduction
TDSscan20 pen type TDS meter multi-range pen type TDS meter, 1 to 3 point key calibration, automatic temperature compensation, built-in system menu can customize 5 functional parameters, the instrument is suitable for measuring the total dissolved solids (TDS) value of various liquids, Measurement accuracy: 1% FS.
Features
• Multi-range pen-type TDS meter, covering three ranges of low, medium and high.
• Platinum electrode sensor, providing fast and stable measurement results.
• 1 to 3 point key calibration, automatic identification of TDS standard solution.
• Adjustable TDS conversion factor to ensure accurate measurement of different water qualities.
• Automatic temperature compensation to ensure accurate measurement over the full range.
• Automatic end point lock retains stable readings for viewing or recording.
• Low battery warning icon to indicate remaining battery power.
• Automatic power off, effectively saving battery power consumption.
• Built-in system menu, which can customize the number of calibration points, temperature unit, automatic or manual data lock, timing or manual shutdown and other 5 functional parameters.
• One key reset (Reset), automatically restore the meter to the factory default settings.
• Replaceable electrodes reduce instrument maintenance and use costs.
• Full waterproof performance to ensure the complete protection of the instrument in harsh environments.
Application
• Research and Education
• Water and Wastewater Treatment
• Environmental monitoring
• Electroplating and printing industry
• Fish farming and hydroponics
• Drinking water and other industrial applications

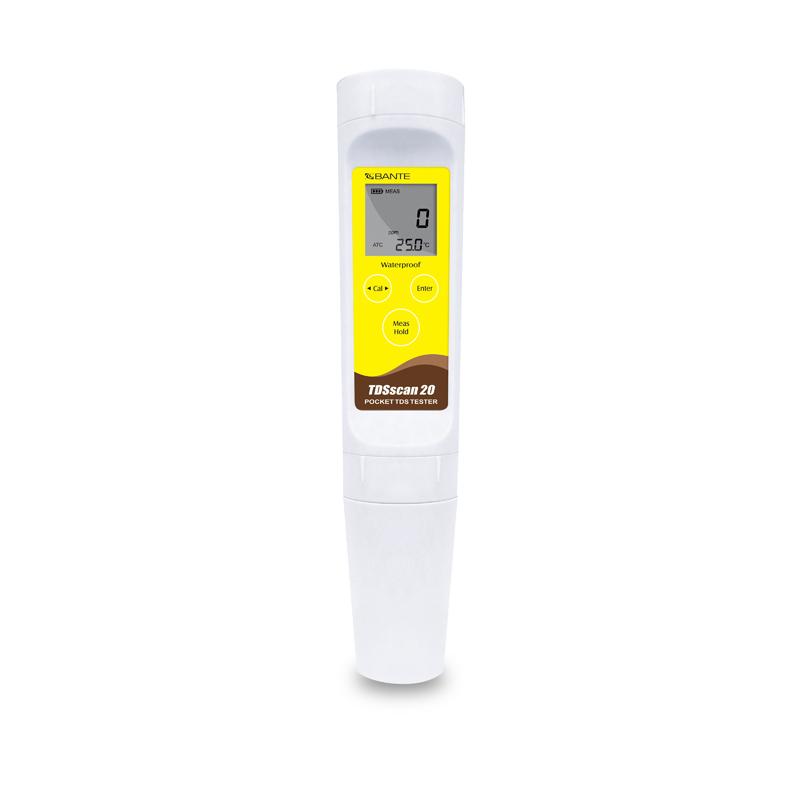

Bante TDSscan20 Pen TDS meterSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | 0~10.00, 100.0, 1000ppm, 10.00ppt (up to 20ppt) |
| Accuracy | ±1%FS |
| resolution | 0.01, 0.1, 1 |
| Calibrated point | 1 to 3 point |
| Calibrating fluid | 71.8ppm, 744.7ppm, 7447ppm |
| Temperature compensation range | 0~50 ℃, 32~ 122 ° F, Automatic |
| TDS conversion factor | 0.1~ 1.0 (default 0.5) |
| Standardized temperature | 25℃ |
| shutdown mode | Manual or automatic (after 8 minutes of no button operation) |
| Sensors Type | ECSCAN-C1-10K型 |
| Environment temperature | 0~60℃,32~140°F |
| Power | 2 AAA batteries |
| Battery life | About 200 hours |
| Dimensions | 185 * F40mm |
| Instrument Weight | 100g |
| Optional accessories | TDS standard solution, ECscan-C1-10K type Conductivity Detector electrode |
| Packaging Dimensions | 280*230*80mm |
| Encasement Weight | 1.5kg |
Bante TDSscan20 Pen TDS meter Packing list
Host X1, TDS standard liquid (71.8ppm, 744.7ppm, 7447ppm) X1, AAA battery X1, plastic carrying case X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
