CREATE CX-9900 Light spectrum analyzer, grating focal length 400mm

Introduction

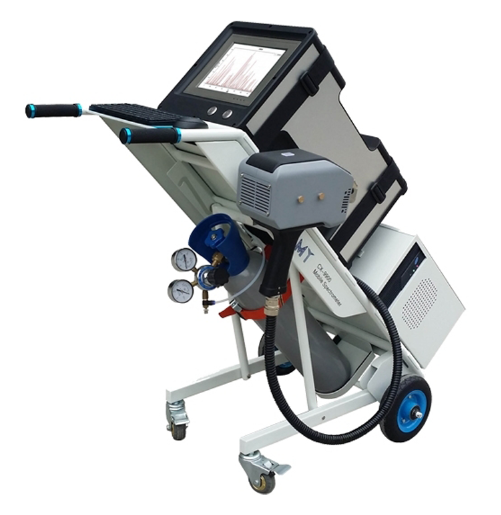

The CX-9900 mobile spectrometer has the characteristics of high analytical accuracy, good stability, easy operation, flexible application, small size and light weight. It can complete the identification, sorting and composition analysis of alloy materials in the process of factory incoming materials and product quality control. Basic structural material analysis of petrochemical equipment, composition analysis in the scrap metal recycling process, etc.

CX-9900 mobile spectrometer is an on-site metal analyzer that uses CCD optical technology and modern microelectronic components. It is suitable for large-scale non-metallic elements that need to detect C, P, S, B, Sn, As and N and are inconvenient to cut. Metal components, CX-9900 mobile spectrometer is your best choice. It can analyze various forms of metal materials, such as pipes, bars, valves, welds, oil tanks, castings, etc. Whether inside or outside the factory, in a scrap plant, an underwater submarine cabin, or on a high-altitude ladder in a chemical plant, the CX-9900 mobile spectrometer can meet your analysis requirements.

Features

1. Optical system:

The CX-9900 adopts an optical system that was only used in laboratory instruments in the past, and has been specially improved to meet the needs of portable spectrometers. It can receive all element spectral lines in the analysis Wavelength range (170nm-530nm), with new accuracy and stability. Each component in the optical system, such as the grating (focal length 400mm) or the high-precision CCD Detector, is well fixed and protected, making the instrument dustproof, shockproof, sturdy and durable.

• Laboratory-grade spark excitation frequency 100-1000Hz

2. Stimulating gun:

A standard excitation gun can use a spark light source for precise composition analysis of alloys including C elements, or an arc light source for material sorting and grade identification. A specially designed small optical system can be used to analyze P, S, B, Sn and As in steel. The plug-in interface makes light source conversion very simple and fast.​

3. Electrodes and fixtures:

The replacement of electrodes and fixtures does not require the use of tools, making it simple and fast. The conversion from spark light source to arc light source only takes a few seconds. Equipped with a variety of clamps to adapt to samples of different shapes and sizes, it can easily detect pipes, wires, small samples and other specially shaped surfaces.

4. Interface:

The CX-9900 mobile spectrometer provides USB interface, printer, display and network interface.

5. Battery pack:

The effective light source with power-saving function ensures the CX-9900 mobile spectrometer, and the CCD can be powered by a battery pack. It can be activated hundreds of times on a single charge. The battery can be carried in a car or backpack and can be easily connected to the instrument via a socket. This allows the instrument to be used in almost all situations.

6. Car:

The trolley can be integrated with the instrument to ensure the safety of the instrument during work and the flexibility of movement. The ergonomic design allows the instrument to be operated at a convenient position and height. If necessary, the trolley can be divided into three parts to facilitate transportation.

7. ICAL:

ICAL (intelligent calibration function) logic system can display and control the status of the instrument so that the instrument is not affected by changes in the external environment, which can eliminate the need for recalibration due to changes in location and temperature.

8. APF extension software:

The APF extension software can automatically identify the matrix of the sample being tested and automatically select the applicable analysis program. This feature can save users a lot of time when detecting unknown metals.

9. WINDOWS software:

WINDOWS provides a variety of support functions and options, and the operation is very simple. A control system with diagnostic capabilities supported by hardware and software ensures correct operation by the instrument operator.

10. Scalability:

Changing and updating analysis programs on the CX-9900 CCD is easier than with any other spectrometer. ICAL logic system and professional CCD technology make the instrument more convenient and easy to adapt to changing analysis requirements. To add substrates and elements, you only need to add software, without changing the hardware.

host x1, manual x1, certificate x1, warranty card x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
