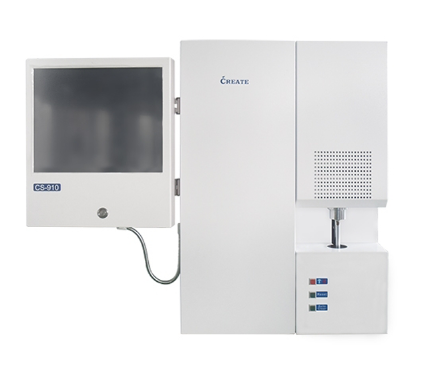

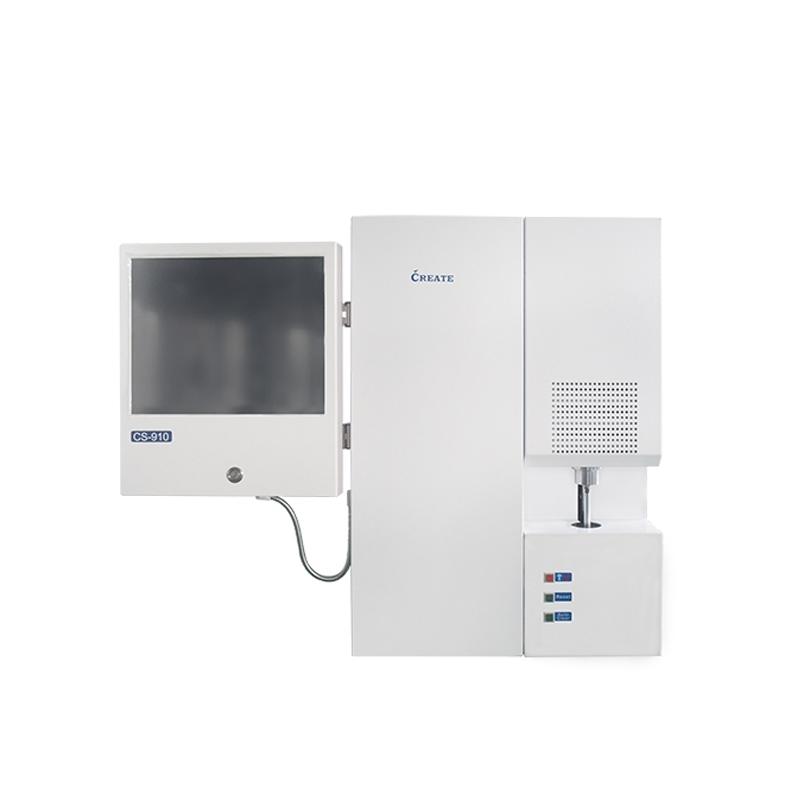

CREATE CS-910 High frequency infrared carbon sulfur instrument measurement carbon/sulfur
The minimum reading of the CREATE CS-910 high frequency infrared carbon sulfur meter is 0.00001, the Weighing range of the high frequency infrared carbon sulfur meter is 0-100g, and the CS-910 high frequency infrared carbon sulfur meter can dynamically display the data and carbon and sulfur release in the analysis process. Linear dispersion.
CREATE
CS-910
-
CREATE CS-910 High frequency infrared carbon sulfur instrument measurement carbon/sulfur
$ 14000.00 -
CREATE CX-9500 Light spectrum analyzer
$ 17482.00 -
CREATE CX-9900 Light spectrum analyzer, grating focal length 400mm
$ 30851.00 -
CREATE CX-9800L Light spectrum analyzer Wavelength range 160-800nm
$ 23312.00 -
CREATE CX-9600 Direct Reading Light spectrometer for the determination of trace carbon (C)/phosphorus (P)/sulfur (S) elements
$ 19503.00
Features
1. Desktop design, beautiful and elegant appearance;
2. Key components such as Detectors, filters, and solenoid valves are all imported components;
3. The upgraded functional design of dual carbon pools and dual sulfur pools improves the precision and accuracy of high carbon, high sulfur and ultra-low carbon and ultra-low sulfur measurements;
4. The modular design of the entire machine control circuit improves the reliability of the instrument;
5. WINDOWS full Chinese operation interface, easy to operate and easy to master;
6. The software has complete functions, providing more than 40 functions such as file help, system monitoring, channel selection, mathematical statistics, result correction, breakpoint correction, and system diagnosis;
7. Dynamically display various data and carbon and sulfur release curves during the analysis process;
8. The measurement linear range is wide and expandable;
9. Use carbon gas reforming furnace technology to ensure that a small amount of CO gas after combustion is converted into CO2 gas, improving the accuracy of carbon detection;
10. The high-frequency circuit is reasonably designed and uses military cermet-encapsulated 6KVA high-frequency power tubes to reduce the load on the combustion system and increase the service life;
11. High-frequency furnace programmed heating, fully automatic constant temperature heating furnace head, fully automatic cleaning, fully automatic backflush and ash removal.
12. The new eighth-generation automatic installation software operating system;
CREATE CS-910 High frequency infrared carbon sulfur meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 1, Measurement Range: carbon: 0.00002% -15.0000% (double pool automatically expanded to 99.99%) sulfur: 0.00002% - 5.0000% (double pool automatically expanded to 99.99%) |
| minimum reading | 0.00001 |
| analysis error | Carbon meets ISO9556 standard, sulfur meets ISO4935 standard |
| Analysis time | Adjustable in 25-60 seconds, usually around 35 seconds |
| Electronic Balance | Weighing range: 0-100g Reading Accuracy: 0.0001g (CS-910 high frequency infrared carbon sulfur analyzer with 1/10,000 Balance) |
| High frequency furnace | Power: 3.5KVA Frequency: 20MHz |
| Channel Settings | 10 channels for carbon and 10 channels for sulfur (CS-910 high-frequency infrared carbon and sulfur analyzer technology is advanced in China) |
| Sampling speed | 25 times/sec A/D conversion Frequency: 120Hz (CS-910 high frequency infrared carbon sulfur analyzer sampling speed domestic advanced) |
| Host size | Height 800mm × width 540mm × thickness 600mm (CS-910 high-frequency infrared carbon and sulfur analyzer is the smallest and most integrated precision model in China) |
CREATE CS-910 High frequency infrared carbon sulfur meter Packing list
host x1, manual x1, certificate x1, warranty card x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
