CHNSPEC CS-300 single angle gloss meter

Single angle 60 °, range 0~1000GU, Japanese Sensors, American high-end op amp chips and processor chips, to meet the JG 696-level working Glossmeter requirements, using dual optical path patented technology, Stability 0.2GU.

Brand

SKU: NB001494

CHNSpec

Model

Price

$ 319.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

CHNSpec shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

CHNSpec CS-300 Gloss meterOverview
Specifications
Comments
FAQs

CS-300

Gloss meter

Overview of CS-300 Single Angle Gloss Meter

CHNSpec CS-300 single-angle gloss meter ( measurement angle: 60° ) is mainly used to measure the surface gloss of materials in industries such as spray coating, plastic, printing, metal, ceramics, building materials, leather, and paint. Compliant standards include: DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5 and JJG696, etc.

Features of CS-300 Single Angle Gloss Meter

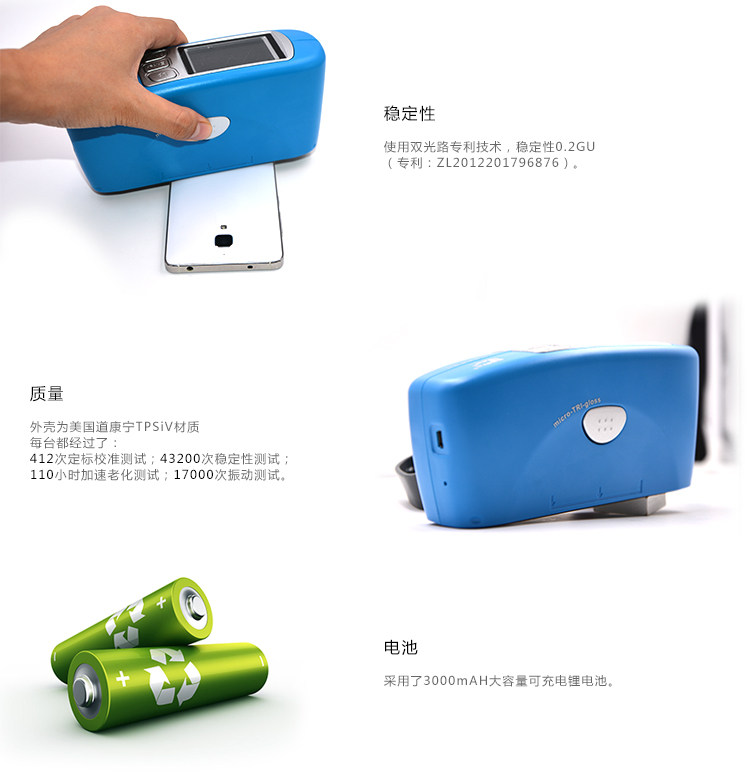

Advantages of CS-300 single angle gloss meter

CHNSpec CS-300 Gloss meterSpecifications

LIST	VALUE
Measurement angle	60°
Measurement range	0~1000GU
Repeatability	0~100GU：0.2GU；100~2000GU：0.2%
Measuring Areas	9*15mm
Measurement mode	Average mode, master standard and sample measurement
Graduation	0.1GU\|1GU
Standards	DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5 and JJG696, etc
Interface	USB, Bluetooth (optional)
Data storage	Can store 100 master standards, 10,000 samples
Operating language	Simplified Chinese, English
Dimensions	1655177mm
Weight	Approx. 400g
Power Supply	3000mAh lithium battery
Accuracy	Meet JJG 696 level 1 glossmeter requirements
Measurement time	1s
Operating temperature	0~40℃
Relative Humidity	< 85% RH, no condensation
Scope of application	Paints, Coatings, inks, Eletroplating, Plastic Electronics, Hardware, etc

CHNSpec CS-300 Gloss meter Packing list

Host × 1, 5V/1A charger × 1, USB data cable × 1, manual × 1, CD × 1, correction standard board × 1, national metrology authentication

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How many times can this CS-300 single angle gloss meter test data?

[A]

Hello, you can store 100 master standards and 1w samples.

[Q]

Can this color spectrum Gloss meter measure floor gloss?

[A]

Hello, it's OK.

[Q]

Is the CS-300 gloss meter a secondary Measurement?

[A]

Hello, yes, Secondary Measurement.

[Q]

What are the measurement modes of this gloss instrument?

[A]

Hello, this Gloss meter has average mode, master standard and sample measurement.

[Q]

Why can't the CS-300 gloss meter connect to USB?

[A]

Hello, please confirm whether the USB port is connected normally. In addition, is the USB driver installed on the computer?
