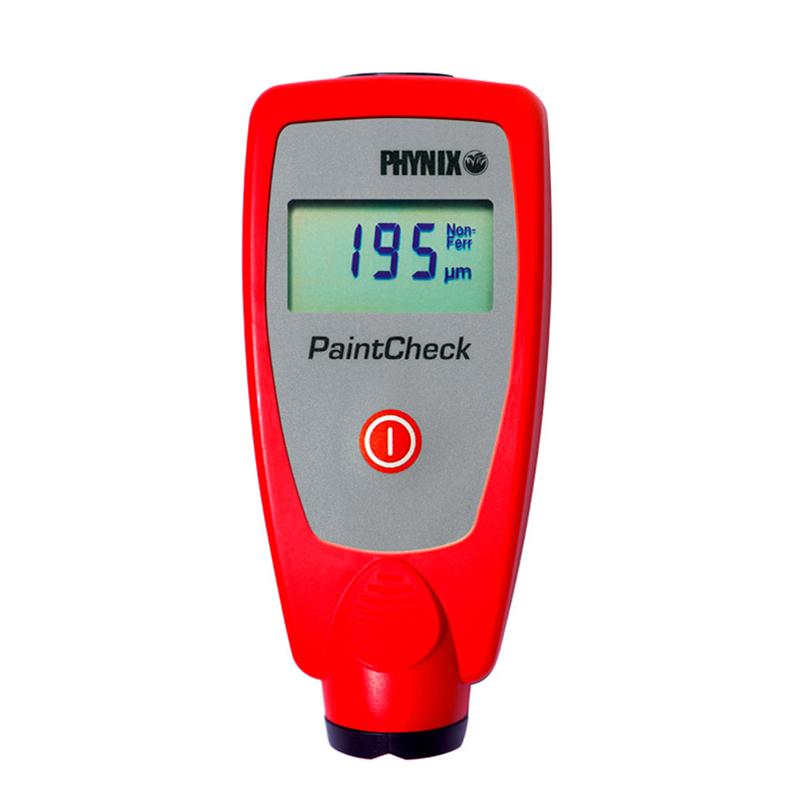

Germany PHYNIX PaintCheck FN paints Film thickness meter magnetic Induction eddy Current dual-use Film thickness meter
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~2000μm, error range +/- 5%, resolution 1μm, can automatically identify different metal substrates, including iron/steel and non-ferrous metals.
PHYNIX
PaintCheck FN
Easy x I-FN HR
-
Germany Nix QNix 4500 + FN1.2 integrated dual-use coating platings Thickness Gauge FeNFe dual-use probe 0-1200μm
$ 863.00 -
Defelsko N built-in detachable probe
$ 643.00 -
LEEB LBTQ20-3 Cladding Thickness Gauge (Multifunctional) + F1/90 ° Probe
$ 848.00 -
AMITTARI AC-112-200F Coating Thickness Gauge Iron-based film thickness Measurement Instrument
$ 610.00 -
TQC SP1113 Destructiveness Thickness Gauge Blade 3 Blade 5~ 500μm Range
$ 271.00
Overview of the PaintCheck FN Dual-Purpose Film Thickness Gauge
Phoenix, GermanyThe PaintCheck FN Dual-Purpose Film Thickness Gauge is a dual-function coating Thickness Gauge with a built-in tungsten carbide wear probe.The PaintCheck FN Dual-Purpose Film Thickness Gauge is suitable for all metal substrate testing and is able to automatically identify different metal substrates, including iron/steel and non-ferrous metals.PaintCheck FN Dual-Purpose Film Thickness GaugeThe measurement range is 0~2000 microns.
PaintCheck FN dual-purpose Film Thickness Gauge function
1) Display reading 4 digits and letters, 10mm high
2) Factory calibrated, no need to manually calibrate again
3) The protection level of the dual-purpose film thickness meter is IP52, which has good dustproof and waterproof characteristics
4) The built-in probe is made of tungsten carbide, which has good wear resistance

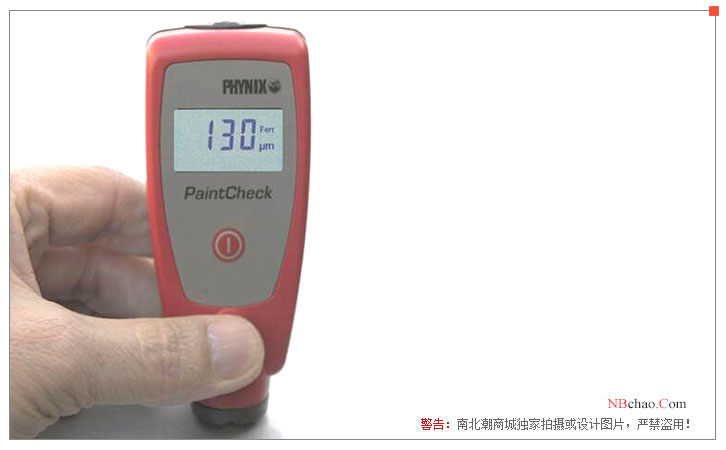

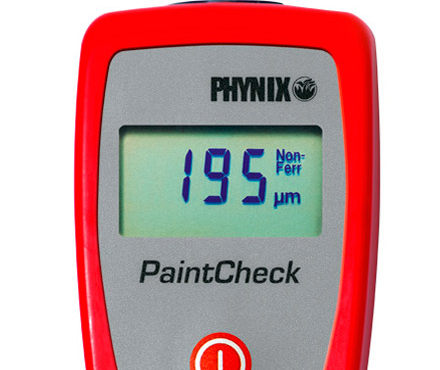

Illustration of the PaintCheck FN dual-purpose Film Thickness Gauge
PHYNIX PaintCheck FN Film thickness meter for dual-useSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~2000μm |
| margin of error | ±5% |
| resolution | 1μm |
| Minimum radius of curvature | Convex 25mm; Concave 50mm |
| thinnest substrate | 0.75mm(F)；0.25mm(N) |
| probe | FN integrated probe |
| icon function | none |
| Standards | DIN、ISO、ASTM、BS |
| Display screen | 4 digits and letters, 10 mm high |
| supporting software | none |
| Weight | 90G (including battery) |
| Dimension | 110*50*25mm |
| testing environment | Iron/steel and non-ferrous metals |
| Calibrated mode | Manufacturer calibrated |
| Operating temperature | 0~50℃ |
| Probe contact temperature | -15~60℃ |
| Minimum headroom | 125mm |
| Minimum measurement surface | 40*40mm |
| Protection level | IP52 |
PHYNIX PaintCheck FN Film thickness meter for dual-use Packing list
Measurement instrument x1, test foil 200 microns x1, zero standard sheet x1, material package x1, rubber protective cover x1, battery x2, user manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
