JENCO 692 online acid alkalinity transmitter 0.00~14.00pH
Isolated 4~ 20mA output, 0~14/0.01 pH, LCD display, automatic temperature compensation 0~100 ℃
JENCO
692
-
E-PHScan-ST-10K pH electrode
$ 92.00 -
HANNA HI99165 Waterproof Portable pH Meter for Cheese
$ 825.00 -
LEICI 962102 Washable pH composite electrode is suitable for samples with high Pollution properties such as emulsion, suspension, viscosity, etc
$ 240.00 -
DDKSIC 201PRO composite pH electrode - double-splice design for water sample measurement in wastewater, pool environment monitoring and more
$ 113.00 -
Kodida CT-6658 PH/ORP Controller, Industrial pHmeter with electrodes CT-1001
$ 239.00

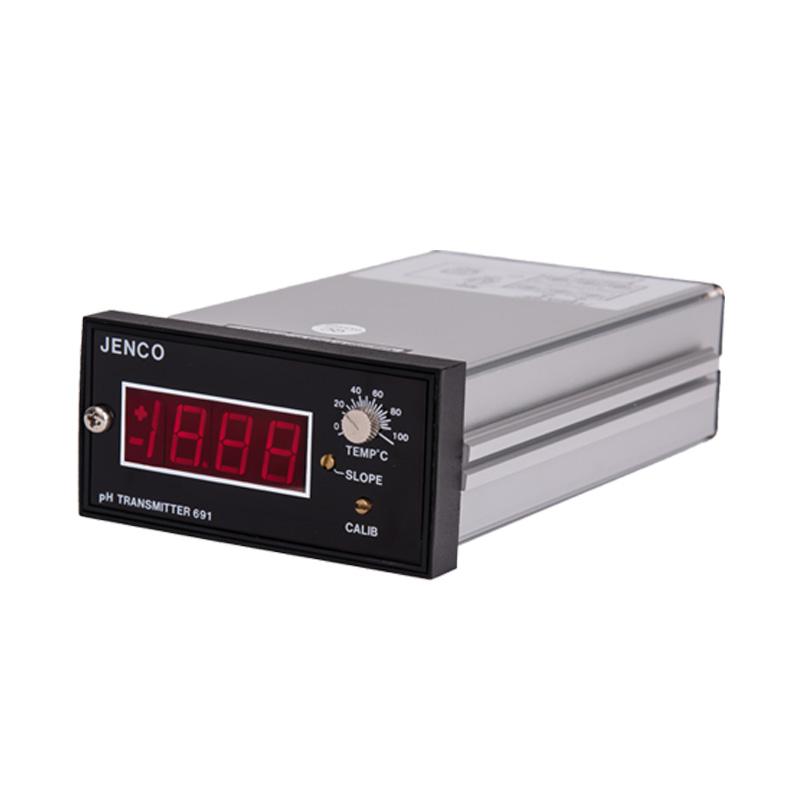

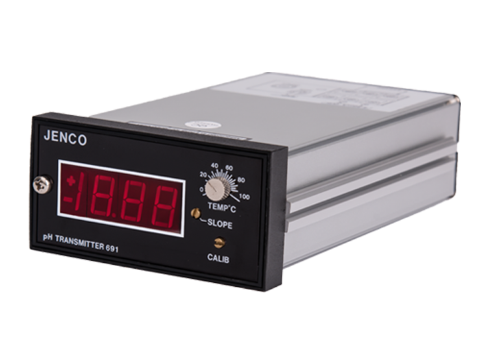

Introducing the JENCO 691/692 In-Line pH Transmitter
Standard 1/8 aluminum case body
LED Display(691)LCD Display(692)
(691 general and extended two modes) 4~20mA isolated current output
Temperature compensation function (691-manual temperature compensation/692-automatic temperature compensation)
Affordable pH transmitters
Model 691/692 Industrial In-Line pH Transmitter Optional Accessories
| Optional | ||
| pH electrode | IP-600-1 | Wastewater treatment with high turbidity |
| IP-600-10 | General wastewater treatment field | |
| IP-600-9（PT） | General wastewater treatment field (used in conjunction with 692) | |
| Sheath tube | IP-600-9PT | 1 meter tube length |
| Sealed box | IP-600-1NPT | Dial-mounted |
| IP-600-3CNPT | Wall-mounted | |
JENCO 692 Online acid alkalinity transmitterSpecifications
| LIST | VALUE |
|---|---|
| PH range | 0.00~14.00pH |
| PH Measurement Accuracy | ±0.1% |
| Resolution | 0.01pH |
| Impedance | >10^12Ω |
| Power Supply | 230VAC,50/60Hz |
| Dimensions | 96*48*167mm |
| Current output range | 4~ 20mA isolated current output |
| opening size | 92*45mm |
| Display | LCD |
| Shop Accessories | pH electrode, sheath, sealing box |
JENCO 692 Online acid alkalinity transmitter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
