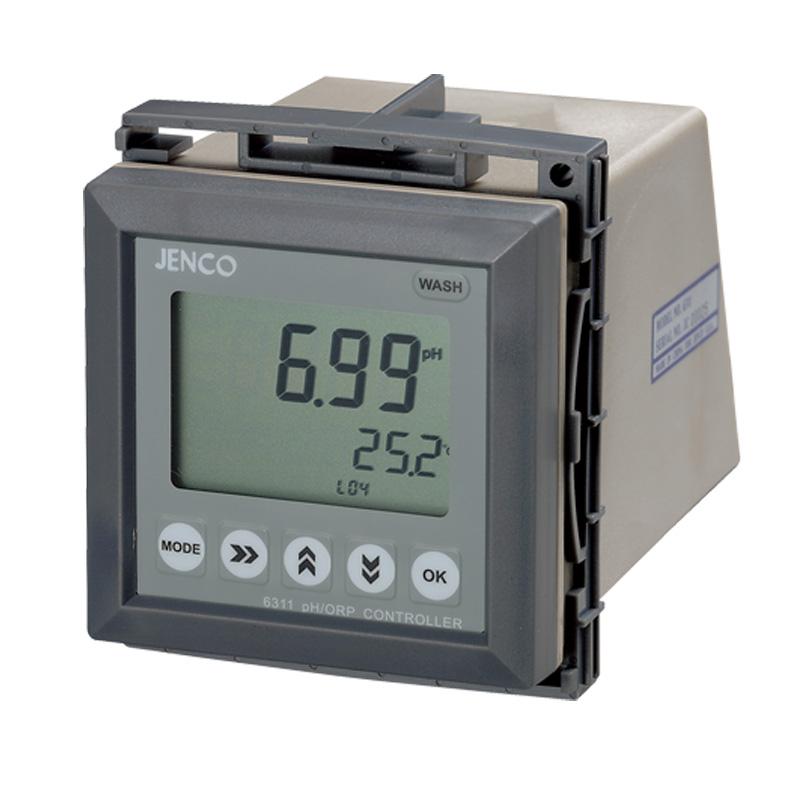

JENCO 6311 (set) pH oxidation temperature controller

JENCO 6311 (set) pH oxidation reduction temperature controller

JENCO6311pH oxidation reduction temperature controller The model is 4~ 20mA reversible, with isolation current output, users can set their own, 6311 is a Measurement range of -2.00to16.00ph, Measurement range and Measurement accuracy are +/- 0.01pH +/- 1 word/0.01pH laboratory pH oxidation reduction temperature controller.

Brand

SKU: NB015180

JENCO

Model

6311 (set)

Get Quote

JENCO shop

Information

Datasheet Catalog

What else did others buy

HANNA HI99171 Waterproof Portable pH Meter for leather/paper

$ 870.00
HANNA HI981034 acidity pH Tester, milk pH Tester, open liquid conical glass

$ 262.00
LEICI pH meter PHB-4 0.1pH resolution Manual warming

$ 304.00
Bante210-CN Laboratory acid alkalinity Tester

$ 276.00
HANNA HI10482 Bluetooth Glass acidity electrode for wine/juice

$ 562.00

Genuinegoods

JENCO 6311 (set) pH oxidation temperature controllerOverview
Specifications
Comments
FAQs

6311 (set)

pH oxidation temperature controller

Introducing the JENCO 6311 (set) in-line pH redox temperature controller

Standard 1/4 DIN waterproof body design
Liquid crystal display, which can display pH value, ORP value, and temperature value at the same time
pH electrode efficiency display
4~20mA reversible, with isolated current output, the output range can be set by the user
Four sets of pH (ORP) relay control/one set of cleaning relay control, control point/hysteresis width can be set by the user
Automatic temperature compensation, user-selectable temperature probe (PT1000, TH10K, BALCO3K)
Power-off correction value memory function
RS-485 communication interface is adopted
The products have passed CE certification
With IP-600-9TH (5m)

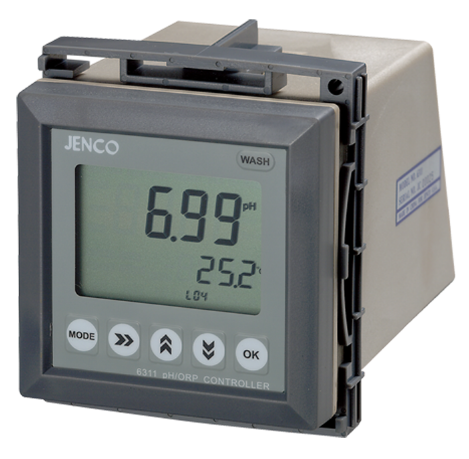

JENCO 6311 (set) pH Redox Temperature Controller

pH electrode

Model	Introduction
ST873	High temperature field
IP-600-1	Biological fermentation at room temperature and wastewater treatment with high turbidity
IP-600-10	General wastewater treatment field
IP-600-9(TH)	With temperature compensation, in the field of general wastewater treatment
ORP
IR-500-9N	General wastewater treatment field
IR-500-8	General wastewater treatment field

Sheath tube

Model	Introduction
009A	1 meter tube length

Sealed box

Model	Introduction
011-200-00	Dial-mounted
012-200-00	Wall-mounted

JENCO 6311 (set) pH oxidation temperature controllerSpecifications

LIST	VALUE
PH range	-2.00~16.00pH
PH Measurement Accuracy	±0.01pH
Resolution	0.01pH
Power Supply	110或230VAC,50/60Hz
Dimensions	9696148mm
opening size	92*92mm
Measurement range mV	-2500~2500mV
mV resolution	1mV
Measurement Accuracy of mV	±0.1%
Measurement range	-10.0~120.0℃
Temperature Resolution	0.1℃
Measurement Accuracy	±0.3℃
Current output range	4~ 20mA reversible, isolated current output
Insulation Voltage/maximum load	500VDC/550Ω
Relay Control Output/Maximum Load	System ON/OFF control/2.5A/230VAC
protective measures	4-Digit password protection
Shop Accessories	PH electrode, ORP electrode, mounting bracket, sealing box

JENCO 6311 (set) pH oxidation temperature controller Packing list

Host X1, IP-600-9TH (5 meters) X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
