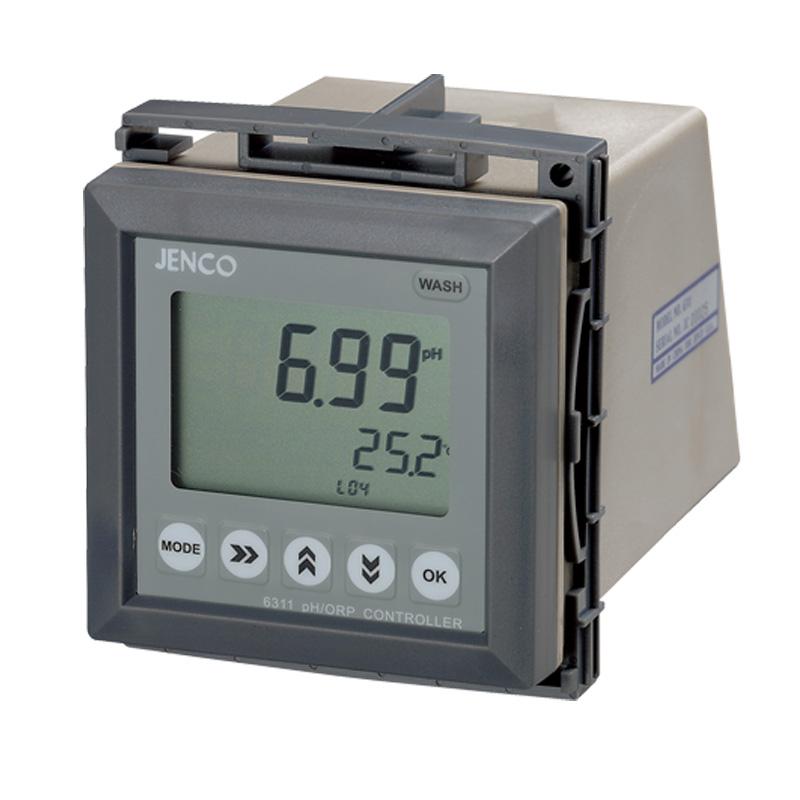

American JENCO 6313 (set) pH oxidation reduction controller

With waterproof design, LCD display, automatic temperature compensation and adjustable temperature probe, support 4~ 20mA isolation current output and two sets of settable relay control. With correction value power-off memory function, and CE certification, suitable for a variety of application fields.

Brand

SKU: NB015181

JENCO

Model

6313 (set)

Get Quote

JENCO shopSE

Information

Datasheet Catalog

What else did others buy

FANGZHOU FZ-861 PH Glass electrode electrolysis solution, Eletroplating solution, chemical reagent PH test

$ 254.00
BANTE BI-620 Industrial Online pH Meter -1.00~15.00pH

$ 347.00
FANGZHOU FZ-650 2-in-1 planar electrode for solid and semi-solid soft, wet surfaces

$ 133.00
LEICI 962242 Planar pH composite electrode for surfaces or droplet samples

$ 242.00
LEICI T-818-A-6 temperature electrode

$ 125.00

Genuinegoods

JENCO 6313 (set) pH oxidation reduction controllerOverview
Specifications
Comments
FAQs

6313 (set)

pH oxidation reduction controller

Features

Standard 1/4DIN waterproof body design
Liquid crystal display, which can display pH (ORP) and temperature values at the same time
4~20mA reversible, with isolated current output, user-configurable
Two sets of relay control, control point, hysteresis width can be set by the user
Automatic temperature compensation for self-selectable temperature probe (PT1000, TH10K, BALCO3K)
Correction value power-off memory function
The products have passed CE certification
With IP-600-9TH (5m)

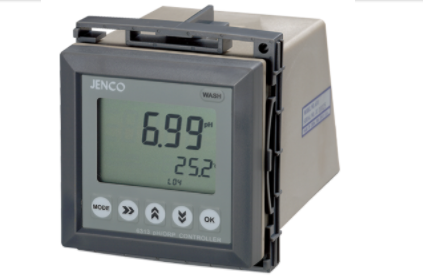

JENCO 6313 (set) pH redox controller

Optional

pH electrode

Model	Introduction
IP-600-9TH	General wastewater treatment (can be used below 70°C for a long time)
ST873	High-temperature field (can be used below 105°C for a long time)
IP-600-1NTH	General wastewater treatment (can be used below 90°C for a long time)
IP-600-3CNTH	Pure water pH composite electrode (pure water, ultrapure water measurement)

Redox electrodes

Model	Introduction
IR-500-8	General water treatment field
IR-500-9	General water treatment field

Sheath tube

Model	Introduction
Sheath tube	009A

Sealed box

Model	Introduction
011-200-00	Dial-mounted
012-200-00	Wall-mounted

JENCO 6313 (set) pH oxidation reduction controllerSpecifications

LIST	VALUE
PH range	-2.00~16.00pH
Measurement Accuracy	+/- 0.1% +/- 1 word
Resolution	0.01pH
Power Supply	110或230VAC,50/60Hz
Dimensions	9696148mm
PH standard solution	US (4.01, 7.00, 10.01) or (4.00, 6.86, 9.18) user-selected, automatic two-point correction
Data storage for pH correction	Yes.
Current output range	A set of 4~ 20mA reversible, isolated current outputs
Insulation Voltage/maximum load	1000VDC/550Ω
opening size	92*92mm
protective measures	4-Digit password protection
Relay Control Output/Maximum Load	Two sets of ON/OFF control in the system 2.5A/230VAC
Measurement range mV	-2500~2500mV
mV resolution	1mV
Measurement Accuracy of mV	±0.1%F.S
Measurement range	-10.0~120.0℃
Temperature Resolution	0.1℃
Measurement Accuracy	±0.3℃
Shop Accessories	PH electrode, ORP electrode, mounting bracket, sealing box

JENCO 6313 (set) pH oxidation reduction controller Packing list

Host X1, IP-600-10 (20 meters) X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
