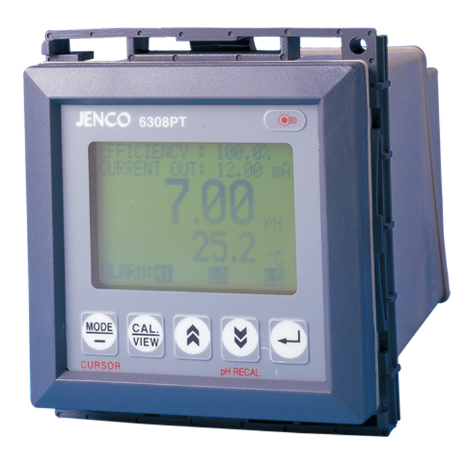

JENCO 6308PT (set) pH temperature controller -2.00~16.00pH

JENCO6308PT pH temperature controller Measurement range is -2.00~16.00pH, accuracy and resolution are +/- 0.01pH +/- 1 word/0.01pH. 6308PT can display pH value and temperature value at the same time pH temperature controller.

Brand

SKU: NB015182

JENCO

Model

6308PT (set)

Get Quote

JENCO shop

Information

Datasheet Catalog Manual

What else did others buy

Genuinegoods

JENCO 6308PT (set) pH temperature controllerOverview
Specifications
Comments
FAQs

6308PT (set)

pH temperature controller

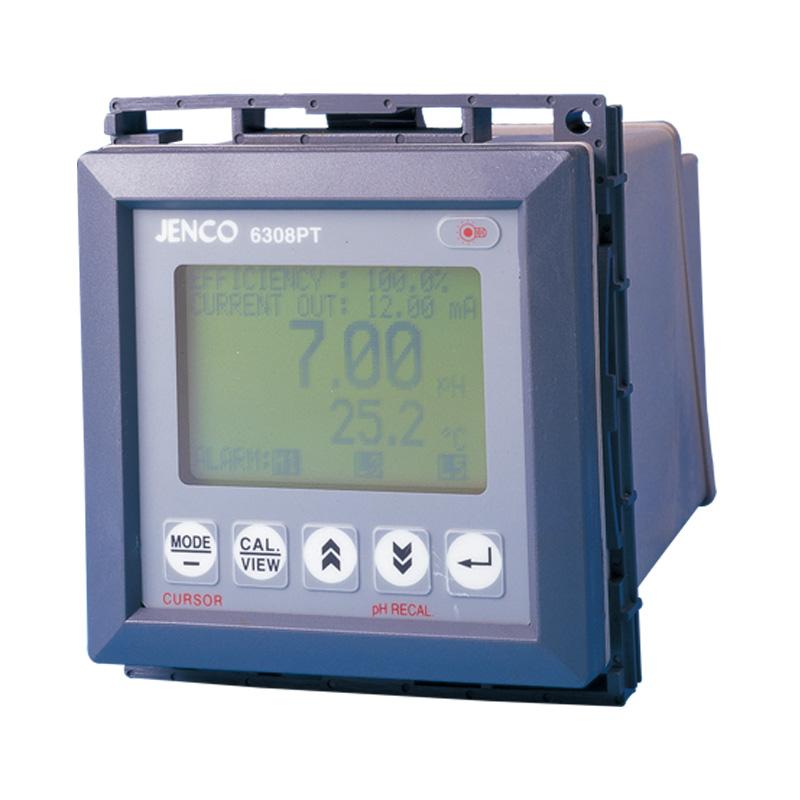

Introducing the JENCO 6308PT In-Line pH Temperature Controller

Standard 1/4 DIN waterproof body design
It can display both pH value and temperature value at the same time
pH electrode efficiency display
4~20mA reversible, with isolated current output, the output range can be set by the user
Four sets of pH relay control/one set of temperature relay control, control point/hysteresis width can be set by the user
It has the function of automatic temperature compensation
Power-off correction value memory function
RS-485 communication interface is adopted
The products have passed CE certification
With IP-600-9TH (5m)

JENCO 6308PT (set) pH temperature controller

Optional

pH electrode

Model	Introduction
IP-600-1	Wastewater treatment with high turbidity
IP-600-10	General wastewater treatment field
IP-600-9(PT)	With temperature compensation, in the field of general wastewater treatment
EASYFERM Plus	In the field of biological fermentation, it can withstand 135°C steam sterilization
IP-600-3CN	Pure water treatment field

Sheath tube

010	EASYFERM Plus
009A	1 meter tube length
EASYFERM Plus sheathed tubing	EASYFERM Plus
The electrodes are seated	Dedicated seating for EASYFERM Plus

Sealed box

011-200-00	Dial-mounted
012-200-00	Wall-mounted

JENCO 6308PT (set) pH temperature controllerSpecifications

LIST	VALUE
PH range	-2.00~16.00pH
PH Measurement Accuracy	±0.01pH
Resolution	0.01pH
Power Supply	110或230VAC,50/60Hz
Dimensions	9696148mm
opening size	92*92mm
Protection level	IP65
Measurement range	-10.0~120.0℃
Temperature Resolution	0.1℃
Measurement Accuracy	±0.3℃
Current output range	4~ 20mA reversible, isolated current output
Insulation Voltage/maximum load	500VDC/550Ω
Relay Control Output/Maximum Load	System ON/OFF control/2.5A/230VAC
protective measures	4-Digit password protection
Preset amplifier Voltage output	+/- 5VDC, maximum output current 20mA
Shop Accessories	PH electrode, mounting bracket, sealing box

JENCO 6308PT (set) pH temperature controller Packing list

Host X1, IP-600-9TH (5 meters) X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Do you have the 6308PT set with three electrodes?

[A]

Yes, electrodes purchased separately.

[Q]

Can this pH temperature controller be applied to GB8325?

[A]
