        PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)

        Germany PHYNIX PaintCheck plus FN dual-use Coating Thickness Gauge

        Measurement range 0~3000μm, error range +/- 5%, minimum curvature radius convex 25mm; concave 50mm, the thinnest substrate 0.75mm (F); 0.25mm (N), can automatically identify different metal substrates, suitable for measurement of iron, steel and non-ferrous metal substrates.

        Brand
        SKU: NB001519
        Germany PHYNIX
        Get Quote
        VS
        PHYNIXLOGO

        PHYNIX shop

        Information
        Datasheet Catalog Manual
        What else did others buy
        Genuinegoods

        • PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)Overview

        • Specifications
        • Comments
        • FAQs
        PaintCheck plus FN
        Dual-use simple Thickness Gauge (enhanced)

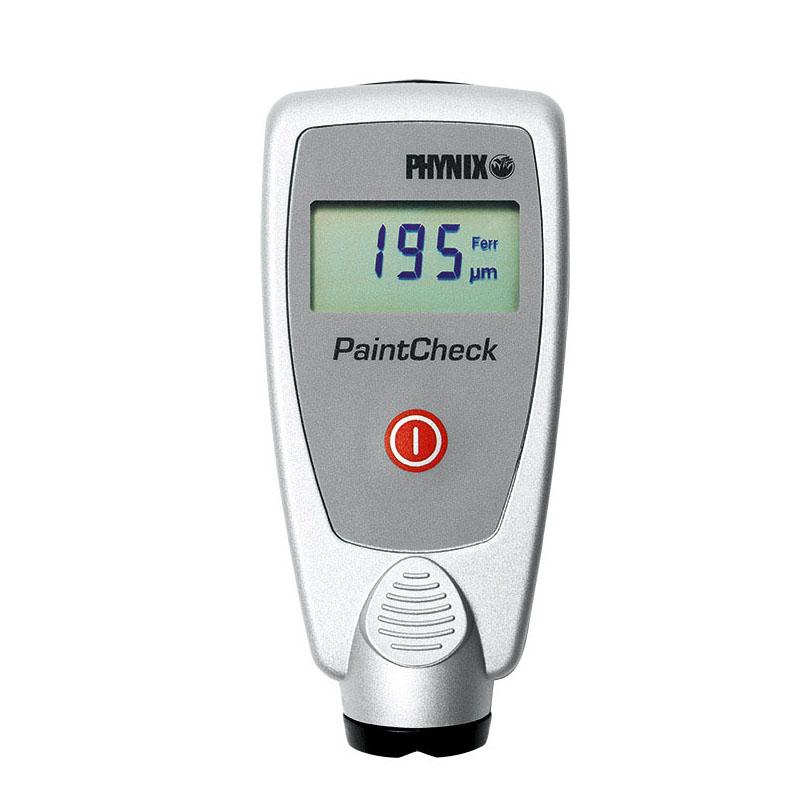

        • Germany PHYNIX PaintCheck plus FN dual-use Coating Thickness Gauge

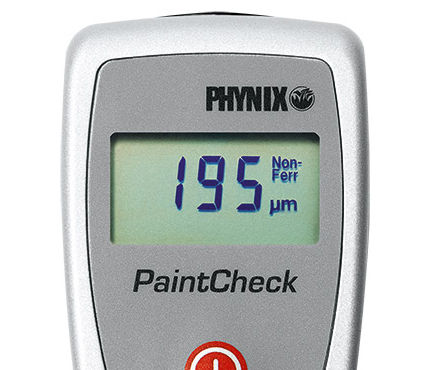

        • Germany PHYNIX PaintCheck plus FN dual-use Coating Thickness Gauge Figure 1
        • PaintCheck puls FN测厚仪屏幕
        Measurement range 0~3000μm, error range +/- 5%, minimum curvature radius convex 25mm; concave 50mm, the thinnest substrate 0.75mm (F); 0.25mm (N), can automatically identify different metal substrates, suitable for measurement of iron, steel and non-ferrous metal substrates.

        PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany


        Coating Thickness Gauge selector

        Overview of the PaintCheck plus FN dual-purpose coating Thickness Gauge

        The Phoenix PaintCheck plus FN dual-purpose coating Thickness Gauge is differentThe PaintCheck FN type is a reinforced coating Thickness Gauge that measures thickness in the range of 0~3000 microns.The PaintCheck plus FN dual-purpose coating Thickness Gauge automatically identifies different metal substrates and is suitable for measuring substrates such as iron, steel, and non-ferrous metals.

        PaintCheck puls FN dual-purpose coating Thickness Gauge application

        It is suitable for measuring coating thickness in powder coating, paint shop, automobile, shipbuilding, building materials industry and other fields.

        Illustration of the PaintCheck plus FN dual-purpose coating Thickness Gauge

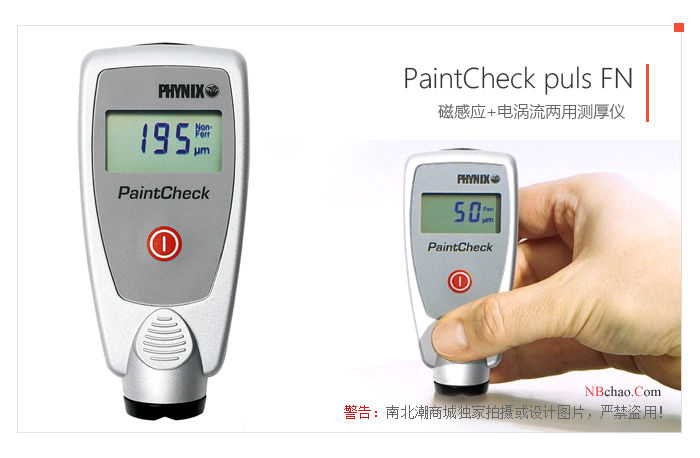

        The PaintCheck puls FN dual-purpose coating Thickness Gauge as a whole

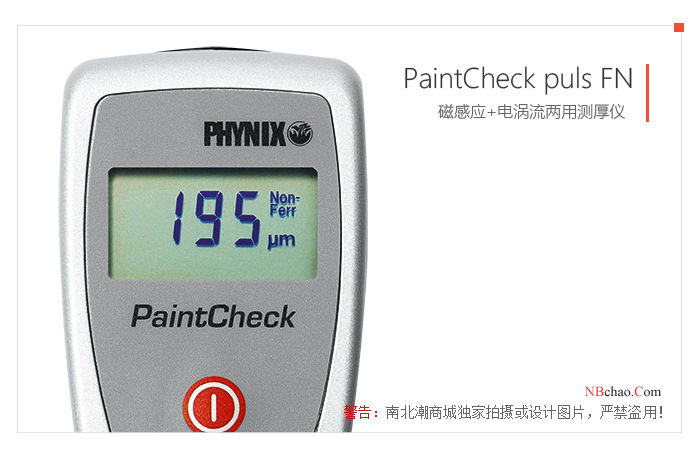

        PaintCheck puls FN dual-purpose coating Thickness Gauge measurement display

        VS

        PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)Specifications

        LIST VALUE
        Measurement principle Magnetic Induction + eddy Current
        Measurement range 0~3000μm
        margin of error ±5%
        resolution 1µm|2µm|5µm
        Minimum radius of curvature Convex 25mm; Concave 50mm
        thinnest substrate 0.75mm(F)；0.25mm(N)
        probe FN integrated probe
        Power Supply 2 * Battery
        Standards DIN、ISO、ASTM、BS
        Calibrated Certificate English, German
        Display screen 4 digits and letters, 10 mm high
        Weight 90G (including battery)
        Dimension 110*50*25mm
        testing environment Iron/steel and non-ferrous metals
        Calibrated mode Manufacturer calibrated
        Operating temperature 0~50℃
        Probe contact temperature -15~60℃
        Minimum headroom 125mm
        Minimum measurement surface 40*40mm
        Protection level IP52

        PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced) Packing list

        Measurement instrument x1, test foil 200 microns x1, zero standard sheet x1, material package x1, rubber protective cover x1, battery x2, user manual x1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Can PaintCheck puls FN be tested for convex surfaces?
        [A]
        Hello, yes, this Coating thickness gauge is designed with a V-shaped groove at the probe position, which is convenient for testing the curved surface. The minimum curvature radius for the convex surface is 25mm.
        [Q]
        PaintCheck puls FN dual-purpose Coating thickness gauge can test what kind of substrate?
        [A]
        Hello, this Coating thickness gauge is dual-use type, which can test iron, steel and non-ferrous metal substrates.
        [Q]
        Hello, do powder lame plating, looking for an imported dual-purpose Coating thickness gauge for basic testing?
        [A]
        Hello, you can take a look at this PHYNIX PaintCheck puls FN dual-purpose Coating thickness gauge, https://www.nbchao.com/p/1519/.
