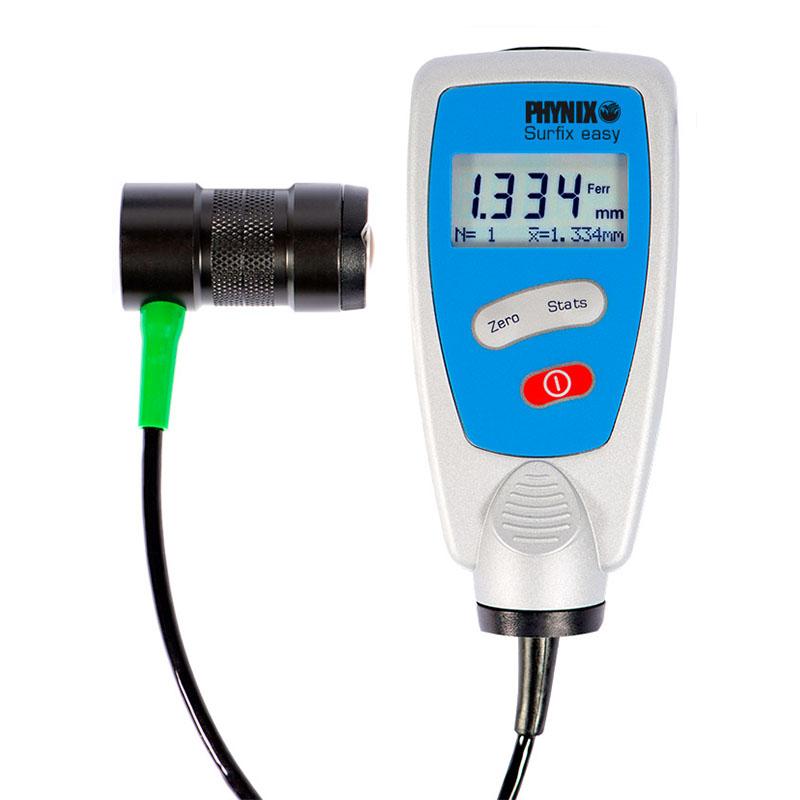

Germany PHYNIX Surfix easy E FN dual function coating platings Thickness Gauge magnetic eddy current external probe
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~3500 µm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, not only the measurement of steel substrates, but also the measurement of non-ferrous metal substrates Coating thickness.
PHYNIX
Surfix® easy E-FN
Surfix SX-FN1.5
Easy x I-FN HR
-
KAIRDA NDT530 (F1) Galvanized Thickness Gauge with magnetic Induction Probe
$ 288.00 -
US Defelsko PosiTector 6000 FNDS1 Composite Coating Thickness Gauge measurement paints and galvanized layer thickness
$ 1535.00 -
Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge eddy current principle, special probe for thick coatings
$ 1661.00 -
German EPK F 2/90 magnetic right angle probe, thickness measurement range 0~2000um
$ 1922.00 -
Defelsko FNDS composite coating probe, zinc/paint
$ 1316.00
PHYNIX, Germany Surfix easy E FN Dual-Function Coating Thickness Gauge GenusThe Surfix Compact Series Thickness Gauge, Model FN Coated Thickness Gauge is an external probe type that offers the advantage of measuring hard-to-reach locations over internal probes.Surfix easy E The FN Dual-Function Coating Thickness Gauge is a magnetic eddy current dual-measuring principle that measures the coating thickness on not only steel substrates, but also non-ferrous metal substrates. The Surfix easy E FN gauge is also characterized by its statistical function, which can count the mean, standard deviation, minimum and maximum values.
Surfix easy E FN is recommended for application
• Paint shop
• Paint and powder coating processes
• Automotive appraisal and auto repair shops
• Steel Structure, Automobile Manufacturing and Shipbuilding
• Product inspection
• Production process
• Final inspection and quality control
•laboratory
Features of Surfix easy E FN:
1) Immediate opening and testing
2) It can measure horizontal, rough and curved surfaces at the same time
3）The easy E FN dual-purpose paint Thickness Gauge has an automatic substrate identification function
4) It is used for iron/steel and non-ferrous metal coating thickness measurement
5) No calibration required
6) With four statistical values:Mean, standard deviation, minimum, maximum
7) The contact area is large and the positioning is accurate
8) Sound signal is emitted during measurement
9) Switchable μm/mils
10) Big manufacturer testing certificate
11) It can detect the zinc layer under the lacquer coating

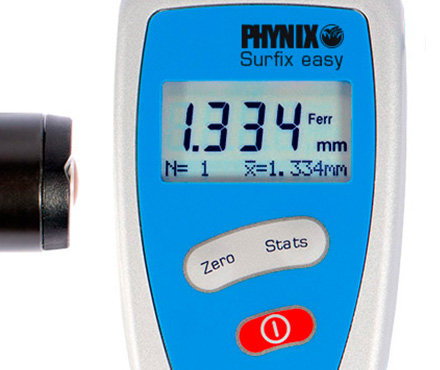

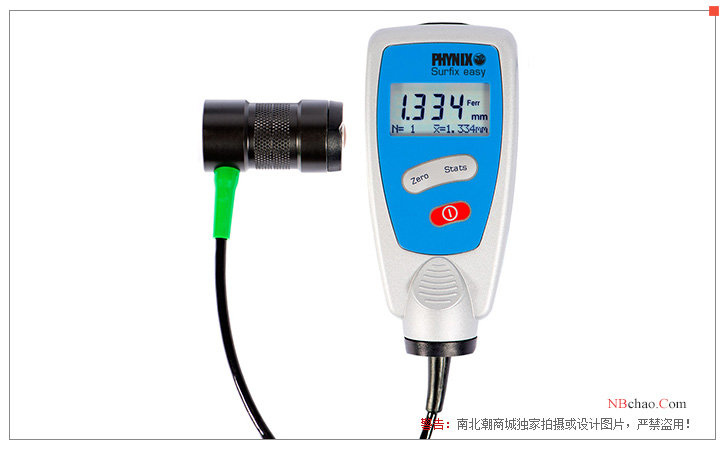

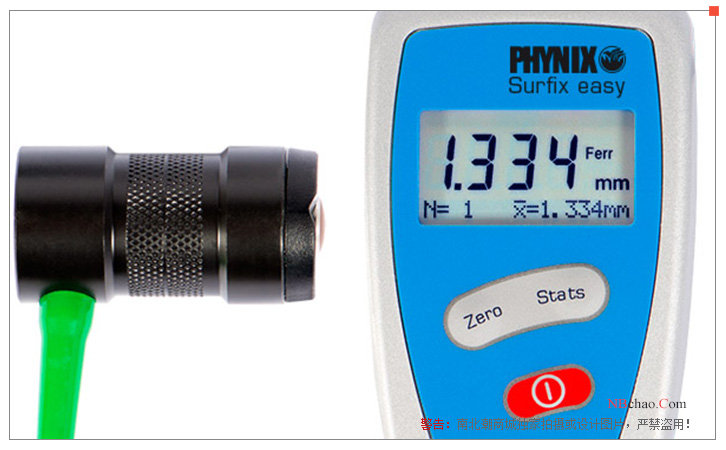

Illustration of the Surfix easy E FN dual-function coating Thickness Gauge
PHYNIX Surfix® easy E-FN Easy-to-use external probe dual-use film thickness meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~3500µm |
| margin of error | ±2% |
| resolution | 1µm|2µm|5µm |
| Minimum measurement surface | Φ10mm |
| Minimum radius of curvature | Convex 5mm; Concave 50mm |
| thinnest substrate | 0.5mm(F)；50μm(N) |
| probe | FN split probe |
| statistical function | MAX Maximum, MIN Minimum, Average, Standard deviation |
| icon function | none |
| Power Supply | 2 * AA 1.5V battery |
| Standards | DIN、ISO、ASTM、BS |
| Calibrated Certificate | Production inspection Certificate |
| system language | German, English or French |
| Display screen | Monochrome ink screen |
| Weight | 140G (including battery) |
| Dimension | 110*50*25mm |
| Calibrated mode | Factory calibrated, zero calibrated |
| Operating temperature | 0~60℃ |
| Probe contact temperature | -15~60℃ |
| Probe size | Φ24*45mm |
| Protection level | IP52 |
| Minimum headroom | 50 mm |
| Data storage | 80 measurement values, can be individually recalled |
PHYNIX Surfix® easy E-FN Easy-to-use external probe dual-use film thickness meter Packing list
Measurement instrument x1, test foil 200 microns x1, zero standard sheet x1, material package x1, rubber protective cover x1, battery x2, user manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
