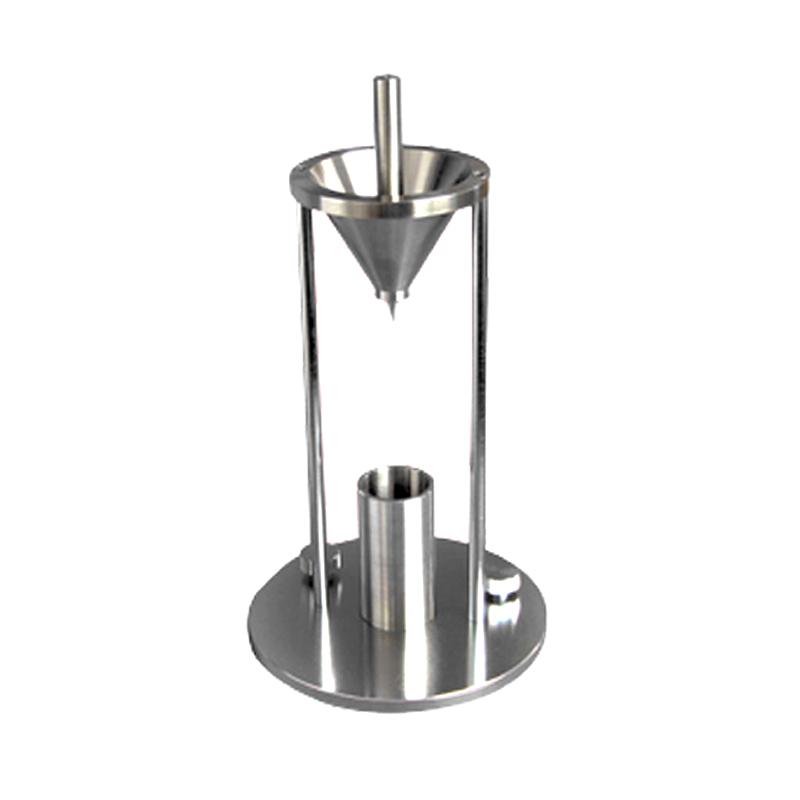

HYLOLOGY HYL-103 Natural Stacking Density Meter
304 stainless steel material, funnel design is 60 ° +/- 0.5 ° cone, flow outlet diameter of 12.7mm, glassgraduates with scale volume 100ml, inner diameter φ 39mm, flow distance of 115mm +/- 2mm, equipped with scraper for removing excess dust to ensure measurement accuracy.
hylology
HYL-103
-
FANGRUI MDY-2 Electronic Liquid Densitometer Liquid Density Special
$ 719.00 -
AE223J density Electronic Balance high-precision density Tester 220g/0.001g
$ 811.00 -
XIONGFA XF-120YT Liquid Density Meter Liquid Density, concentration measurement 0.001~ 120g
$ 438.00 -
HYLOLOGY HY-100 (C) Powder Vibration Density Meter, True Density of Powder Particles
$ 1594.00 -
Xiongfa, liquid special anti-corrosion accessories, solid-liquid dual-purpose Densitometer (accessories)
$ 119.00
Introduction

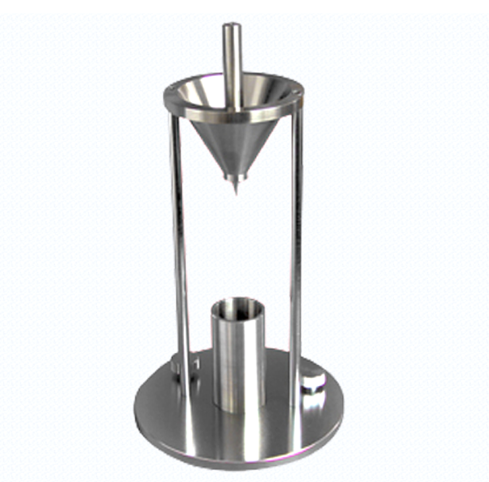

HYL-103 natural stacking method loose density meter is designed and produced according to the provisions of the national standard GB/T 16913.3-1997. This device is suitable for the determination of dust bulk density.
For the collection of samples, please refer to the relevant regulations in GB/T 16913.1-1997 Dust Physical Experiment Methods Part 1: Collection of Sample Dust.
features
The instrument itself is all made of 304 stainless copper material without rust to ensure the accuracy of the instrument. Dust falls freely from the funnel mouth at a certain height to fill the measuring cup; measure the mass of dust per unit volume in the measuring cup in the loose state, that is, the dust accumulation density.
Instrument structure
(1) The funnel (outlet diameter 12.7mm)
is made of stainless steel (304), and the taper of the funnel is 60°±0.5°.
(2) Blocking rod
Made of stainless steel (304), it is used to prevent the dust from falling when the dust is loaded into the funnel.
(3) The balance (prepared by the user)
can weigh up to 1Kg with an accuracy of 0.02g.
(4) Measuring cylinder
This device is equipped with a stainless steel (304 material) measuring cylinder with a volume of 100ml, and the inner diameter of the measuring cylinder is Φ39mm.
(5) Scraper
Stainless steel (304) material, used to remove excess dust when dust is loaded into the funnel.
hylology HYL-103 Natural Stacking Density MeterSpecifications
| LIST | VALUE |
|---|---|
| Funnel material | Stainless steel (304) |
| Funnel outlet diameter | 12.7mm |
| Funnel taper | 60°±0.5 |
| Plugging rod material | Stainless steel (304) for preventing dust from falling when dust is loaded into the funnel |
| Glassgraduates with scale | This device is equipped with a 100ml stainless steel (304) glassgraduates with scale, the inner diameter of glassgraduates with scale is φ 39mm |
| flow distance | Distance between bottom edge of outflow port and top edge of measuringflask 115mm +/- 2mm |
| scraper scraper | Stainless steel (304) for removing excess dust when dust is loaded into the funnel |
hylology HYL-103 Natural Stacking Density Meter Packing list
Host X1, clogging rod X1, cylindrical glassgraduates with scale X1, scraper X1, brush X1, warranty card X1, manual X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
