JINGKELIAN QZM Conical paints Coating particles for grinding

Overview of QZM conical mill

JinKeLian QZM conical mill is a special grinding machine for paint particles, which can be used for paint particles of about 100 microns, and the particles should not be larger than 25 microns after grinding for no more than 5 times. QZM conical grinding can freely adjust the gap between convex grinding and concave grinding between 0.01 mm and 1 mm.

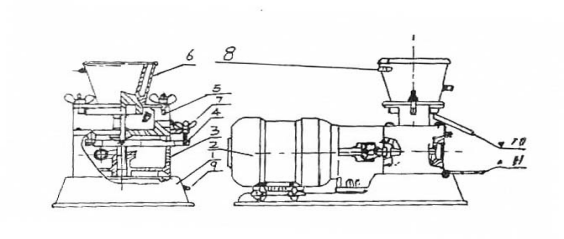

QZM cone mill structure

(1) Machine base supporting the whole machine; (2) Electric motor; (3) Transmission; (4) Adjusting bracket; (5) Convex Grinder; (6) Concave Grinder; (7) Clearance adjustment nut; (8) Faucet ; (9) Power switch; (10) Paint board and (11) Plate, etc.

The grinding series uses the motor (2) to drive the convex Grinder (5) to rotate relative to the concave Grinder (6) through the transmission (3), and grinds the paint particles finely by means of the grinding teeth on the convex Grinder and the concave Grinder.

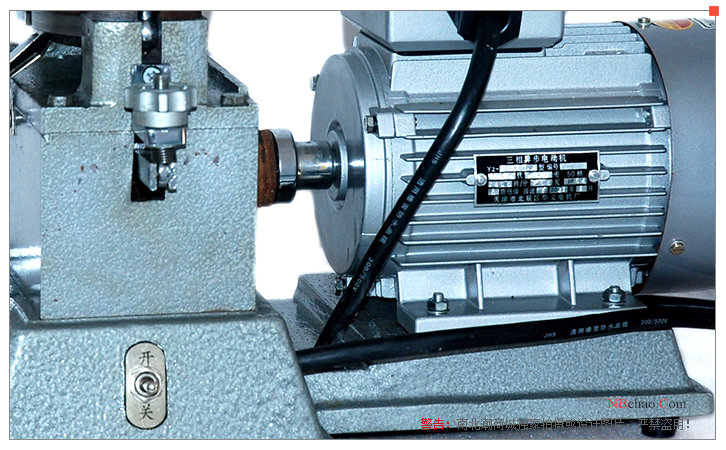

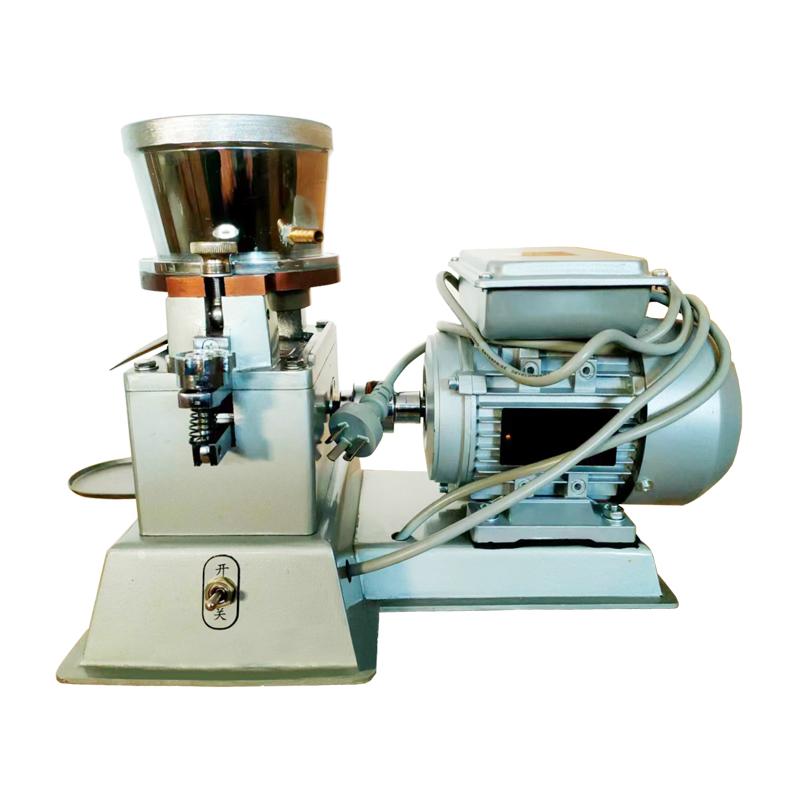

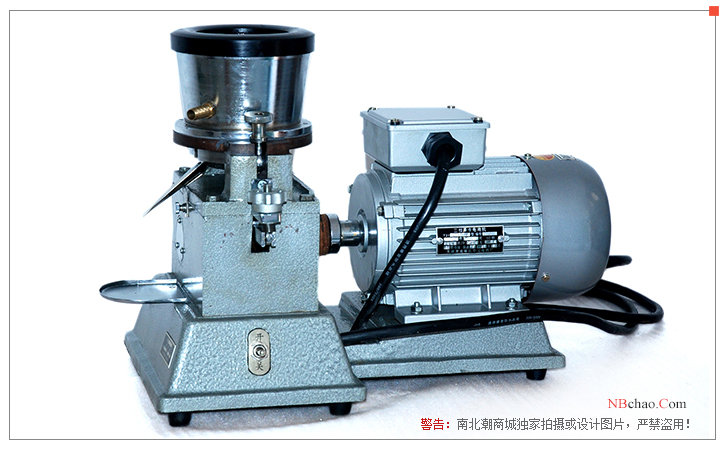

QZM conical mill display

Taper mill x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
