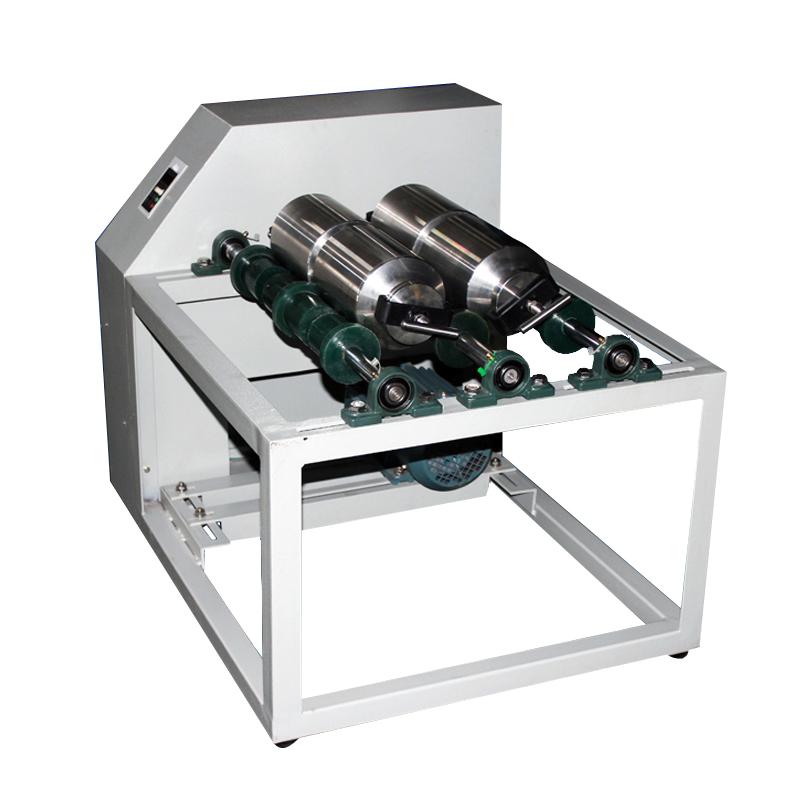

TENCAN Powder GQM- (1-5) * 4 Roller and Can Mill

Introduction

GQM-(1-5)*4 jar ball mill, also called rolling mill, is an ultra-fine grinding and mixing equipment used in laboratories and small batch production. This machine is beautiful and novel, has a compact structure, is easy to operate, has high working efficiency, and has uniform grinding size. It is the preferred equipment for scientific research, teaching, testing, and production. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, metal powder, non-metallic minerals, new materials and other industries. The machine has a novel appearance, professional structure and is easy to use. The rotation speed of the tank of this machine is optimized. The tank is supported by the rubber roller to rotate very well, which can make the medium balls in the grinding tank form a tilting motion to disperse the materials and obtain a suitable grinding effect. The tank mill (rolling table machine) is controlled by a digital display time controller. The working time can be set at any time as needed, and it has pause and cumulative Timer Control functions. The operation saves time, effort, and is easy and convenient.

Product principle

When the GQM-(1-5)*4 tank ball mill is working, the grinding medium and materials in the cylinder are raised to a certain height with the rotation of the cylinder. Due to the action of gravity, they break away from the cylinder wall and fall along a parabola. The materials are impacted by the grinding medium. It is crushed under the friction and shear generated by the rolling and sliding action of the grinding media.

Features

1. Can grind multiple samples at the same time;
2. Can operate intermittently or continuously;
3. Can be timed according to requirements;
4. Suitable for fine grinding of materials with high crushing efficiency;
5. The load-bearing rubber roller of the tank is made of special materials. Durable.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
