TENCAN Powder GQM- (1-5) * 8 Roller and Can Mill 50~410 +/- 10rpm Rotation speed

Introduction

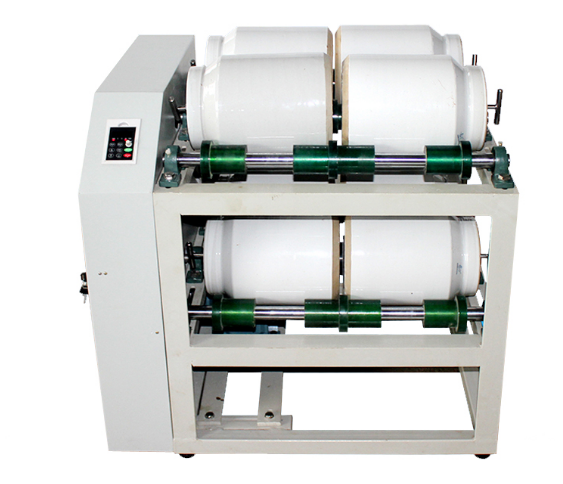

Tianchuang Powder GQM-(1-5)*8 drum and tank mill, also called roller mill, is an ultra-fine grinding and mixing equipment used in laboratories and small batch production. This machine is beautiful and novel, has a compact structure, is easy to operate, has high working efficiency, and has uniform grinding size. It is the preferred equipment for scientific research, teaching, testing, and production. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, metal powder, non-metallic minerals, new materials and other industries. The machine has a novel appearance, professional structure and is easy to use. The rotation speed of the tank of this machine is optimized. The tank is supported by the rubber roller to rotate very well, which can make the medium balls in the grinding tank form a tilting motion to disperse the materials and obtain a suitable grinding effect. The tank mill (rolling table machine) is controlled by a digital display time controller. The working time can be set at any time as needed, and it has pause and cumulative Timer Control functions. The operation saves time, effort, and is easy and convenient.

Product principle

When Tianchuang Powder GQM-(1-5)*8 drum and tank mill is working, the grinding media and materials in the cylinder are lifted to a certain height with the rotation of the cylinder. Due to the action of gravity, they break away from the cylinder wall and fall along a parabola. It is crushed under the impact of the grinding media and the friction and shearing caused by the rolling and sliding of the grinding media.

Features

1. Multiple samples can be ground at the same time;

2. Can be operated intermittently or continuously;

3. Able to time according to requirements;

4. Suitable for fine grinding of materials with high crushing efficiency;

5. The tank load-bearing rubber roller is made of special materials and is durable.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
