Overview of QSM-II sand mill
JinKeLian QSM-II sand mill is a Grinder used for small sample tests in the laboratory, which can realize the fineness of the ground paint particles to be less than 25 microns. The QSM-II sand mill uses the motor to drive the stirring parts for dispersive grinding. The QSM-II sand mill is widely used in the paint and paint industry. The sample capacity is 1.5 liters.
Principle of QSM-II sand mill
Use the electric motor to drive the agitator parts, and rotate at a speed of 1.400 r/min, so that the sand and materials are rapidly rotated and turned in the tank. Due to the strong tensile shear and impact between the sand and materials, the material particles are dispersed. and research purposes.
Structural diagram of QSM-II sand mill
The main components of this sand mill are: 1. Base; 2. Grinding tank; 3. Agitator parts; 4. Motor; 5. Motor seat; 6. Column; 7. Handle; The following figure)

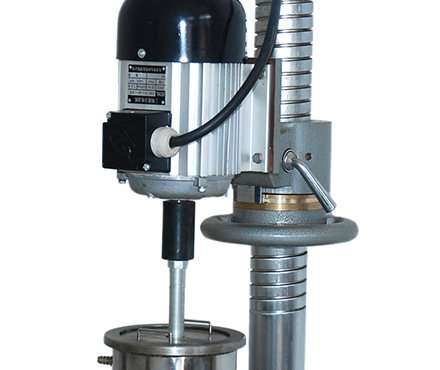

QSM-II sand mill display
JingKeLian QSM-II Laboratory sand millSpecifications
| LIST | VALUE |
|---|---|
| Motor Power | 370W |
| Speed range | 1400rpm |
| Power supply Voltage | 380 volts 50 hertz |
| Dimension | 396*223*700mm |
| Ground tank specifications | Diameter 100 * 200mm (Capacity is about 1.5 liters) |
| Ground medium particle size | 2~ 4.5 mm Tempered Glass Balls (Self-provided) |
| Mixer material | Eletroplating |
JingKeLian QSM-II Laboratory sand mill Packing list
Laboratory sand mill x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
