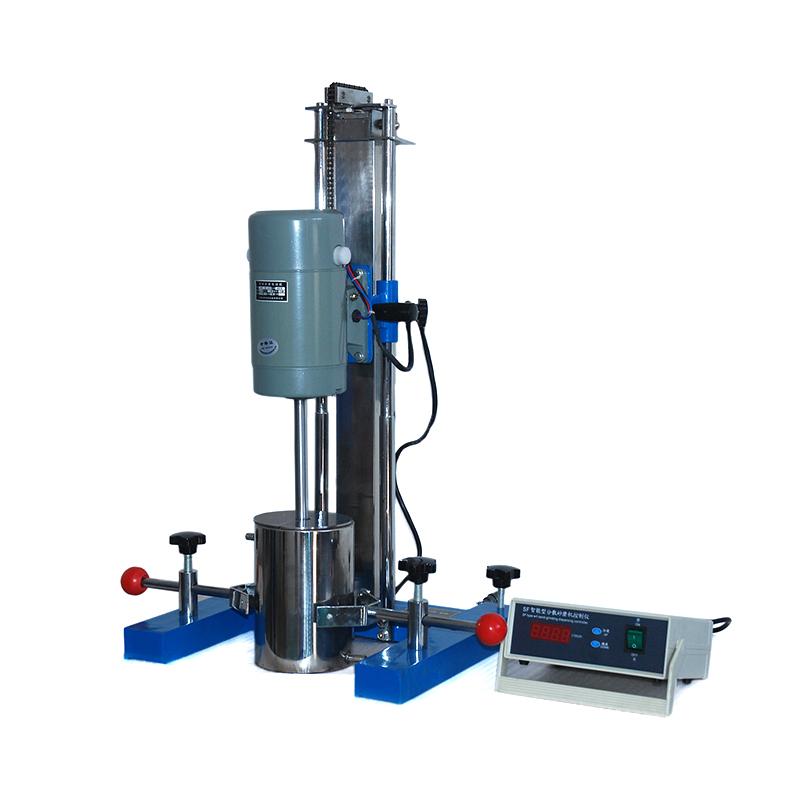

JINGKELIAN SF0.4 ground dispersion mixing multi-purpose machine, series rectifier motor stepless speed regulation
Motor Power 400W, speed range stepless constant speed regulation 0~8000rpm, lifting stroke 200mm, Power supply Voltage 200V, impeller diameter 50mm 60mm, grinding disc diameter 45mm 60mm.
JingKeLian
SF0.4
-
Yaku FS-3000 Brushless High Speed Disperser
$ 708.00 -
HUXI HR-750JFS Laboratory High Speed grinding Disperser Square Tube 750W/10L
$ 669.00 -
Huxi HR-1500BPF lifting platform pilot Disperser
$ 1446.00 -
JINGKELIAN SDF-370 Experimental Multi-purpose Disperse Sand Mill 370w
$ 475.00 -
MODERNER SFJ-400D ground Stirring machine, electric lift
Login
Overview of SF0.4 Grinding, Dispersing and Stirring Multipurpose Machine
JinKeLian adopts foreign new technology to design the SF0.4 grinding, dispersing and mixing multi-purpose machine, which is a multi-purpose equipment that can be used as a Grinder, disperser, and mixer at the same time. Speed line, the number directly displays the rotating shaft speed, and is equipped with a variety of grinding wheel blades and dispersing stirring plates. It is a satisfactory experimental equipment for coating and ink laboratory testing.
SF0.4 Grinding, Dispersing and Stirring Multifunctional Function can adapt to the needs of different experiments in the laboratory. According to the displayed shaft speed, the relationship between the linear velocity of the stirring, dispersing and sanding blades, the viscosity of the material and the chemical reaction rate can be directly calculated, providing a basis for large-scale production. correct data.
SF0.4 Structural Composition of Grinding, Dispersing and Stirring Multipurpose Machine
1. The series-excited commutator motor is adopted, and the speed is adjusted steplessly through electronic constant force, and the number directly displays the rotational speed of the shaft. The sanding blisks and dispersing blades are directly connected with the rotating shaft by threads.
2. The cylinder adopts a jacket structure, which can pass cooling water and is made of stainless steel.
SF0.4 Grinding, dispersing and mixing multi-purpose machine parts name diagram
1. Chain
2. Electric brush
3. Motor locking bolt
4. Motor
5. Counterweight
6. Stop ring
7. Shaft
8. Horizontal adjustment bolt
9. Column
10. Gripper fixing bolt
11. Holder
12. Barrel
13. Sanding disc
14. Base
15. Power switch
16. Speed control knob
17. Governor

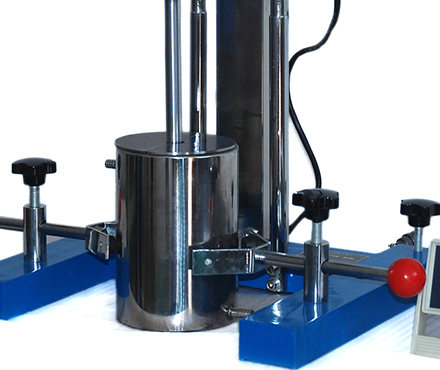

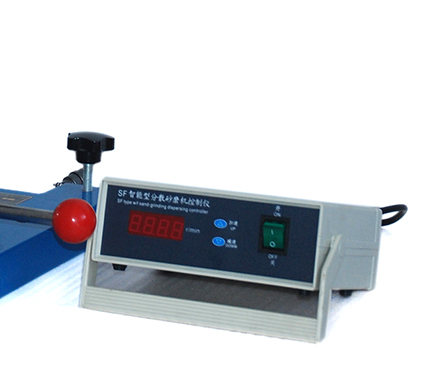

SF0.4 Grinding, Dispersing and Stirring Multipurpose Machine Display
JingKeLian SF0.4 Sand grinding dispersion mixing multi-purpose machineSpecifications
| LIST | VALUE |
|---|---|
| Motor Power | 400W |
| Speed range | 0~8000rpm |
| Lifting stroke | 200mm |
| Power supply Voltage | 200V |
| Dimension | 450*420*860mm |
| Impeller diameter | 50mm 60mm |
| Grinding disc diameter | Φ45/60mm |
JingKeLian SF0.4 Sand grinding dispersion mixing multi-purpose machine Packing list
Sand grinding dispersion mixing multi-purpose machine x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
