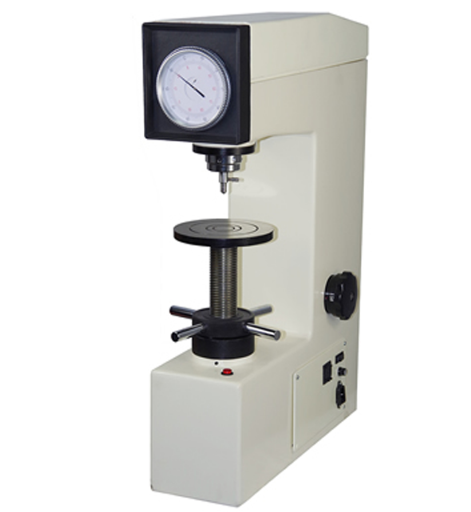

AOLONGXINGDI HR-150DT Simple digital display electric Rockwell Hardness Tester
AOLONGXINGDI HR-150DT simple digital display electric Rockwell Hardness Tester has a wide range of applications, easy operation, good economy and practicability, HR-150DT simple digital display electric Rockwell Hardness Tester initial test force is 98.07N (10kgf), Hardness value reading method is digital display.
AoLongXingDi
HR-150D(S)
-
ShenyangTX W-B75b Wayer Hardness Tester for testing brass tubing with an inner diameter as small as 6mm
$ 1097.00 -
LANDTEK HM934-1 + Barcol Hardness Gauge Barcol hardness inspection instrument
$ 708.00 -
DUBAN DB20-LX-DW Wood surface Hardness Gauge
$ 371.00 -
LEEB W-20 Webster Hardness Tester measuring aluminum alloy, workpiece size thickness 0.4~ 6mm
$ 459.00 -
LANDTEK FHT-1122 fruit Hardness Gauge 0.2~ 11.0 kgf/cm ²
$ 254.00
Introduction
A Hardness Tester is a testing instrument used to determine the hardness of a material, while a hardness test is a means to judge the quality of a metal material or product part. The so-called hardness is the ability of a material to resist the press-in of another object that does not have residual deformation itself under certain conditions. The greater the resistance, the higher the hardness, and vice versa, the lower the hardness.
In the mechanical property test, measuring hardness is the easiest, most economical, and fastest method, and it is also one of the measures to check the quality of products in the process of machinery manufacturing. Since the hardness of metals corresponds to other mechanical properties, most metal materials can be approximated by determining hardness to deduce other mechanical properties, such as strength, fatigue, creep, wear, and internal damage.
Scope of application
It is suitable for hardening, quenching, tempering, annealing, cold hard castings, malleable castings, cemented carbide steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.
Features
● Precise, reliable and durable
●Sturdy structure, good rigidity
●External test force selection knob, easy to operate
●The large test space allows for the placement of large specimens
●Wide range of application, easy to operate, good economy and practicability
● Hardness resolution 0.5 Rockwell units
●External lighting source, the test point can be clearly seen
● Dial direct reading, HRA, HRB, HRC rulers
●Accuracy in accordance with GB/T230.2 ISO 6508 and American ASTM E18
●The standard configuration is complete, which can meet the test requirements of all scales

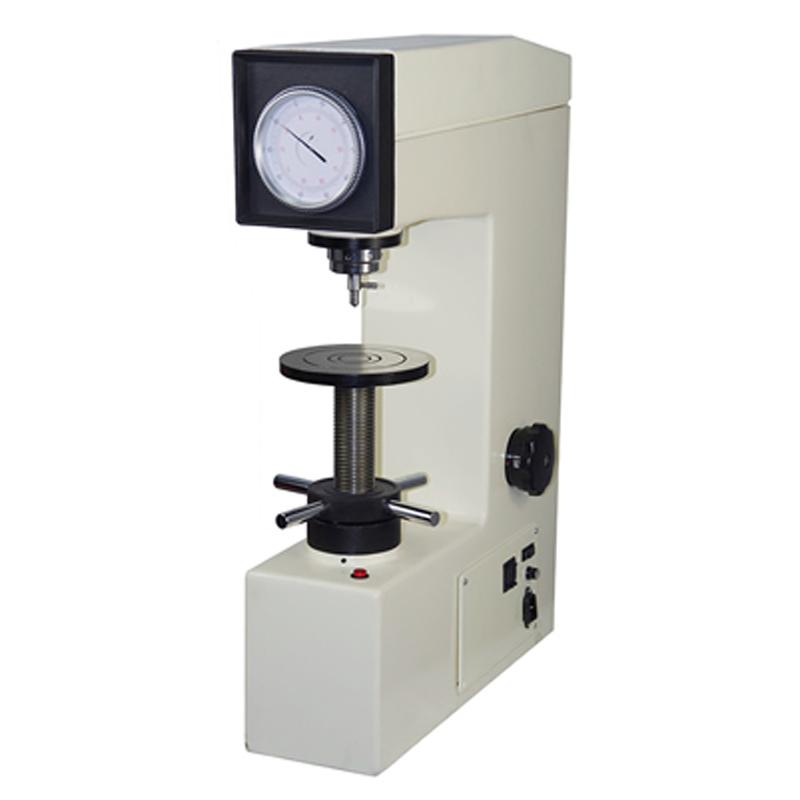

AoLongXingDi HR-150D(S) Simple digital display electric Rockwell Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| initial test force | 98.07N（10kgf） |
| Total test force | 588.4N(60kgf)、980.7N(100kgf）、1471N(150kgf) |
| Indenter specification | Diamond conical Rockwell indenter, φ 1.5875mm ball indenter |
| Rockwell scale | HRC、HRA、HRB、HRD、HRE、HRF、HRG、HRH、HRK |
| test range | HRA:20-88、HRB:20-100、HRC:20-70，HRD:40-77、HRE:70-100、HRF:60-100，HRG:30-94、HRH:80-100、HRK:40-100 |
| Hardness value reading method | digital display |
| execution standard | GB/T 230.2 ISO 6508-2 and ASTM E18 |
| Maximum allowable height of specimen | 170mm |
| Distance from the center of the indenter to the fuselage | 135mm |
| Power Supply | AC220V+5%、50~60Hz |
| Dimension | 500*250*700mm |
| Host Weight | 75Kg |
AoLongXingDi HR-150D(S) Simple digital display electric Rockwell Hardness Tester Packing list
Machine X1, diamond Rockwell indenter X1, large flat test bench X1, V-type test bench X1, φ 1.5875mm steel ball indenter X1, medium test bench X1, rockwell hardness block X3, Xiaoping test bench X1, fuse X2, weight X3, power cord X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
