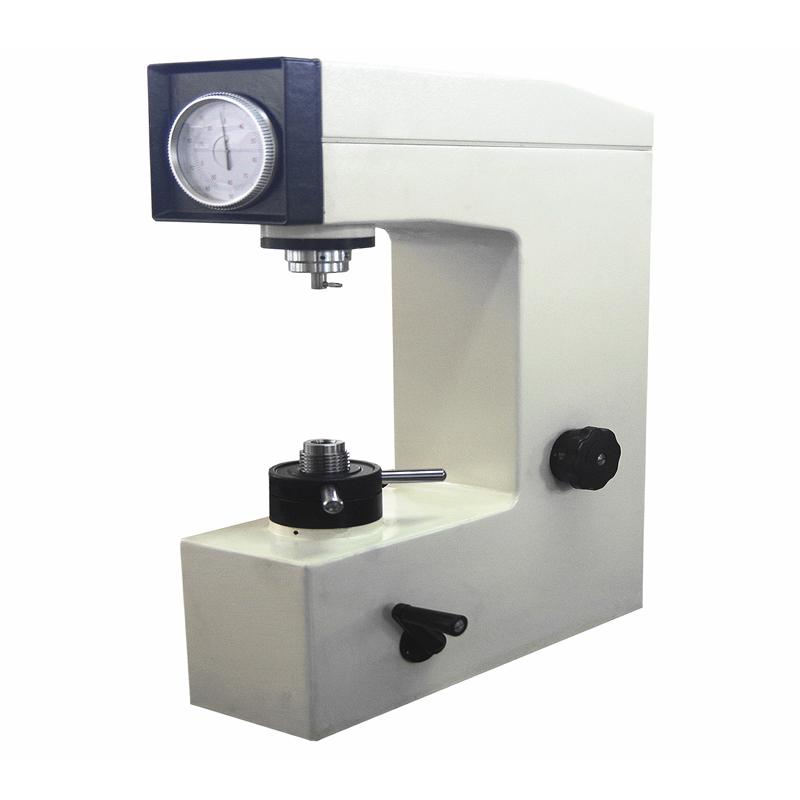

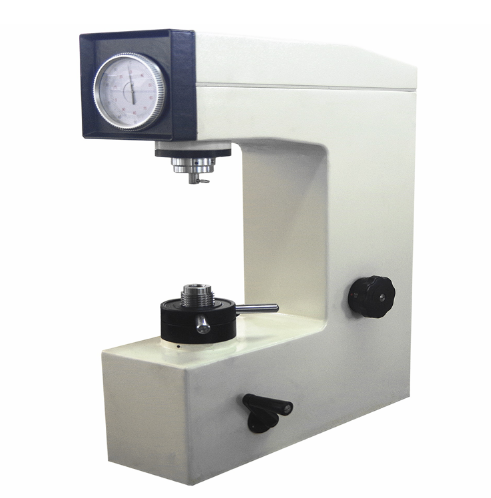

AOLONGXINGDI HRM-45A Manual surface Rockwell Hardness Tester Initial test force 3kgf
AOLONGXINGDI HRM-45A is a manual surface Rockwell Hardness Tester with an initial test force of 3kgf and a Hardness reading method for dial readings. HRM-45A surface Rockwell Hardness Tester can test the hardness of materials. It is suitable for surface hardening steel, surface heat treatment and chemical treatment of materials.
SMTMF
HRM-45A
-
LINSHANG LS255 Webster Hardness Tester
$ 242.00 -
AMITTARI AW-20B + Webster Hardness Tester sample size 0.6-8 mm
$ 699.00 -
DUBAN DB22-LX-SA casting sand Hardness Gauge sand Hardness Gauge load 237g
$ 360.00 -
LANDTEK FM-204G Feed grain Hardness Gauge
$ 350.00 -
DUBAN DB13-934-1 + Pasteur hardness Measurement range 0~100HBa Additional measurement of Brinell/Vickers/Wechsler/rockwell hardness
$ 826.00
Introduction
A Hardness Tester is a testing instrument used to determine the hardness of a material, while a hardness test is a means to judge the quality of a metal material or product part. The so-called hardness is the ability of a material to resist the press-in of another object that does not have residual deformation itself under certain conditions. The greater the resistance, the higher the hardness, and vice versa, the lower the hardness.
In the mechanical property test, measuring hardness is the easiest, most economical, and fastest method, and it is also one of the measures to check the quality of products in the process of machinery manufacturing. Since the hardness of metals corresponds to other mechanical properties, most metal materials can be approximated by determining hardness to deduce other mechanical properties, such as strength, fatigue, creep, wear, and internal damage.
Scope of application
It is suitable for surface quenched steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome-plated, tin-plated materials, bearing steel, cold hard castings, etc.
Features
●Sturdy structure, good rigidity
● Hardness resolution 0.5 Rockwell units
●A clockface direct reading: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
●External test force selection knob, easy to operate
●Mechanical manual testing process, no electrical device required
●Precision oil pressure buffer, loading speed adjustable
●The large test space allows for the placement of large specimens
●Wide range of application, easy to operate, good economy and practicability
●Accuracy in accordance with GB/T230.2 ISO 6508 and American ASTM E18
●The standard configuration is complete, which can meet the test requirements of all scales
SMTMF HRM-45A Rockwell Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| initial test force | 3kgf（29.42N） |
| Total test force | 15kgf、30kgf、45kgf（147.1N、294.2N、441.3N） |
| Hardness testing range | HR15N：70-94、HR30N：42-86、HR45N：20-77 HR15T：67-93、HR30T：29-82、HR45T：10-72 |
| Indenter Specifications | Diamond Rockwell indenter, φ 1.5875mm cemented carbide steel ball indenter |
| Hardness reading method | Dial reading |
| execution standard | ISO 6508、ASTM E18、、GB/T230.2 |
| Maximum height of specimen | 170mm |
| Distance from the center of the indenter to the fuselage | 165mm |
| Dimension | 510*212*750mm |
| Weight | 85kg |
SMTMF HRM-45A Rockwell Hardness Tester Packing list
Machine X1, diamond Rockwell indenter X1, large test bench X1, medium test bench X1, V-shaped test bench X1, Rockwell standard Hardness block X3, dust-proof plastic bag X1, weight X1 (set), φ 1.5875mm steel ball indenter X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
