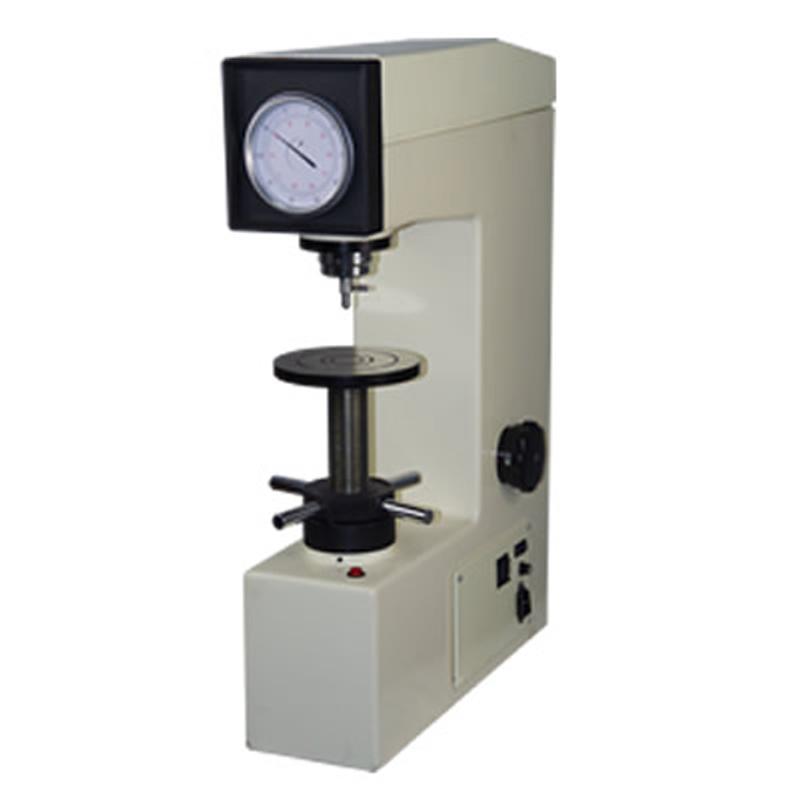

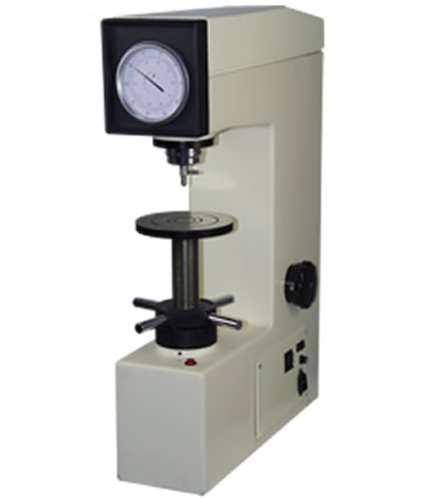

AOLONGXINGDI XHR-150D Electric plastic Rockwell Hardness Tester
The AOLONGXINGDI XHR-150D electric plastic Rockwell Hardness Tester has an initial test force of 10kgf (98.07N) and a test force of 60kgf (588N) 100kgf (980N) 150kgf (1471N). The XHR-150D is a Hardness Gauge for non-metallic materials such as plastics, hard rubbers, synthetic resins, friction materials and softer metals.
AoLongXingDi
XHR-150D
-
AOLONGXINGDI HBS-3000V-Z Automatic vision Brinell Hardness Tester 10 test forces
Login -
ShenyangTX W-B92 Webster Hardness Tester (stainless steel) for measurement austenitic stainless steel and soft steel plate strip
$ 941.00 -
LANDTEK FM-204G Feed grain Hardness Gauge
$ 350.00 -
LANDTEK FHT-05 fruit Hardness Gauge 0.2~ 5.0 kgf/cm ²
$ 254.00 -
LANDTEK FM-204T Tablet Hardness Gauge
$ 350.00
Introduction
The XHR-150D Electric Plastic Rockwell Hardness Tester is a Hardness Tester that specializes in testing non-metallic materials such as plastics, hard rubbers, synthetic resins, friction materials and soft metals
Features
●Adopt automatic loading and unloading test force mechanism
●Equipped with a potentiometer that can adjust the total force holding time
●The operation is simple and fast, except for the dial to zero, there is no human operation error
●It has high sensitivity, stability, and is suitable for workshops and laboratories
| Standard configuration | |||
name | quantity | name | quantity |
| Steel ball indenter | 3 sticks | Fuse 0.5A (size 5x20) | 2 roots |
| Hardness blocks (HRE, HRL, HRM, HRR) | 1 piece each | Large, medium and V-shaped test benches | 1 each |
| weight | 1 set | Dust-proof plastic cover | 1 pc |
| Instrument bulb (GY6-12A) | 2 pcs | Power cord | 1 root |
| Instruction manual for the product | 1 serving | Product Certificate | 1 serving |
AoLongXingDi XHR-150D Electric plastic Rockwell Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| initial test force | 10kgf(98.07N) |
| test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Hardness reading | dial |
| execution standard | φ 3.175mm steel ball indenter φ 6.35mm steel ball indenter φ 12.7mm steel ball indenter |
| Rockwell scale | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77；HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
| Load time | 1-30s (the total test force holding time for plastic rockwell hardness test is 15 seconds) |
| Maximum height of specimen | 170MM |
| Distance from the center of the indenter to the fuselage | 165m |
| Power Supply | AC220V+5%,50~60Hz |
| Dimension | 510*212*700mm |
| Host Weight | 85Kg |
AoLongXingDi XHR-150D Electric plastic Rockwell Hardness Tester Packing list
Machine X1, indenter X3, Hardness block X4, test bench X3, weight X1, instrument light bulb (GY6-12A) X2, fuse 0.5A (specification 5x20X2, dust plastic cover X1, power cord X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
