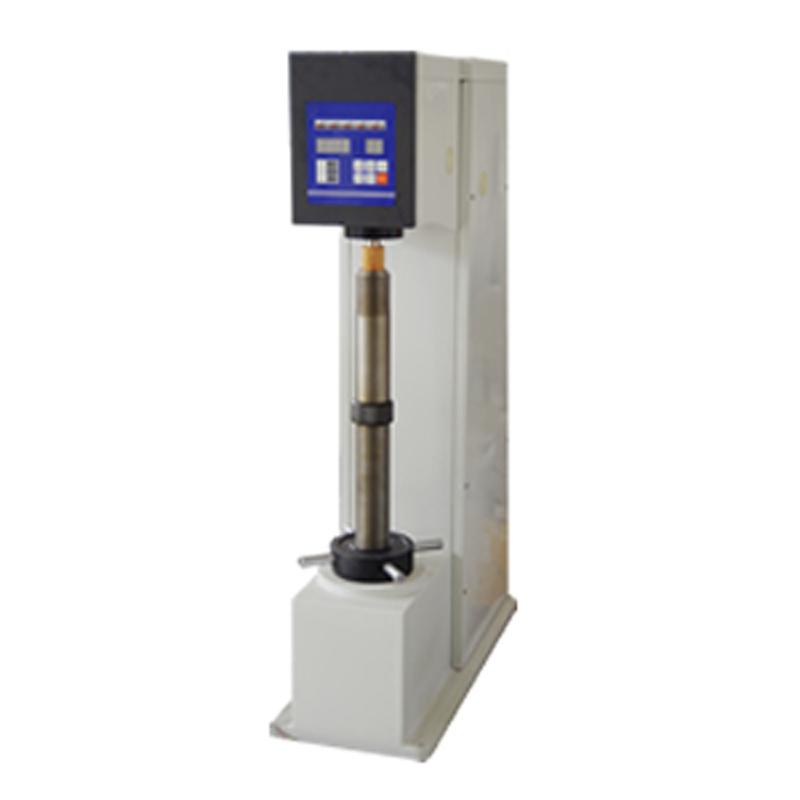

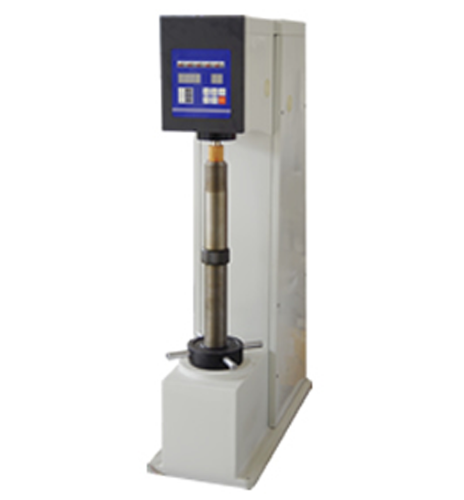

SMTMF HB-3000H Enhanced electronic Brinell Hardness Tester tenth grade test force
SMTMF HB-3000H electronic Brinell Hardness Tester has a 10-level test force, up to 29420N, HB-3000H is a heightened electronic Brinell Hardness Tester, the maximum height of the specimen is 430mm, suitable for cast iron, steel, non-ferrous metals and soft alloys and other materials Hardness determination.
SMTMF
HB-3000H
-
DUBAN DB20-LX-T5 Spinning & weaving Hardness Gauge
$ 471.00 -
LANDTEK FM-204T Tablet Hardness Gauge
$ 350.00 -
SMTMF MHRS-150 Touch screen digital display Rockwell Hardness Tester Initial test force 10kgf
Login -
LANDTEK FM204-TR Special instrument for soil Hardness Gauge
$ 333.00 -
AOLONGXINGDI HBS-3000V Visual Brinell Hardness Tester 10 test forces
Login
Introduction
The heightened electronic Brinell Hardness Tester is mainly used to measure the Brinell hardness of materials. Brinell measurement is mainly used to measure castings or forgings with a crystalline structure that cannot be tested using Rockwell and Vickers measurements. For this reason, Brinell testing is mainly used on large materials. By using different forces and changing different indenters, Brinell tests can be applied to almost all metal materials.
Brinell testing is widely used in product acceptance and other industrial applications. However, if the Brinell test is performed only on one part of a large material, the measured value is not representative of the overall properties of the material as a whole or the final product.
The heightened electronic Brinell Hardness Tester is a mechatronics product that integrates precision mechanical structure and microcomputer control closed-loop system, cancels the weight, adopts electric loading and unloading test force, high-precision pressure sensor for feedback, CPU control and can automatically compensate for the loss of test force in the test. The test force and load retention time are directly selected and input on the touch pad, which is reliable and repeatable, accurate and easy to operate.
Features
●Force sensor, force feedback, closed-loop system
●Force range: 62.5kgf~3000kgf
●It has 10 levels of test force, wider test range and higher accuracy
● Test space 430mm
●Portable Brinell measurement system can be selected, which has higher measurement accuracy and efficiency.
Scope of application
It is mainly used for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys, and can also be used for the determination of the hardness of some non-metallic materials such as hard plastics and bakelites.
| Standard configuration | |||
name | quantity | name | quantity |
| Standard hardness blocks | 3 pieces | Ф2.5, 5, 10mm carbide ball indenter | 1 each |
| Product Certificate | 1 serving | Large, medium and V-type test benches | 1 each |
| Fuse 2A | 3 pcs | 20x reading microscope | 1 pc |
| Power cord | 1 root | Instruction manual for the product | 1 serving |
SMTMF HB-3000H heightened electron BrinellSpecifications
| LIST | VALUE |
|---|---|
| Brinell scale | HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000 |
| test force | 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf |
| test force | 612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N |
| Maximum height of specimen | 430mm |
| Measurement unit | 0.005mm |
| Load time | 5~60s |
| Hardness testing range | 8~650HBW |
| Microscope magnification | 20X |
| execution standard | ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2 |
| Distance from the center of the indenter to the body | 135mm |
| Hardness reading | look-up table |
| Power Supply | AC220+5%,50~60Hz |
| Dimension | 630*270*1103mm |
| Host Weight | 200kg |
SMTMF HB-3000H heightened electron Brinell Packing list
Whole machine X1, standard Hardness block X3, fuse 2AX3, carbide ball indenter X3, power cord X1, large test bench X1, medium test bench X1, V-shaped test bench X1, 20x reading Microscope X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
