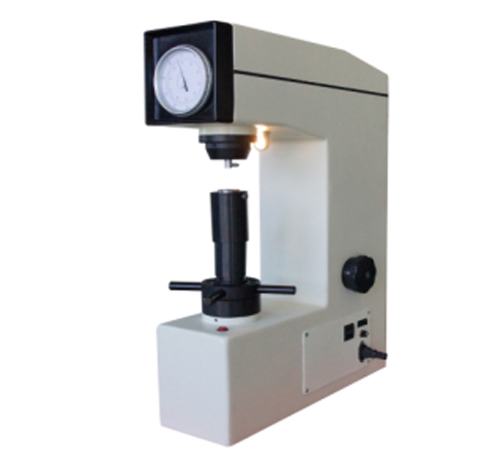

SMTMF HR-150DT Electric Rockwell Hardness Tester Initial test force 10kgf
The initial test force of the SMTMF HR-150DT electric Rockwell Hardness Tester is 98.07N, the main test force is 588N, 980N, 1471N, HR-150DT is used to determine the rockwell hardness of ferrous metals and non-ferrous metals. The electric Rockwell Hardness Tester is a popular rockwell hardness machine.
SMTMF
HR-150DT
-
SMTMF MHRS-150 Touch screen digital display Rockwell Hardness Tester Initial test force 10kgf
Login -
Defelsko PosiTector BHI3 Pap Hardness Tester (Premium)
$ 2112.00 -
ShenyangTX W-BB75 Webster Hardness Tester for measurement of copper pipes, plates and strips
$ 941.00 -
DUBAN DB25-204G Grain feed pellet durometer
$ 471.00 -
AOLONGXINGDI HBS-3000V-Z Automatic vision Brinell Hardness Tester 10 test forces
Login
Introduction
The Hardness Tester is beautiful in appearance and easy to operate, and it is a popular Rockwell hardness testing machine. Rockwell hard determination of ferrous and non-ferrous metals is available for a wide range of applications on the factory floor and in the metrology sector.
Features
Selection with Rockwell hardness scale; Hardness scale conversion option; The hardness test holding time can be selected from 0~99s; It has a reset function; Hardness test results printout; It has RS-232C serial communication port for users to expand functions.
fittings
| serial number | Name (Specification) | quantity |
| 1 | Diamond Rockwell indenter | 1 pc |
| 2 | φ1.5875mm ball indenter | 1 pc |
| 3 | Daping test bench, Zhongping test bench, "V" type test bench | 3 in total |
| 4 | A set of weights A, B, and C | 3 in total |
| 5 | Standard Rockwell Block (HRB) | 1 piece |
| 6 | Standard Rockwell Blocks (HRC High, Low) | A total of 2 pieces |
| 7 | Fuse 0.5A (Specification ¢5*20) | 2 roots |
| 8 | Power cord | 1 root |
| 9 | Instrument bulb (GY6-12A) | 2 pcs |
| 10 | Dust-proof plastic bag | 1 pc |
| 11 | Lifting screw protective cap | 1 pc |
| 12 | Product Certificate of Conformity | 1 serving |
| 13 | Instruction manual for the product | 1 book |
SMTMF HR-150DT Rockwell Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| initial test force | 10kgf (98.07N) |
| main test force | 60kgf、100kgf、150kgf（588N、980N、1471N） |
| Indenter Specifications | Diamond Rockwell indenter, φ 1.5875mm cemented carbide steel ball indenter |
| show | Dial Display Hardness Value |
| Rockwell scale | HRA、HRB、HRC |
| test range | HRA:20-88、HRB:20-100、HRC:20-70 |
| loading method | Automatic (initial test force manual loading) |
| Interface | none |
| execution standard | GB/T230.2、ISO 6508-2、ASTM E18 |
| Maximum height of specimen | 170mm |
| Distance from the center of the indenter to the fuselage | 165mm |
| Specimen placement | The minimum diameter of the round specimen placed on the outer surface is 3mm. |
| Power Supply | AC220V+5%、50~60Hz |
| Dimension | 510*212*700mm |
| Host Weight | 85Kg |
SMTMF HR-150DT Rockwell Hardness Tester Packing list
Machine X1, diamond Rockwell indenter X1, Hardness block X3, weight X1 (set), dust-proof plastic cover X1, power cord X1, instrument light bulb (GY6-12A) X2, < unk > 1.5875mm ball indenter X1, V-shaped test bench X1, large test bench X1, medium test bench X1, fuse X2, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
