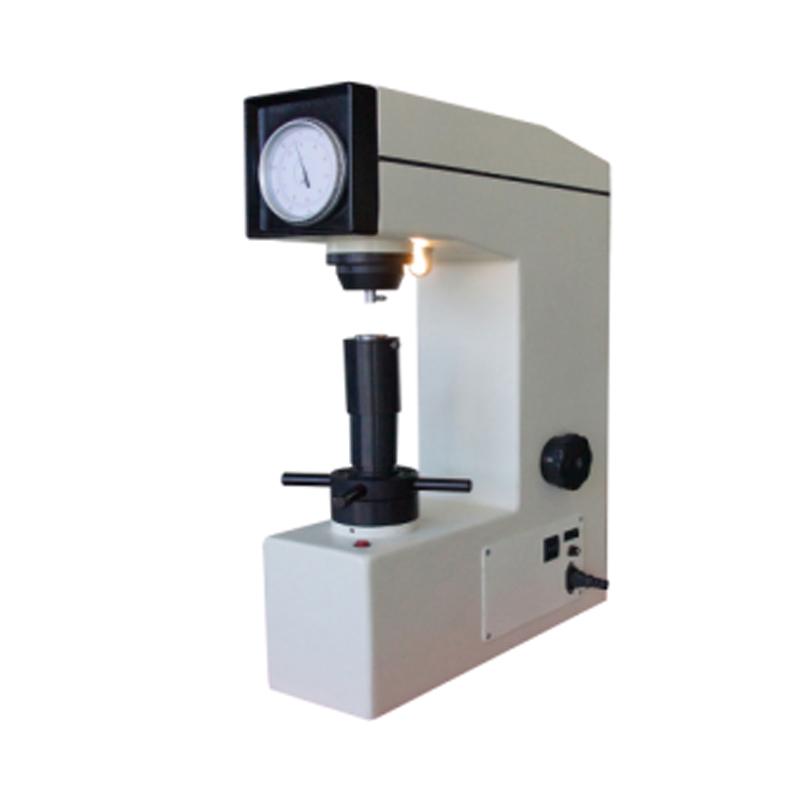

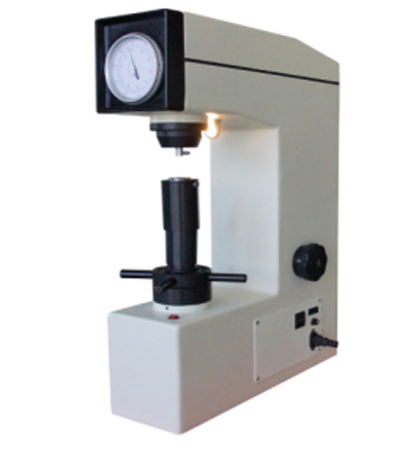

SMTMF HRM-45DT Electric surface Rockwell Hardness Tester Initial test force 29.42N

Introduction

 A Hardness Tester is a testing instrument used to determine the hardness of a material, while a hardness test is a means to judge the quality of a metal material or product part. The so-called hardness is the ability of a material to resist the press-in of another object that does not have residual deformation itself under certain conditions. The greater the resistance, the higher the hardness, and vice versa, the lower the hardness.

In the mechanical property test, measuring hardness is the easiest, most economical, and fastest method, and it is also one of the measures to check the quality of products in the process of machinery manufacturing. Since the hardness of metals corresponds to other mechanical properties, most metal materials can be approximated by determining hardness to deduce other mechanical properties, such as strength, fatigue, creep, wear, and internal damage.

Features

 Precise, reliable and durable

 Sturdy structure with good rigidity

 Hardness resolution 0.5 Rockwell units

 Dial direct reading: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

External test force selection knob, easy to operate

 Precision oil shock absorber, loading speed adjustable

 Large test space allows for larger specimens

 Wide range of application, easy to operate, good economy and practicability

 Accuracy in accordance with GB/T230.2 ISO 6508 and American ASTM E18

 Complete standard configuration, which can meet the test requirements of all scales

 External illumination light source, can clearly see the test point

Scope of application

It is suitable for surface quenched steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome-plated, tin-plated materials, bearing steel, cold hard castings, etc.

Machine X1, diamond Rockwell indenter X1, large test bench X1, medium test bench X1, V-shaped test bench X1, φ 1.5875mm steel ball indenter X1, weight X1 (set), dust-proof plastic bag X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
