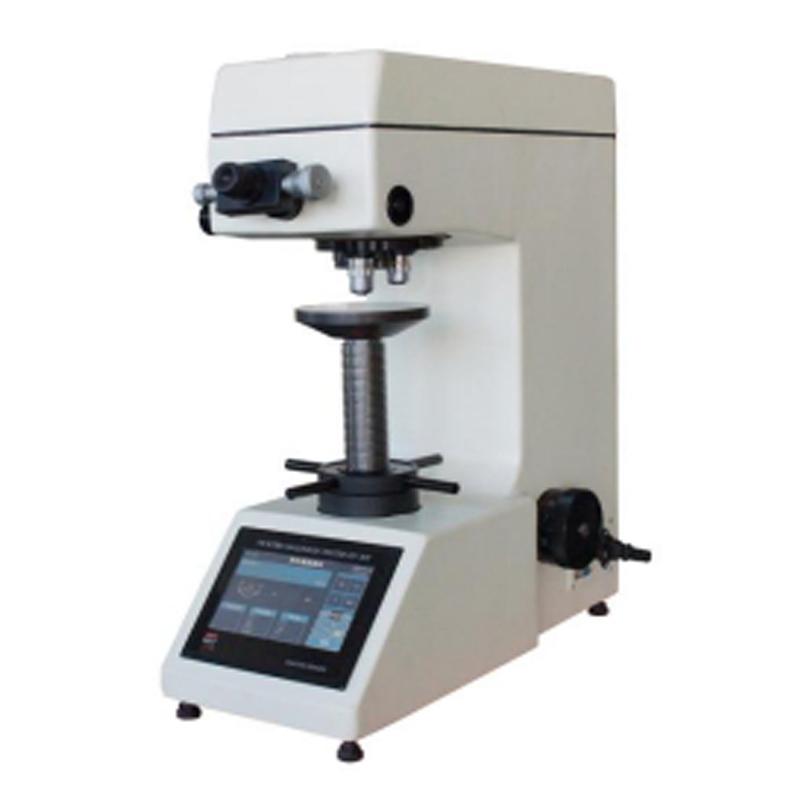

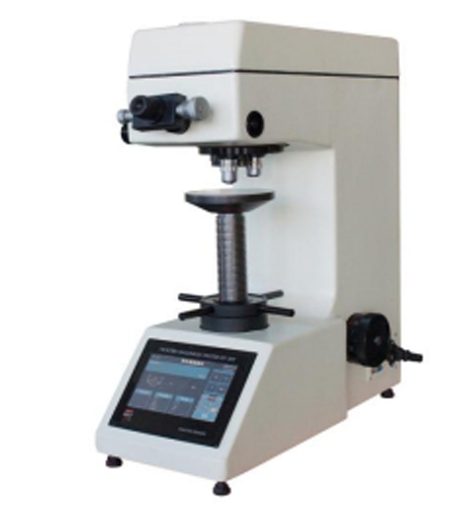

SMTMF MHVS-30 touch screen digital display Vickers Hardness Tester 294.2N test force
SMTMF MHVS-30 touch screen digital display Vickers Hardness Tester has a minimum detection unit of 0.1um and a maximum test force of 294.2N. MHVS-30 is a Vickers Hardness Tester that can adjust the strength and test force retention time of the Measurement light source through software.
SMTMF
MHVS-30
-
DUBAN DB20-LX-T5 Spinning & weaving Hardness Gauge
$ 471.00 -
ShenyangTX W-B75b Wayer Hardness Tester for testing brass tubing with an inner diameter as small as 6mm
$ 1097.00 -
DUBAN DB20-LX-DW Wood surface Hardness Gauge
$ 371.00 -
LANDTEK FM-204T Tablet Hardness Gauge
$ 350.00 -
Defelsko PosiTector BHI3 Pap Hardness Tester (Premium)
$ 2112.00
Introduction
MHV-30 color touch screen Vickers Hardness Tester is a new type of Vickers Hardness Tester using precision mechanical technology and photoelectric technology, the Hardness Tester is suitable for measuring tiny, thin specimens, surface dipping parts, is a scientific research institutions, factories and quality inspection departments for research and testing of the core hardness testing instrument.
Features
The touch screen displays the operator interface
Through the operation panel, the hardness scale HV or HK can be selected for each level of test force and load holding time
When the D1 and D2 values measured by the eyepiece are directly entered, the hardness values are displayed directly on the display
The intensity of the measuring light source and the holding time of the test force can be adjusted by the software
Easy to use, high measurement accuracy, Hardness Tester can be equipped with a photographic device
| Standard accessories | |||
| name | quantity | name | quantity |
| weight | 3 pcs | Large, medium and "V" type test benches | 1 each |
| Horizontal adjustment screws | 4 pcs | Power cord | 1 root |
| 10X micrometer eyepiece | 1 pc | Vickers hardness block | 2 pieces |
| Spare Fuse (0.5A) | 2 pcs | Spare bulbs | 2 pcs |
| Instruction manual for the product | 1 serving | Product Certificate | 1 serving |
SMTMF MHVS-30 Touch screen digital display Vickers Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| XY platform | 0.3kgf、0.5kgf、1kgf、2kgf、2.5kgf、3kgf、5kgf、10kgf、20kgf、30kg（2.94N、4.9N、9.8N、19.6N、24.5N、29.4N、49N、98N、196N、294N） |
| Test force application method | Automatic loading and unloading |
| Test force conversion | automatic |
| indenter objective lens switching | manual |
| testable parameters | HV/HK |
| LCD display | Load start, Zero Setting, hold time, lighting adjustment, conversion ruler, tower, objective lens position, data removal and deletion, conversion value selection, printing, clock, storage |
| digital display | D1, D2, HV, HK, Hardness value, conversion value, load value, retention time, storage data |
| Camera device | Can be installed on the top of the instrument (camera: optional) |
| Microscope magnification | 100X (observation), 200x (measurement) |
| execution standard | JJG151-2006、GB/T4340、JISB-7734、ASTM E92、ISO 6507 |
| Test force holding time | 5~60s |
| Measurement unit | 0.1um |
| Maximum height of specimen | 160mm |
| Distance from the center of the indenter to the machine wall | 135mm |
| Power Supply | AC220V/50Hz |
| Dimension | 540*220*650mm |
| Weight | 45kg |
SMTMF MHVS-30 Touch screen digital display Vickers Hardness Tester Packing list
Whole machine X1, Vickers Hardness block X2, horizontal adjustment screw X4, XY platform X1, power cord X2, power cord X1, test bench X3, spare fuse (0.5A) X2, 10X micrometer eyepiece X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
