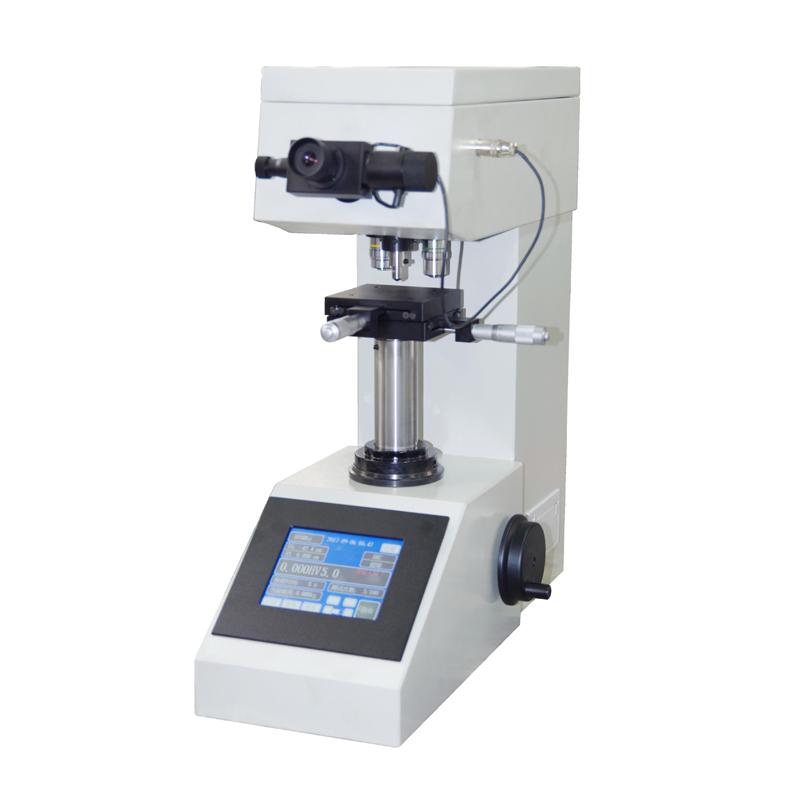

SMTMF MHVS-5AT touch screen automatic turret digital display Vickers Hardness Tester

Introduction

MHVS-5AT/10AT/30AT/50AT Automatic Turret Color Touch Screen Vickers Hardness Tester is a new type of Vickers Hardness Tester using precision mechanical technology and photoelectric technology, the Hardness Tester is suitable for measuring tiny, thin specimens, surface dipping parts, is a scientific research institutions, factories and quality inspection departments for research and testing of the core hardness testing instrument

The Vickers hardness test creates an indentation on the surface of a hardened steel specimen. Regardless of size, the shape of the indentation needs to be geometrically similar to the shape of the indentation, the indentation needs to have a well-defined boundary point that is easy to measure, and the indenter needs to be strong enough to resist its own deformation.

Features

●Touch screen display operation interface

●Force sensor, force feedback, closed-loop control system

●The test force can be increased or subtracted according to customer requirements

●Through the operation panel, the hardness scale HV or HK can be selected for each level of test force and load holding time

●The hardness value is displayed directly on the display

●The indenter and the objective lens are switched to each other, and the test point is automatically positioned accurately

●The strength of the measuring light source and the holding time of the test force can be adjusted by the software

● Built-in printer

●Camera computer operation (optional)

Whole machine X1, Vickers Hardness block X2, horizontal adjustment screw X4, XY platform X1, power cord X1, test bench X3, spare fuse (0.5A) X2, 10X micrometer eyepiece X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
