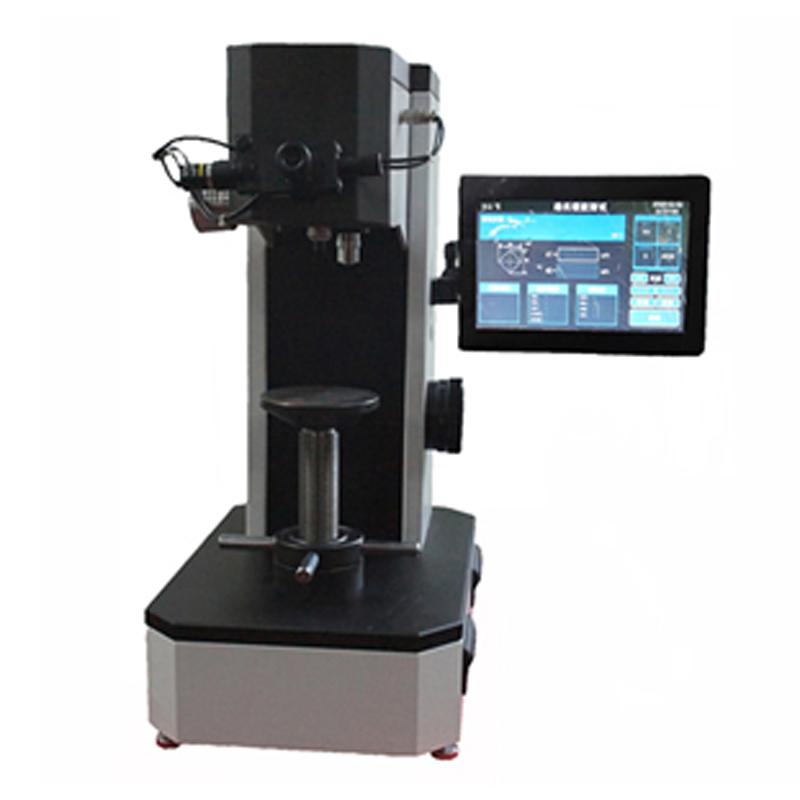

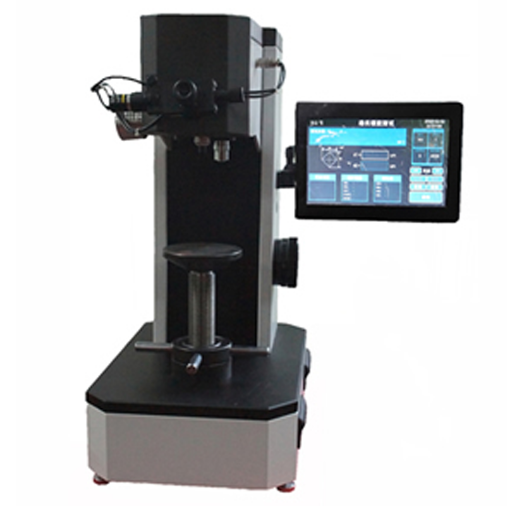

SMTMF JMHVS-50AT Precision digital display Vickers Hardness Tester 8 kinds of test force

Introduction

JMHVS-5AT/10AT/30AT/50AT precision digital display automatic turret Vickers Hardness Tester is a new generation of products. The unique head pressure down design, the Hardness Tester structure design is sturdy and durable, it is a Vickers Hardness Tester using precision mechanical technology and photoelectric technology, the machine is a full closed-loop vacant system, and the pressure sensor is the feedback unit.

Scope of application

Suitable for determination: steel, non-ferrous metals, IC wafers, thin plastics, metal foils, coatings, coatings, surface hardening layers, laminated metals, heat treatment effects, carburizing layer hardening depth, cemented carbide, ceramics, steel, non-ferrous metals, thin plates, metal foils, electroplating, miniature targets, welding joints or deposition layer hardness testing is a satisfactory hardness testing instrument for material research and testing by scientific research institutions, factories and quality supervision departments

Features

●The intensity of the measuring light source can be adjusted by pressing the button

●It has a mobile structure of the machine head, linear slide guide, and is driven by T-shaped screw rod and high-precision motor

●Fix the stage to reduce the coaxiality error caused by the screw moving up and down

●The measurement indentation is more stable

●The working platform has a large space, which can realize the measurement of large pieces and is suitable for replacing large working platforms

●Unique closed-loop control system, hardness testing is faster and more accurate

●Automatic conversion between indenter and objective lens

●And can preset the test force holding time,

●The software has a built-in hardness value conversion table

●Easy to use and high measurement accuracy

●The Hardness Tester can also be equipped with a photographic device according to the special requirements of the user, and can shoot the measured indentation and the metallographic structure of the material

Machine X1, horizontal adjustment screw X4, Vickers Hardness block X2, XY platform X1, spare light bulb X2, power cord X1, test bench X3, spare fuse (0.5A) X2, 10X micrometer eyepiece X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
