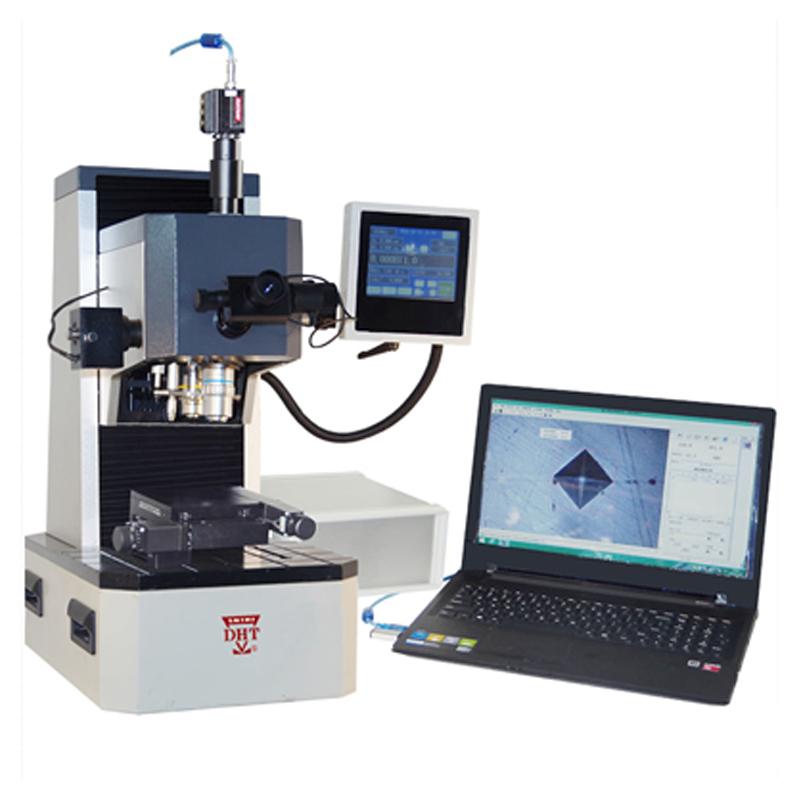

SMTMF JMHVS-XY Automatic precision Vickers Hardness Tester head mobile
SMTMF JMHVS-XY precision Vickers Hardness Tester with XY sample movement control, loading mode and path settings, is a closed-loop control Vickers Hardness Tester, JMHVS-XY precision Vickers Hardness Tester can measure steel, non-ferrous metals, IC wafer, thin plastic, metal foil, coated platings and other Hardness.
SMTMF
JMHVS-XY
-
LEEB W-20 Webster Hardness Tester measuring aluminum alloy, workpiece size thickness 0.4~ 6mm
$ 459.00 -
HBO HS-B digital display B type rubber Hardness Gauge peak mode automatic timing
$ 568.00 -
HBO LX-B type B rubber hardness gauge for medium Hardness materials
$ 176.00 -
DUBAN DB20-LX-T10 Spinning & weaving Hardness Gauge
$ 471.00 -
ShenyangTX W-B75b Wayer Hardness Tester for testing brass tubing with an inner diameter as small as 6mm
$ 1097.00
Introduction
JMHVS-XY Automatic Precision Vickers Hardness Tester Image Measurement System adopts the Vickers hardness measurement system developed by the integrated concept, which is mainly used for the microscopic Vickers hardness determination of various metals and some non-metallic materials, and can determine the hardness of various parts (machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals and hot post-treated parts, etc., and is also suitable for the determination of the depth of the effective hardening layer, the heat-affected part of the coating and weldments. It can also be used for the observation of the metallographic structure inside various metal parts and the collection, display and output of images. It is suitable for measuring the hardness gradient distribution curve of the workpiece and measuring the surface hardness of the gear after heat treatment, and the depth of the effective hardening layer
Scope of application
Suitable for determination: steel, non-ferrous metals, IC wafers, thin plastics, metal foils, coatings, coatings, surface hardening layers, laminated metals, heat treatment effects, carburizing layer hardening depth, cemented carbide, ceramics, steel, non-ferrous metals, thin plates, metal foils, electroplating, miniature targets, welding joints or deposition layer hardness testing is a satisfactory hardness testing instrument for material research and testing by scientific research institutions, factories and quality supervision departments
Features
●Closed-loop control system
●XY sample movement control: The system provides XY electric mobile sample stage; It can be controlled by software or adjusted manually; XY can move at the same time; XY can be fine-tuned with keyboard arrow keys to be exactly in place
● Loading mode and path setting: The system provides a variety of loading modes including along line, along edge angle, along curve edge angle, etc.; The coordinates of the loading point can be set arbitrarily
●Automatic Edge Scanning: Automatically scans along the edge of the sample and automatically finds inflection points such as tooth tops, tooth roots, etc
●Automatic loading, focusing and measurement: The system automatically loads, automatically adjusts and measures at multiple points according to the set loading mode, and automatically draws the hardening curve to complete it with one click
●Hardness value conversion, correction and effective verification: The system can convert the measured microscopic Vickers hardness value into other hardness values such as HB, HR, etc.; Corrections can be made to the measured values of spherical cylindrical samples; Valid verification of sample measurements
| Software configuration | |||
| name | quantity | name | quantity |
| XY motorized displacement table | 1 pc | XY stepper drive box | 1 pc |
| Power cord | 1 root | USB cable | 1 root |
| XY cable | 1 root | RS232 serial cable | 1 root |
| 1.3 million dedicated cameras | 1 pc | Software installation CD | 1 tablet |
| Dongle | 1 pc |

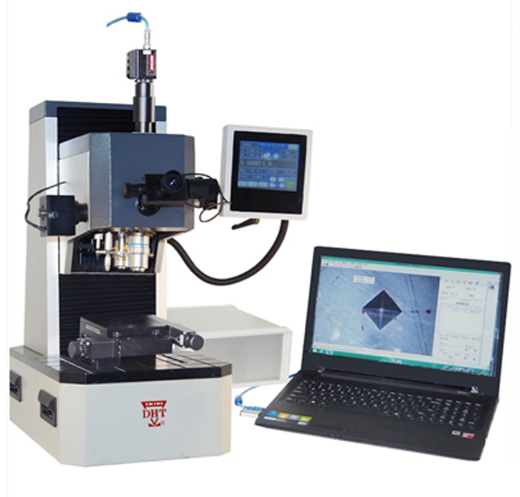

SMTMF JMHVS-XY Automatic precision Vickers Hardness Tester (head mobile)Specifications
| LIST | VALUE |
|---|---|
| optional test force | 1.96N (0.2Kgf), 4.9N (0.5Kgf), 9.8N (1Kgf), 19.6N (2Kgf) 29.4N (3Kgf), 49N (5Kgf), 98N (10kgf), 196N (20Kgf), 294.2N (30Kgf), 490N (50kgf) (optional 8 test forces, minimum test force within 5 kg 0.2kgf) |
| execution standard | GBT4340.1，GBT4340.2，ASTM_E92 |
| Test force application method | Automatic (loading, retaining, unloading) |
| XY sample stage and movement control | 1. XY stroke: 50mm * 50mm Table size: 110mmX110mm, displacement, repeability Accuracy < 2um; stroke and size can be customized |
| XY sample stage and movement control | 2. Automatic edge scanning: Automatically scan and draw the overall picture of the sample edge along the sample edge for loading path planning, suitable for Hardness measurement that needs to be at a specific location of the sample |
| XY sample stage and movement control | 3. XY traverse speed can be adjusted |
| XY sample stage and movement control | 4. You can press the arrow buttons or keyboard arrow keys, or move or lift by entering the moving distance, etc |
| Load mode and path settings | 1. Along the line; 2. Along the line with angle; 3. Free click; 4. Horizontal line; 5. Along the vertical line; 6. Multiple lines along the Linear dispersion; 7. Along the Linear dispersion matrix; 8. Arc; 9. Tooth center; 10. Tooth top parallel; 11. Automatically along the edge with angle; 12. Automatically along the edge matrix; 13. Center of circle. New modes can be customized to add |
| Automatic measurement | Automatic loading point by point according to the set loading path, automatic measurement indentation to calculate Hardness value, and automatically draw hardened Linear dispersion; one-click completion |
| Automatic measurement | 1. The minimum HV can be set, and the measurement will automatically stop after reaching this value. 2. After the measurement is completed, you can continue to add points of measurement on the original path. 3. The measurement image of each point is saved and can be used for final manual correction; only the mouse is needed to drag the indentation quadrilateral border when correcting, Hardness Measured value, statistics, and measurement albums are automatically updated |
| Camera and calibration management | 11,300 pixel USB2.0 CMOS dedicated to Microscope measurement camera (3 megapixel camera optional) 2. Hardness calibration block or calibration ruler can be used to calibrate the camera 3. In order to improve Measuring Accuracy, different test forces can be calibrated separately, and the system automatically loads |
| Hardness value conversion, correction, valid verification | 1. Hardness conversion: The measured Vickers Hardness value can be converted to other Hardness values such as HB, HR, etc. of the American standard, the national standard, or the German standard; 2. Hardness correction: The Measured value of the spherical or cylindrical surface sample can be corrected; 3. Effective verification: According to the measured Hardness value, calculate the minimum sample thickness, the distance between the test point and the edge of the sample, and the distance between the test point |
| data statistics | Automatically calculate the average, variance, Cp, Cpk and other statistics of Hardness |
| Hardened Linear dispersion | Automatically draw hardened Linear dispersion: 1. Automatically generate multiple hardened Linear dispersion in one measurement path or generate a single Linear dispersion by average; Automatically draw hardened Linear dispersion: 1. Automatically generate multiple hardened Linear dispersion in one measurement path or generate a single Linear dispersion by average; 2. Can draw hardened Linear dispersion diagram of HV to XY |
| Data storage | The original measurement data and images can be saved in the document for later recall and report; a file saves all the data of a measurement |
| test report | Automatically generate WORD or EXCEL document reports; report formats can be customized; standard formats include Hardness value per single measurement point, statistical value, indentation image, and hardened Linear dispersion, etc |
| Knoop Hardness | Can be set for Knoop Hardness measurement |
| fracture toughness | Can be set for measurement indentation fracture toughness |
| Other functions | Including image/video shooting, image processing, geometric measurement, document annotation, album management, and fixed-time printing; document annotation can input text, lists, and pictures on the image |
SMTMF JMHVS-XY Automatic precision Vickers Hardness Tester (head mobile) Packing list
The whole machine X1, XY electric displacement workbench X1, RS232 serial cable X1, software installation disc X1, power cable X1, dongle X1, USB cable X1, XY stepper drive box X1, XY cable X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
