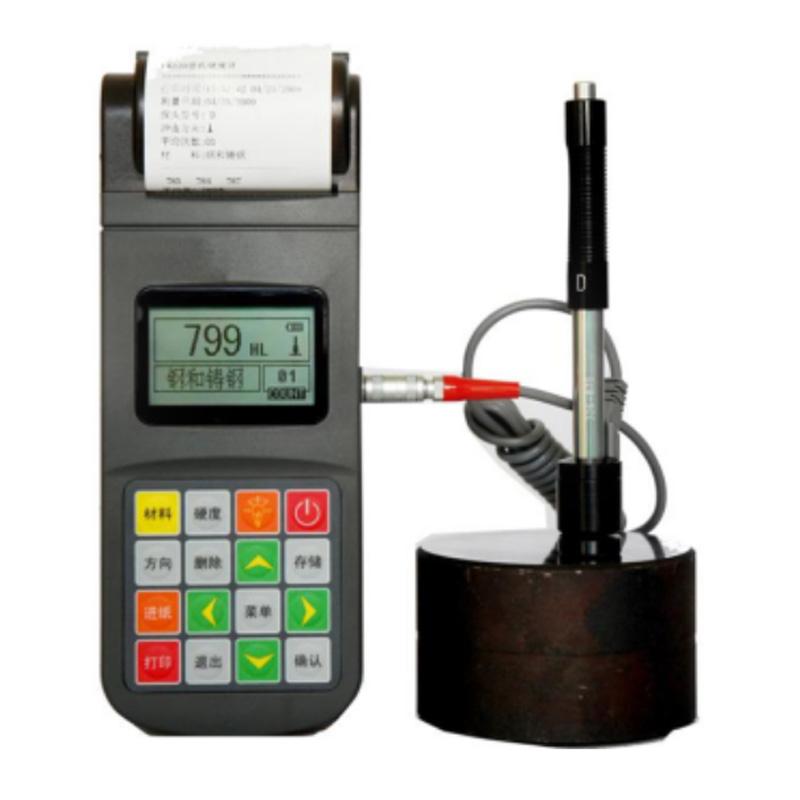

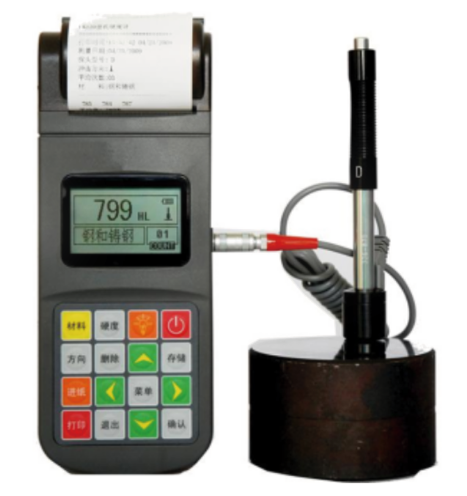

LUKE LK120 Portable Leeb Hardness Tester Measurement range 170~960HLD

Features

●According to the Leeb hardness measurement principle, a variety of metal materials can be tested.

●One main unit can be equipped with 7 different impact devices, which can automatically identify the type of impact device, and there is no need to recalibrate when replacing.

●Support "Steel" material, when testing "forged steel" specimens with D/DC impact device, the HB value can be directly read without manual table checking.

●The upper and lower limits of hardness value can be set in advance, and the automatic alarm will be given when the range is exceeded, which is convenient for users to test in batches.

●Large-screen 128×64 graphic dot matrix LCD display, rich in information and intuitive.

●Full Chinese display, menu-based operation, simple and convenient operation.

●There is EL backlight display, which is convenient to use in dimly lit environments.

●Large-capacity memory, which can store 373~2688 groups (32~1 impact times) of single measurement value, average value, measurement date, impact direction, times, material, hardness and other information.

●The thermal printer is integrated with the instrument, which works quietly and prints fast, and can print the test report on site.

●It has the function of software calibration.

●Built-in nickel-metal hydride rechargeable battery and charging control circuit, can work continuously for no less than 150 hours, and has power-saving functions such as automatic sleep and automatic shutdown.

●There is a residual power indicator icon on the LCD, which can display the remaining power of the battery in real time, and has a charging process indication, so that the operator can know the charging degree at any time.

●There is a USB interface, which can easily and quickly exchange data with the PC. It can be equipped with microcomputer software, which has rich functions such as transmission of measurement results, measurement value storage management, measurement statistical analysis, printing measurement report, batch setting of instrument parameters, etc., to meet the higher requirements of quality assurance and management.

●Dimensions: 210×89×35mm (main unit)

●Approximately 325 g (main unit)

●Ambient temperature: -10°C~50°C;

  Relative Humidity ≤ 90%;

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
