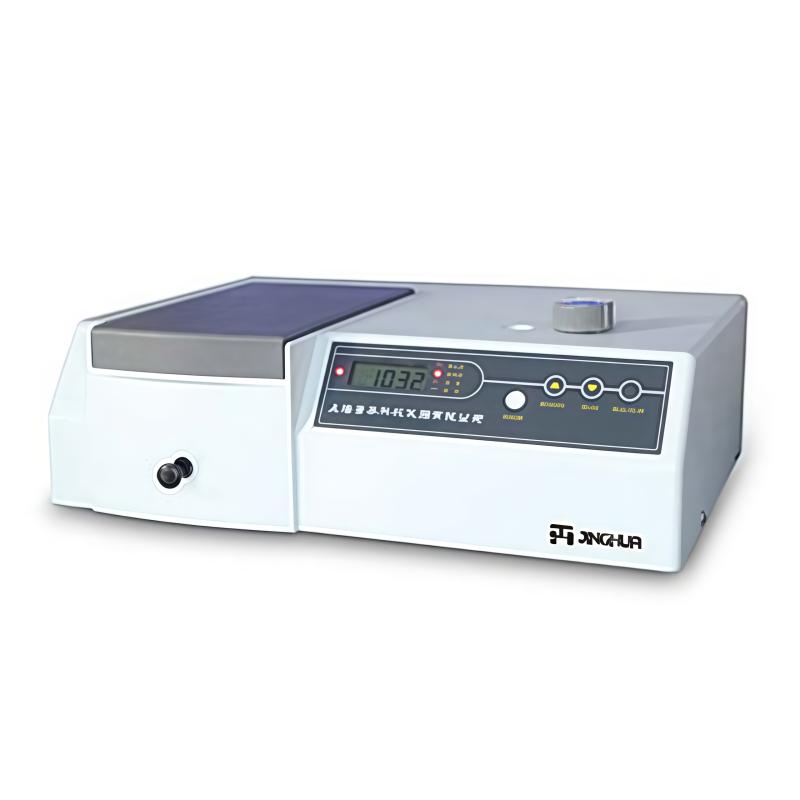

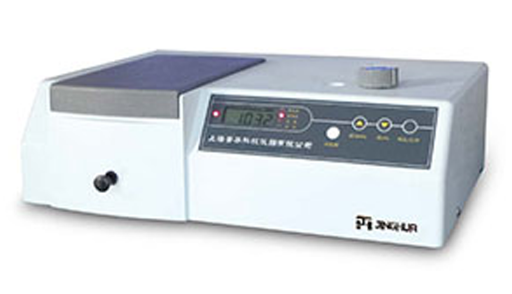

JINGHUA 7230G visible Spectrophotometer Wavelength range: 320~1000nm
JINGHUA visible Spectrophotometer , model 7230G, is a tungsten halogen light source Spectrophotometer , 7230G uses a single beam of light path, 7230G visible Spectrophotometer with printer.
jinghua
7230G
-
YUE FENG 723N visible Spectrophotometer with USB interface and PC software
$ 895.00 -
JINGHUA 756CRT UV-Visible Spectrophotometer Light spectrum
$ 4423.00 -
JINGQI FP640 Flame photometer
$ 912.00 -
YUEFENG FP6425 Flame photometer K/Ca
$ 1439.00 -
JINGHUA 723 Automatic visible spectrophotometer High performance, low stray light, automatic wavelength setting
$ 770.00
Features
The high-performance 1200L/mm photonic and C-T monochromator structure, coupled with imported tungsten lamp and high-sensitivity photoelectric converter, ensure that the instrument has high resolution, high-luminosity linearity and low stray light. The test accuracy and stability are improved.
The large sample chamber and the maximum sample holder of 100mm can be selected to meet the needs of different industries.
It has the functions of T, A, C, F etc.
Equipped with special analysis software, combined with external printers, it is convenient to meet the experimental requirements from multiple angles.
jinghua 7230G Visible Spectrophotometer Specifications
| LIST | VALUE |
|---|---|
| Light spectrum Bandwidth | 4nm |
| Wavelength range | 320~1000nm |
| Wavelength Precision | ±2nm |
| Wavelength Repeatability | 1nm |
| stray light | ≤0.1%T |
| Stability | ±0.001A/H |
| Interface | RS-232 interface |
| printout | Standard |
| analysis software | Standard |
| Transmittance Precision | ≤0.5%T |
| Transmittance Repeatability | 0.2%T |
| Measurement range of transmittance | 0~200%T |
| Absorption range | -0.301~3A |
| Display range of concentration | 0~99999 |
jinghua 7230G Visible Spectrophotometer Packing list
machine X1, printer X1, special software X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
