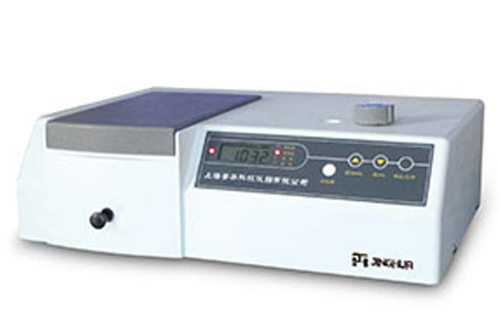

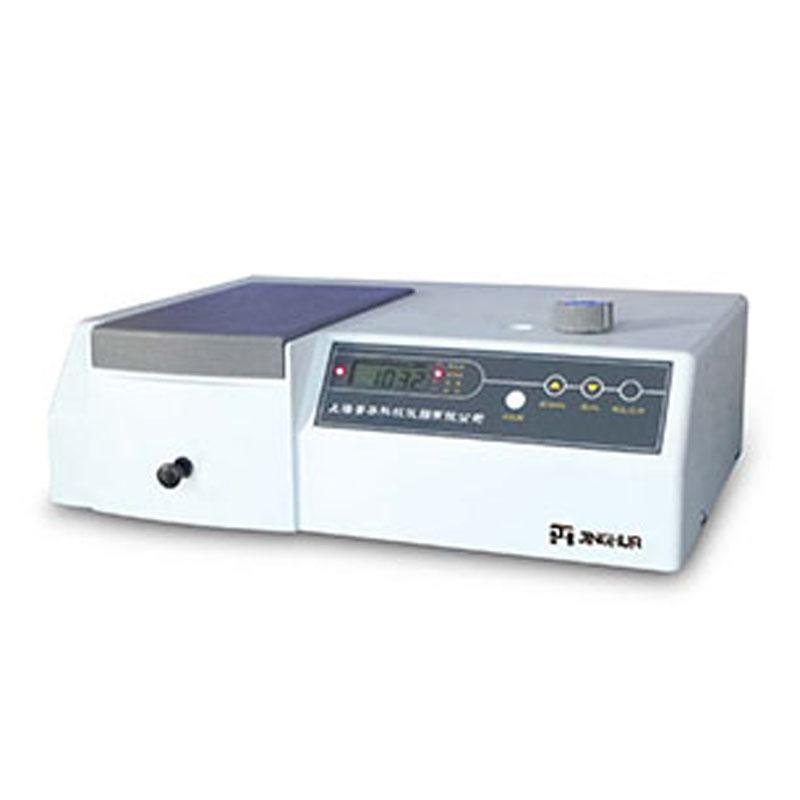

JINGHUA 754PC UV-Visible Spectrophotometer Wavelength range: 190~1100nm
JINGHUA 754PC UV-Visible Spectrophotometer Wavelength range is 190~1100nm, with automatic wavelength setting function, 754PC is a single beam of light type, is an ultraviolet-visible Spectrophotometer .
jinghua
754PC
-
YueFeng UV756 Ultraviolet-visible spectrophoto-meter with USB interface
$ 1252.00 -
YueFeng FSP6631 Flame Spectrophotometer Test Potassium/Sodium/Lithium
$ 2558.00 -
YueFeng FSP6650 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Calcium/Barium
$ 4268.00 -
YueFeng UV756 (PC) Ultraviolet-visible spectrophoto-meter with PC software
$ 1345.00 -
JINGHUA 759MC UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 3149.00
Features
It adopts 1200L/mm high-performance ultraviolet special grating, imported long-life deuterium/tungsten lamp, imported photoelectric converter, and professional C-T monochromator structure, so that the instrument has low stray light, high resolution and good photometric linearity.
The large sample chamber can be expanded to a 10 cm sample holder, thus expanding the testing range of the instrument.
Automatically set the wavelength, automatically adjust 0%T/100%T, and T/A without error conversion.
It has professional functions such as automatic correction of wavelength error and automatic switching of light source to ensure the test accuracy and continuity of the instrument.
The instrument has the functions of photometry, quantification, standard curve and so on
jinghua 754PC UV-Visible SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Light spectrum Bandwidth | 4nm |
| Wavelength range | 190~1100nm |
| Wavelength Precision | ±0.5nm |
| Wavelength Repeatability | 0.2nm |
| stray light | ≤0.05%T |
| Noise level | 0.0005A |
| Stability | ±0.001A/h |
| Baseline flatness | ±0.002A |
| Interface | RS-232 |
| analysis software | Standard |
| Transmittance Precision | ≤0.3%T |
| Transmittance Repeatability | 0.1%T |
| Measurement range of transmittance | 0~200%T |
| Absorption range | -0.4~4A |
| Display range of concentration | 0~99999 |
| Wavelength Drive | automatic |
| scan function | have |
| regression equation | have |
| dynamics | have |
| multi-wavelength | have |
| DNA/protein | have |
| dynamics | have |
jinghua 754PC UV-Visible Spectrophotometer Packing list
machine X1, software X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
