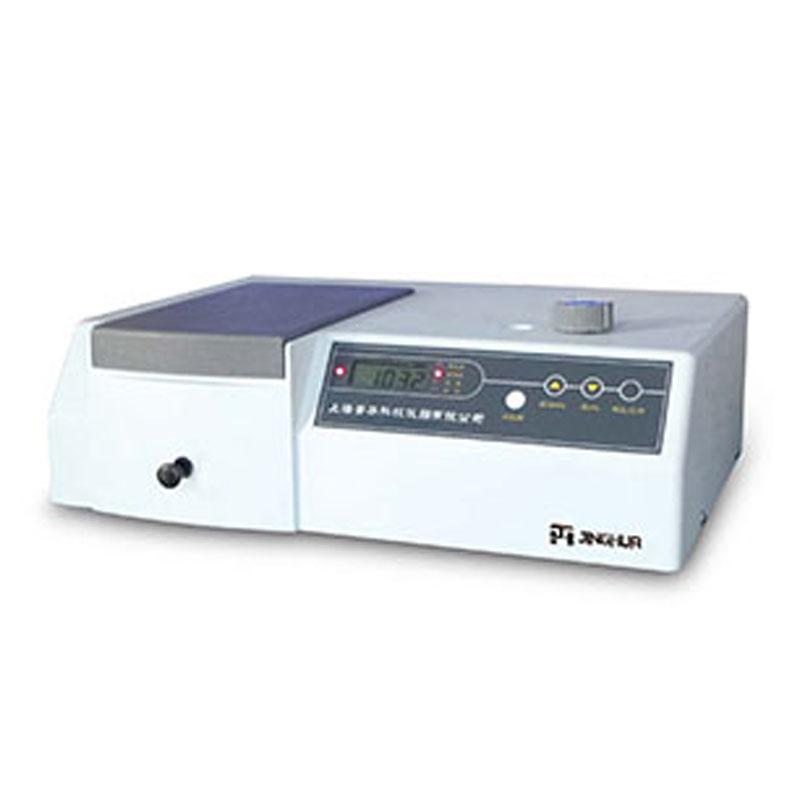

JINGHUA 755B Automatic UV-Visible Spectrophotometer High Performance Grating, Large Sample Chamber
1200L/mm high-performance ultraviolet special grating and imported tungsten lamp, Light spectrum Bandwidth 2nm, Wavelength Precision +/- 0.5nm. A 10cm Cuvette can be placed in a wide sample chamber, and the standard control method and standard coefficient method can be used to directly determine the concentration.
jinghua
755B (automatic)
-
JINGQI FP640 Flame photometer
$ 912.00 -
YueFeng FP640 Flame photometer K: 0.0~2.0mmol/L
$ 747.00 -
YueFeng UV759 (PC) Ultraviolet Spectrophotometer Wavelength: 190m~ 1100nm
$ 1345.00 -
JINGHUA 722S visible spectrophotometer high resolution low stray light, wide sample room
$ 343.00 -
JINGHUA 7600 Dual beam of light UV-Visible Spectrophotometer Wavelength Accuracy ： +/- 0.5nm
$ 4423.00
Features
It adopts 1200L/mm high-performance UV special grating, imported tungsten lamp, large-scale integrated digital circuit, and new monochromator structure to make the instrument more stable and reliable.
The large sample room can optionally accommodate a 10cm cuvette, which is particularly suitable for low-content analysis in water plants, power plants, and sugar plants.
The host machine not only has a photometric test function, but also has a fixed-position test function. It uses the standard substance control method and the standard coefficient method to directly measure the concentration of the sample.
This series of products has stable quality and high cost performance, and is a good model for laboratory equipment.
jinghua 755B (automatic) UV-Visible SpectrophotoMeterSpecifications
| LIST | VALUE |
|---|---|
| Light spectrum bandwidth | 2nm |
| Wavelength range | 190~1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | 0.2nm |
| stray light | ≤0.05%T |
| Noise level | 0.0005A |
| Stability | ±0.001A/h |
| Baseline flatness | ±0.002A |
| Interface | RS-232 |
| Transmittance Accuracy | ≤0.3%T |
| Transmittance Repeatability | 0.1%T |
| Transmittance range | 0~200%T |
| Absorption range | -0.4~4A |
| Display range of concentration | 0~99999 |
| Wavelength Drive | automatic |
| regression equation | have |
| dynamics | have |
jinghua 755B (automatic) UV-Visible SpectrophotoMeter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
