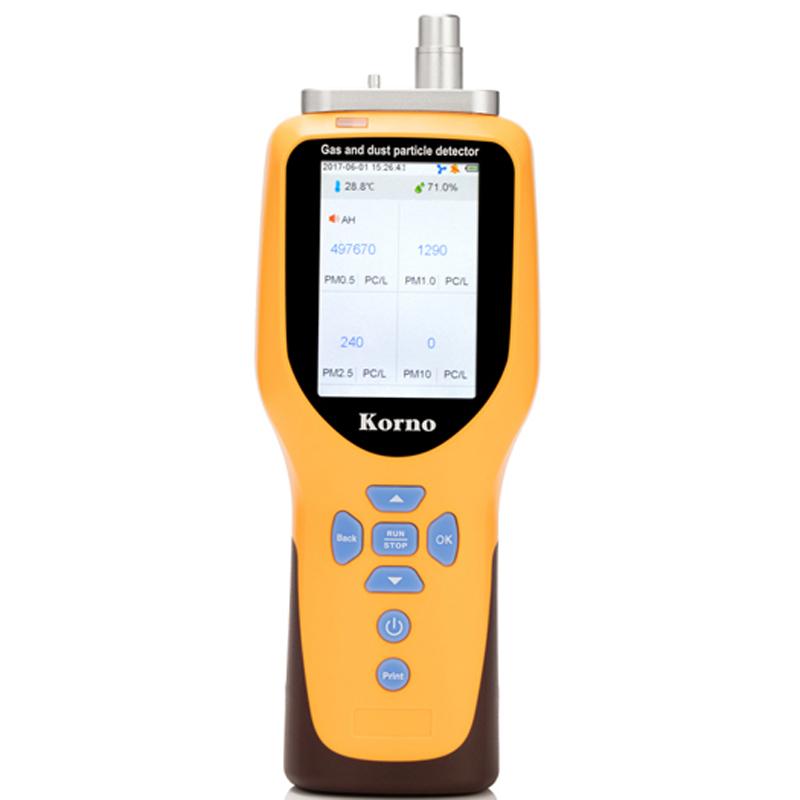

KORNO GT1000-PM-Y Laser Dust Particle Counter Meltblown Cloth Detector
KORNO GT1000-PM-Y Laser Dust Particle Counter can simultaneously measure 0.3/0, 1.0um, 2.5um, 10um particle sizes of meltblown cloth particle filtration efficiency detection instrument, GT1000-PM-Y Laser Dust Particle Counter adopts imported semiconductor laser diodes and Optical inspection Sensors, making GT1000-PM-Y Laser Dust Particle Counter Measurement accuracy is high, Stability and Repeatability are good.
KORNO
GT1000-PM-Y
-
BH-60-H2S Fixed Gas Detector 0~100ppm
$ 170.00 -
GUOYUGRA GY/VGD-200-C5H12-G high-precision pentane Gas Detector 0-2% Vol
$ 941.00 -
Empaer APEG-D-CH4 Volkswagen Series Stationary Methane Detector
$ 234.00 -
GUOYUGRA GY/VGD-200-C3H3N-G (0-20ppm) acrylonitrile Detector
$ 444.00 -
Empaer AATL-O3 (4G) Pathfinder Series Fixed Ozone Detector
$ 722.00
Introduction
The Korno GT1000-PM-Y laser dust particle counter is suitable for the penetration test of meltblown cloth particles of masks, and the filtration efficiency of meltblown cloth particles is detected.
It is suitable for the monitoring of dust particle concentration in various dust-free workshops, clean rooms, public environments and other places, and is the preferred choice of production and scientific research units such as biology, first-class equipment, beverage packaging, food, fine chemicals, atmospheric research, air purification and treatment, etc., using imported semiconductor laser diodes and imported optical sensors, with microcontroller technology, with fast response, high measurement accuracy, good stability and repeatability, and the performance of the whole machine is at the domestic (CN) professional level. The instrument can measure the number of dust particles of multiple particle sizes at the same time in a single sampling.
Features
KORNO GT1000-PM-Y Laser Dust Particle CounterSpecifications
| LIST | VALUE |
|---|---|
| Laser Light source | Semiconductor laser diode, lifetime > 100,000 hours |
| Particle size measurement | 0.3/0.5um、1.0um、2.5um、10um |
| Sensors principle | Optical inspection |
| overlap error | Less than 5% at 2,000,000 particles per cubic foot |
| Alarm mode | Custom quantity alarm value, Mass alarm value |
| Explosion-proof sign | Ex ia ⅡC T4 Ga |
| Protection level | IP65 |
| Interface | RS232-USB, 9600 baud rate |
| Shell material | ABS+PC |
| Operating temperature | 5~45℃ |
| Environmental humidity | 0~90% RH non-condensing |
| Power Supply | 4000mA rechargeable polymer battery |

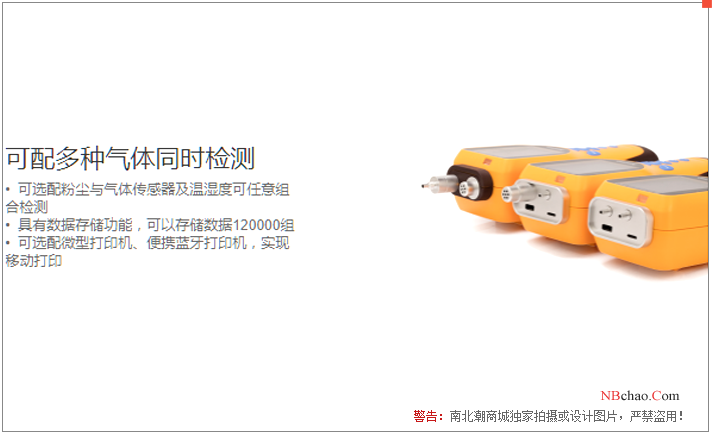

| Expansion gas | Supports 1-4 Gas Sensors |
| Humidity | Standard Humidity Sensors, Temperature range: -40~120 ℃, Humidity range: 0-100% RH |
| Dimension | 220*85*55mm |
| Weight | 0.5 Kg |
| Data storage | Real-time storage, Timer storage can be set; 120,000 groups of data can be stored |
| Verification standard | The counting report conforms to GB/T16292-1996 and ISO14644-1 standards |
KORNO GT1000-PM-Y Laser Dust Particle Counter Packing list
host X1, instrument case X1, USB charger X1, data cable X1, calibration cover X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
