KORNO GT-903-O2-Y Pump Suction Oxygen Detector, Range 0-30% Vol

Detect oxygen concentration, dust-proof design and water gas filtrate, equipped with dust Filter, built-in micro air pump, original imported high-precision Sensors, full software Automatic calibration, range 0-30% Vol.

Brand

SKU: NB016068

KORNO

Model

Price

$ 287.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

KORNO shopSE

Information

Datasheet RFQ Contract Video Catalog Catalog

What else did others buy

GUOYUGRA GY/VGD-200-PID-G Fixed PID Gas Detector 0-50ppm

$ 1128.00
Empaer SPES-CO2 Lone Walker series handheld carbon dioxide concentration Detector

$ 834.00
BH-60-SO2 Fixed SO2 Gas Detector 0~20ppm

$ 241.00
Empaer APEG-D-CH2O Volkswagen Series Fixed formaldehyde Detector

$ 556.00
GUOYUGRA GY/VGD-200-HCL-G (0-10ppm) Hydrogen Chloride Detector

$ 270.00

Genuinegoods

KORNO GT-903-O2-Y Oxygen DetectorOverview
Specifications
Comments
FAQs

GT-903-O2-Y

Oxygen Detector

Introduction

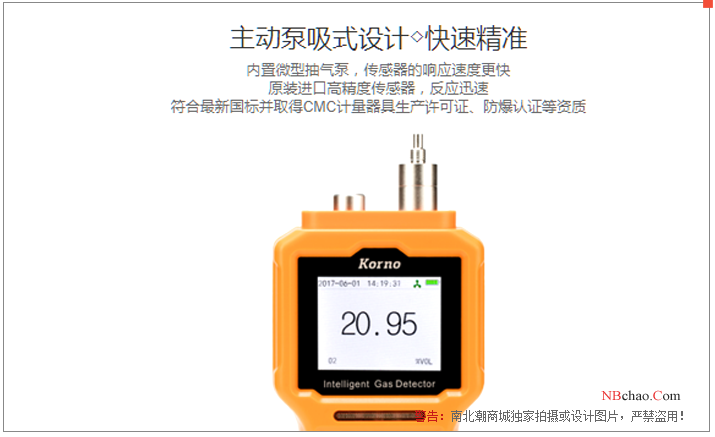

GT-903 pump-suction oxygen Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology , with fast response speed, high measurement accuracy, stability and repeatability Good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions

Features

KORNO GT-903-O2-Y Oxygen Detector

KORNO GT-903-O2-Y Oxygen Detector 2

KORNO GT-903-O2-Y Oxygen DetectorSpecifications

LIST	VALUE
Detection gas	Oxygen O2
range	0 ~ 30% vol
resolution	0.01% vol
Response time	T90≤20s
linearity error	≤±1%
Detection Accuracy	≤±3%
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Sexual repeability	≤±1%
Expansion gas	Supports 1-4 Sensors
Explosion-proof sign	CNEx16.0538
Protection class	IP65
Production license	Guangdong 00001052 (CMC metrology authentication)
temperature and humidity	Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method	Pump suction
data storage	Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature	-30~60℃
Environment humidity	0~95% RH non-condensing
Operating Pressure	-30 ~ 100Kpa
Power	4000mA Rechargeable Polymer Battery
Dimensions	1808555mm
Net Weight	0.5Kg
Execution standards	GB3836.1-2010、GB3836.4-2010
Optional range	0~1000、5000、10000、30000ppm、5%、30%、100%.Vol

KORNO GT-903-O2-Y Oxygen Detector Packing list

host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Does the GT-903 Gas detector have a real-time Linear dispersion map?

[A]

Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.

[Q]

Can this gas detector export measurement data?

[A]

Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.

[Q]

Does the oxygen detector meet the specifications of GB15322.1?

[A]

Model GT-903-O2-Y Oxygen Detector Compliant
