KORNO GT-903-H2-Y Hydrogen Detector, Range 0-500PPM
Pump suction sampling, detection of H2 concentration, range of 0-500PPM, Electrochemical sensor principle, with storage, data export, Temperature Humidity detection and other functions.
KORNO
GT-903-H2-Y
GT-903-CO-Y
GT-903-H2S-Y
GT-903-HCL-Y
GT-903-PH3-Y
GT-903-SO2-Y
GT-903-NOX-Y
GT-903-O3-Y
GT-903-CL2-Y
GT-903-TVOC-Y
GT-903-N2-Y
GT-903-O2-Y
-
GUOYUGRA GY/VGD-200-4M-G (H2S/NH3/O2/EX) Sewage Treatment Plant Online 4 in 1 Gas Detector
$ 655.00 -
GUOYUGRA GY/VGD-200-AsH3-G (0-1.000 ppm) hydrogen arsenide Detector
$ 692.00 -
Empaer AATL-O3 (Pump Suction) Pathfinder Series Fixed Ozone Detector
$ 1011.00 -
HUIRUIPU HRP-T1000-EX Combustible Gas Detector (no display with light)
$ 130.00 -
BOSEAN BH-90-PH3 phosphating hydrogen Gas Detector 0~20ppm
$ 226.00
Introduction

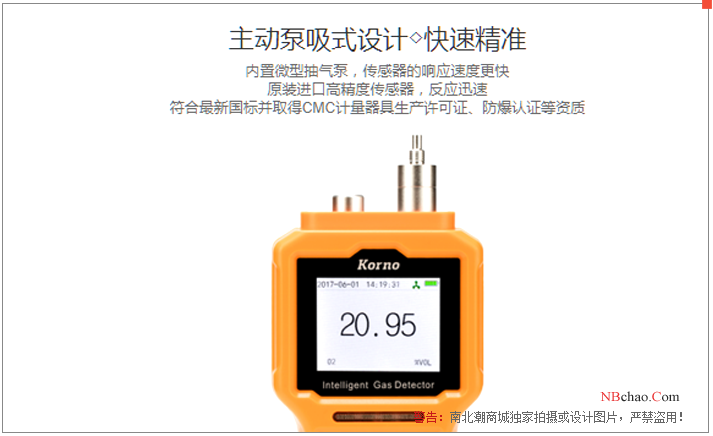

GT-903 pump suction hydrogen Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical/thermal conduction gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, stability and The repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.
Features
KORNO GT-903-H2-Y Hydrogen DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | H2 |
| Range | 0~500ppm |
| resolution | 0.1ppm |
| Response time | T90≤20s |
| Linearity | ≤±1% |
| detection Accuracy | ≤±3% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| recovery time | ≤20s |
| Repeatability | ≤±1% |
| expansion gas | Supports 1 to 5 Sensors |
| Explosion-proof sign | CNEx16.0537 |
| Protection level | IP65 |
| production license | Guangdong 00001052 (CMC metrology authentication) |
| Humidity | Optional accessories, temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH |
| Sampling method | pump suction |
| Data storage | Real-time storage, timed storage can be set; 120,000 groups of data can be stored |
| Operating temperature | -30~60℃ |
| Environmental humidity | 0~95% RH non-condensing |
| Operating Pressure | -30~100Kpa |

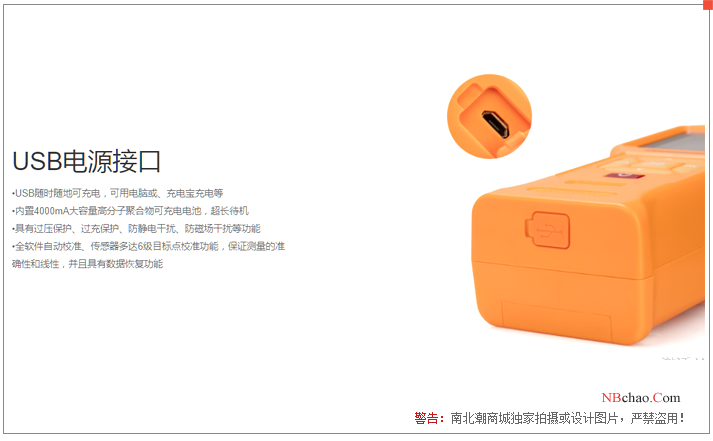

| Power Supply | 4000mA rechargeable polymer battery |
| Dimension | 212*85*70mm |
| Net Weight | 0.45Kg |
| execution standard | GB3836.1-2010、GB3836.4-2010 |
| optional range | 0~500、1000、5000、20000、40000、50000ppm |
| material | die casting aluminum |
| principle | Sensors detect the concentration of a particular gas and convert the signal into an electrical signal for analysis and display. |
| function | Monitor the concentration of specific gases in the environment in real time to ensure personnel safety and environment compliance. |
KORNO GT-903-H2-Y Hydrogen Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
