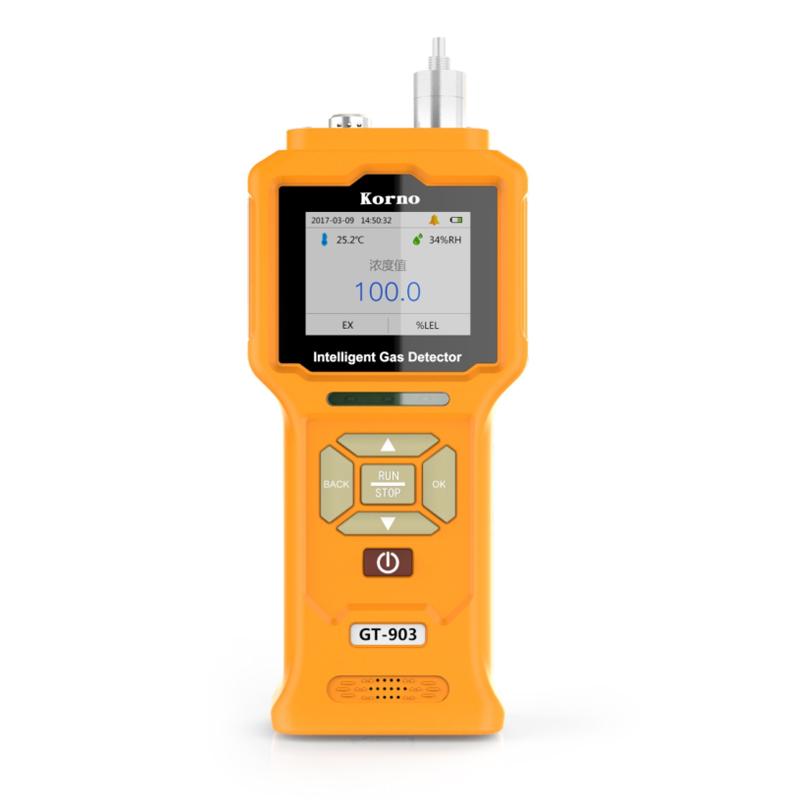

KORNO GT-903-NO-Y Pump suction nitric oxide Detector, measuring range 0-50PPM

Measurement range 0~50ppm, resolution 0.01ppm, detection accuracy ≤ +/- 3%.

Brand

SKU: NB016076

KORNO

Model

Price

$ 507.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

KORNO shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

KORNO GT-903-NO-Y Nitric oxide DetectorOverview
Specifications
Comments
FAQs

GT-903-NO-Y

Nitric oxide Detector

Measurement range 0~50ppm, resolution 0.01ppm, detection accuracy ≤ +/- 3%.

Introduction

GT-903 pump-suction nitric oxide Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported high-precision sensor/infrared absorption gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. , Good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features

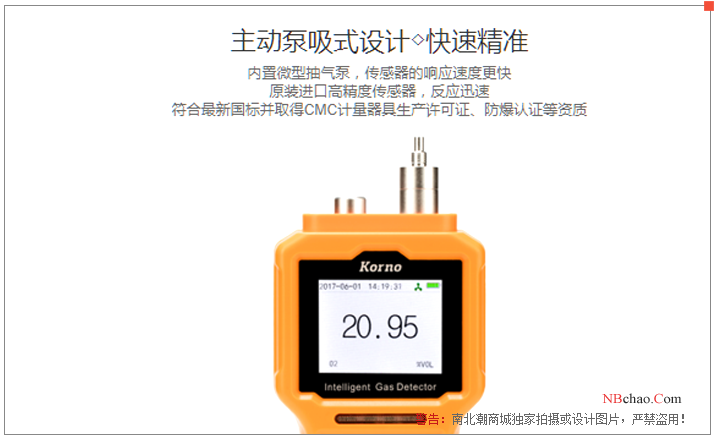

KORNO GT-903-NO-Y Nitric Oxide Detector 1

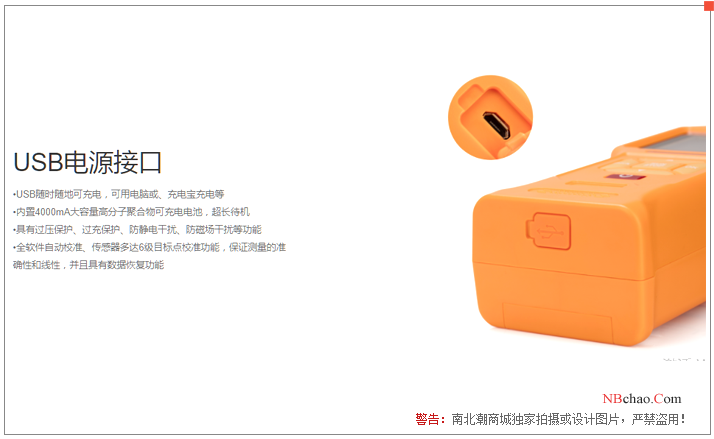

KORNO GT-903-NO-Y Nitric Oxide Detector 2

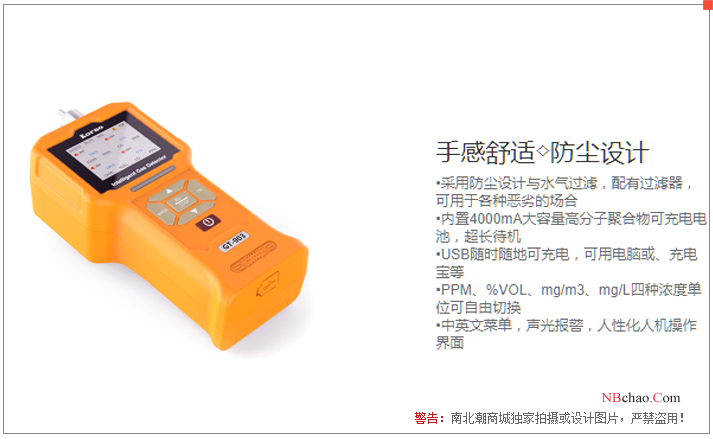

KORNO GT-903-NO-Y Nitric Oxide Detector 3

KORNO GT-903-NO-Y Nitric oxide DetectorSpecifications

LIST	VALUE
Detection gas	Nitric oxide NO
range	0~50ppm
resolution	0.01ppm
Response time	T90≤20s
linearity error	≤±1%
Detection Accuracy	≤±3%
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Sexual repeability	≤±1%
Expansion gas	Supports 1-4 Sensors
Explosion-proof sign	CNEx16.0538
Protection class	IP65
Production license	Guangdong 00001052 (CMC metrology authentication)
temperature and humidity	Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method	Pump suction
data storage	Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature	-30~60℃
Environment humidity	0~95% RH non-condensing
Operating Pressure	-30 ~ 100Kpa
Power	4000mA Rechargeable Polymer Battery
Dimensions	1808555mm
Net Weight	0.5Kg
Execution standards	GB3836.1-2010 、GB3836.4-2010
Optional range	0~50、100、250、500、1000、2000ppm

KORNO GT-903-NO-Y Nitric oxide Detector Packing list

host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Does the GT-903 Gas detector have a real-time Linear dispersion map?

[A]

Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.

[Q]

Can this gas detector export measurement data?

[A]

Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.

[Q]

Do you have the nitric oxide detector required by the GB3836.1 standard?

[A]

This GT-903-NO-Y nitric oxide detector will do.
